Magelis HMIGTO5315 Touch Screen Glass Protective Film

Magelis HMIGTO5315 Touch Screen Glass Protective Film

Detail Information

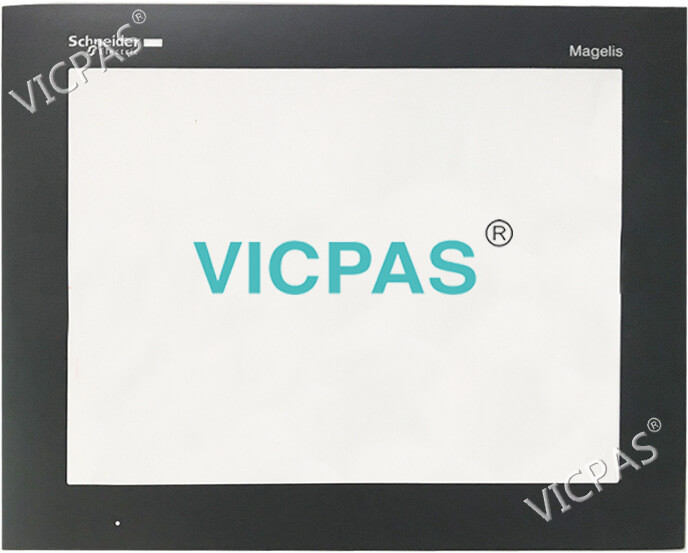

Schneider HMIGTO5315 HMI-GTO5315 Touch Screen Panel Glass Protective Film repair replacement

Order each part separately is available

Schneider Magelis HMIGTO5315 HMI-GTO5315 Touch Screen Panel

The HMIGTO5315 touchscreen can be used to repair the Schneider Magelis GTO MAGELiS terminals HMI touch. This HMI display type is backlit monochrome STN LCD, display size 10.4-inch, and the resolution is 640 x 480 pixels VGA of touch panel display.


The HMIGTO5315 panel has the following features on the front:
1. A touch screen for displaying synoptic views (10.4” color TFT)
2. A multicolor indicator (green, orange and red) showing the panel’s operatingmode.
3. A Stainless Steel frame, for food & beverage environments. Only this product


The Schneider terminals have the following features on the rear and underside:
1. A removable screw terminal block for the 24 V c power supply.
2. A type A USB host connector for connecting peripherals, transferring applications and Modicon M340 terminal port communication.
3. A mini-B USB connector for application transfer.
4. A 9-way male SUB-D connector for RS 232C serial link to PLCs (COM1).
5. An RJ45 connector for RS 485 serial link (COM2).
6. A slot for SD memory card, with hinged cover.
7. LED indicating presence of the SD memory card.
8. An RJ45 connector for Ethernet TCP/IP link, 10BASE-T/100BASE-TX with anactivity LED.



Specifications:

The table below describes the parameters of the HMIGTO5315 touchscreen protective film.

Part Number : HMIGTO5315
Product Line: Magelis GTO Series
Touchscreen Size: 10.4 in.
Warranty: 1-Year Warranty
Touch Technology: Resistive Film (analog)
Resolution: DC 5V 1mA
Operating Temp.: 1024 X 1024
Storage Temp.: -20℃~+70℃
lineation test: ≥1.000.000 times
Input Type: ≥100.000 times

PDF Download:

  • Magelis HMIGTO5315 User Manual and Product datasheet
  • Magelis GTO Advanced Panels Catalog PDF
  • MagelisHMI GTO for Vijeo DesignerUser Manual

  • Magelis GTO Series Part No.

    Magelis GTO Description Inventory status
    HMIGTO1300 3.5” QVGA TFT LCD screen In Stock
    HMIGTO1310 3.5” QVGA TFT LCD touchscreen In Stock
    HMIGTO2300 5.7” QVGA TFT LCD screen Available Now
    HMIGTO2310 5.7” QVGA TFT LCD touchscreen In Stock
    HMIGTO2315 5.7” QVGA TFT LCD touch panel Available Now
    HMIGTO3510 7.0” WVGA (Wide) TFT LCD screen In Stock
    HMIGTO4310 7.5” VGA TFT LCD screen Available Now
    HMIGTO5310 10.4” VGA TFT LCD screen In Stock
    HMIGTO5315 10.4” VGA TFT LCD touchscreen In Stock
    HMIGTO6310 12.1” SVGA TFT LCD screen Available Now
    HMIGTO6315 12.1” SVGA screen In Stock
    Schneider HMIGTO Description Inventory status

    Common misspellings:

    MIGTO5315

    HIGTO5315

    HMGTO5315

    HMIGTO535

    HMIGTO531
