2024 The Most Complete Eaton Micro Innovation Panel Accessories

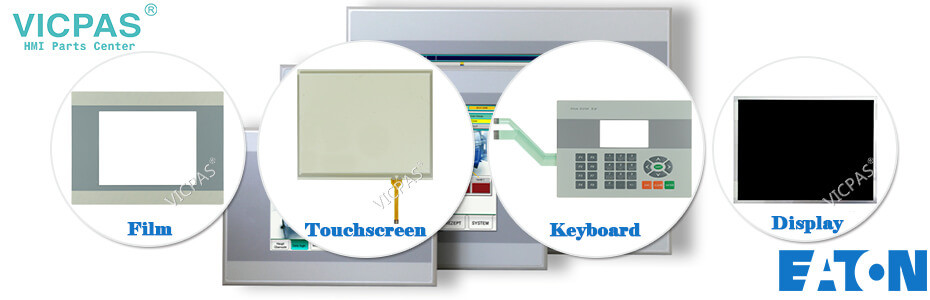

Touchscreen & Protective Film & Display & Keypad

What series does Eaton Micro Panel have?

Eaton Micro Panel HMI develops different series of HMIs for different industrial production scenarios. At present, include Micro Innovation XV100, Micro XV150 Panels, Mirco Innovation AG XV200, Mirco Panel XV300, Eaton XVS400 Panel, Eaton Micro XV400 HMI, XVM400 Mobile Panel.

The Eaton Micro Innovation XV100 HMI/PLC with touch display

Compact operator interface with lots of power

• Full graphical 3.5“, 5.7“ or 7“-Widescreen TFT display with resistive touch screen

• High performance 400MHz RISC-Processor for PLC applications

• Onboard memory of 128MB on demand expandable with a SD card

• Nominal installation depth

• Ethernet interface onboard, furthermore CAN, Profibus, RS232 or RS485 possible

• integrated gateway function

The 3 display sizes by comparison:In the display sizes 5.7“ and 7“ the XV100 devices are additionally equipped with an USB-Host and RS232 interface.

Eaton Micro XV150 HMI/PLC with touch display

Compact and rugged

The XV150 devices impress with the nominal installation depth, the rugged metal case and the comprehensive basic equipment:

• Display sizes 5,7“, 8,4“ and 10,4“

• Nominal installation depth

• Mounting compatible with XV400 devices

• USB-Host, Ethernet and RS232 interface onboard

• Communication interfaces onboard depending on the type: RS485, Profibus and CAN

• Rugged cast-aluminum housing for outdoor and indoor display

• Powerful protocol conversion with support for up to 20 simultaneous conversions across 300+ industrial protocols

• Real-time data logging provides historic visibility to support process improvements

• Web and FTP servers enable remote monitoring and control

• Variety of plug-in modules expand capabilities

• USB synchronization of database and log files

• Crimson 3.0 software for easy drag-and-drop programming

Micro Innovation AG XV200 HMI/PLC with touch display

The new XV200 touch display device series offers either a fully graphical 5.7“ FSTN monochrome display with 256 grayscales or a fully graphical 5.7“ color display with 256 colors, industrial resistive touch technology as well as a wide range of communication and network options. The touch-sensitive display ensures intuitive operation and visualization. Language-neutral and self-explanatory touch switches can be created to provide clearly designed operating screens. PLC functionality can be implemented on the XV200 devices if required. All devices come with an Ethernet and USB Device interface. Depending on the device type, CAN, Profibus (MPI/PPI/DP) or RS232 can be provided as additional interfaces.

Eaton XV300 HMI

The XV300 HMIs enhances the field of automation with contemporary control interfaces and command methods common in today’s touchscreen devices. High system performance and a powerful graphic processor allow user interfaces to be implemented, meeting and exceeding expectations with features like fast screen changes and integrated, multimedia elements. XV300 devices are equally suitable for use as HMI operator panels and as HMI-PLC units with integrated PLC functionality.

• • Sleek, tablet-like design with capacitive multi-touch technology (PCT)


• • High-resolution widescreen display sizes 7” (1024x600), 10.1” (1024x600) and 15.6” (1366x768); can also be set up in portrait mode


• • Heavy-duty, easy-to-clean front with toughened and anti-reflective glass


• • Powerful CPU: 800 MHz ARM Cortex-A9 with high-performance graphics processing unit


• • 1 GB internal memory, 120 KB retain memory for PLC, 512 MB RAM


• • SD card slot for memory extension, system operation from removable memory or for easy install of system updates


• • Two independent Ethernet interfaces to facilitate safe segregation of the control level and the function specific field level


• • Comprehensive interfaces (depending on device version): one or two Ethernet ports, USB host and USB device, CAN, RS-232, RS-485, SmartWire-DT, PROFIBUS-DP/MPI/PPI


• • XV300 devices 7” and 10.1” with rear mounting: control console mounting creates a flat surface with no edges, which meets strict hygienic requirements


• • A variety of certifications: CE, cUL, cUL Class1 Div2, ATEX Zone 22; for 15” units cUL in preparation


• • Maritime Classification Society: DNV-GL (Environmental Category C, EMC1); for 15” units DNV-GL in preparation


• • Combined with powerful Eaton HMI/PLC software (Galileo, XSOFT-CODESYS-3, Visual Designer)


• • PLC function with field bus interfaces such as CANopen, J1939, Ethernet/IP, EtherCAT, Modbus (TCP/RTU), SmartWire-DT and PROFIBUS-DP

Eaton Micro XVS400 HMI/PLC with touch display

Standard system with infra-red and resistive touch for worldwide use
Thanks to the extensive range of interfaces available onboard, the XVS400 compact devices can be adapted to the world‘s leading automation systems. The Profibus Master interface provided and the robust infra-red touch make the XVS devices highly flexible alternatives for the visualization and automation world. With versatile Ethernet and USB interfaces as well, these products offer the most advanced networking options. Devices with color screens and a screen diagonal of 5.7“ to 12.1“ are available. The integral IEC 61131-3 compliant PLC supports all the programming languages of the standard including structured text and sequential function chart for the optimum implementation of the control task.

XV400 HMI/PLC with touch display

The devices of the XV400 series offer a wide range of communication options. One or two optional communication modules, enabling eight communications at the same time, as well as CAN, Ethernet 10/100Mbit, USB Host, USB Device, RS232 directly onboard ensure maximum flexibility, whether as HMI, HMI-PLC, panel with gateway function or as a connection via Ethernet TCP/ IP to the control level. Onboard functions such as WEB browser, FTP server, remote client/ server or OPC client offer not only new networking options and programming options, they also provide customers and users with a considerable innovation edge for their automation solution.

Eaton XVM400 Mobile Panel

The control panel XVM400 is a portable display and operation panel for industrial applications. Already included in the delivery is the Galileo runtime. With this industrial proven visualization tool you can create in shortest time considerable sized and complex applications. Galileo is designed to work in every market segment and acts as an universal projecting environment for all Eaton Automation products. The Ethernet interface offers a high number of protocols to established control systems. Also the hardware is designed to cover any eventuality that comes up: A robust concept of the panel and patented display guarantees a save fall from a height of up to 1.5 m. Operation with the left and right hand, a good readable display, variable cable output, different holding possibilities, three-step acknowledgement button, integrated emergency stop and a further 31 buttons that can be accessed directly in Galileo guarantees a maximum of possibilities.

Eaton XVC100 HMI-PLC with text display

The XVC100 compact display PLC integrates an operator panel with text display and a powerful compact PLC in one device.

This device concept offers a wide range of automation and networking options. A fully-fledged compact PLC with digital and analog inputs and outputs is integrated behind the membrane keyboard with an 8 x 20 character display. The integrated CAN bus allows the connection of remote peripheral devices. All connectors can be accessed from the rear. The PLC is programmed in compliance with the IEC 61131-3 industrial standard, thus turning the XVC100 display PLC into a universal device for automation applications. A user-friendly PLC function library is available for the simple and efficient programming of visualization functions.

HMi Operator Interface

Positioned between the ELC graphics panels and the XV series of operator interfaces, HMi is the workhorse of the industry. Ideal for machinery OEMs, the HMi series provides the most value with the latest technology and advanced feature set in an economical hardware and software package. All units offer RS-232, RS-485 and RS-422 communications. The 4-, 7-, 8- and 10-inch units also offer Ethernet communication options.

Features

• ● Auto-scale application from 10 to 4 inches
• ● Screen and backlight saver
• ● Pop-up screens
• ● Animated graphics
• ● Conditional visibility
• ● Application lock for IP protection
• ● Data archiving
• ● Multi-language
• ● Eight levels of security
