B&R 5D5600.02 Provit 5600 Keypad Touchscreen

B&R 5D5600.02 Provit 5600 Keypad Touchscreen

B&R 5D5600.02 Provit 5600 Keypad Touchscreen
B&R 5D5600.02 Provit 5600 Keypad TouchscreenB&R 5D5600.02 Provit 5600 Keypad Touchscreen
CategoriesProvit 2000/5000
BrandVICPAS
Model5D5600.02
BrandB&R
Warranty1 Year VICPAS Warranty
ModelB&R Provit 5600 5D5600.02
ShippingDHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Size10.4 inch
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Update TimeDec 23,2024
Detail Information

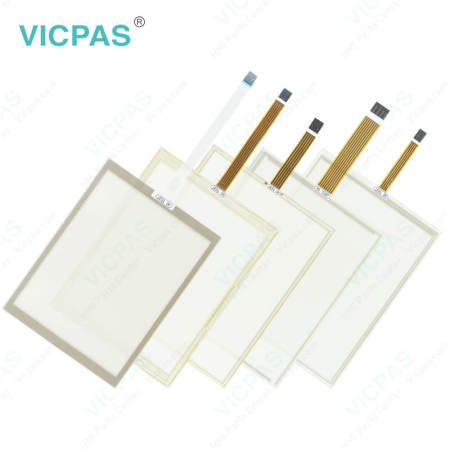

B&R Provit 5600 5D5600.02 Keyboard Membrane Touch Digitizer Glass

Order each part separately is available

Provit 5600 5D5600.02 Operator Panel Keypad Touch Panel
Provit 5600 5D5600.02 Operator Panel Keypad Touch Panel

It is possible to operate an B&R Provit 5600 5D5600.02 external graphics card in a PCI slot on the mainboard. If such a B&R Provit 5600 5D5600.02 card has been inserted, it is automatically recognized during the B&R Provit 5600 5D5600.02 start-up procedure and the onboard VGA controller automatically switches itself off. It is not possible to switch the B&R Provit 5600 5D5600.02 VGA controller on and off manually.


The B&R Provit 5600 5D5600-02 lithium battery (3 V, 950 mAh) keeps the B&R Provit 5600 5D5600.02 CMOS memory and real-time clock running when the supply voltage for the IPC has been switched off. The buffer duration of the battery is at least 4 years (at 50°C, 8.5 mA current requirements of the supplied components and a self-discharge of 40%). The reset button is accessible through a small hole near the external floppy disk drive interface. In order to avoid accidental activation, a B&R Provit 5600 5D5600-02 reset can only be triggered with a pointed object.



  Contact Best Price


Specifications:

The table below describes the parameters of the 5D5600.02 Provit 5600 Keyboard Membrane.

Part Number : 5D5600.02
Product Line:Provit 5600
Warranty: 365 Days Warranty
Input Power24 VDC
Display Type:TFT color
Mounting position: Vertical
Input Type: Keypad
Serial interface Type:RS232


Related Provit Series Part No. :

B&R Provit Description Inventory status
5D5200.01 B&R Provit 5200 Touch Screen Protective Film In Stock
5D520001 Provit 5200 B and R Touch Digitizer Glass Available Now
5D5201.02 B&R Provit 5200 HMI Touch Glass Repair In Stock
5D5210.01 Provit 5200 B and R HMI Touch Digitizer Glass Available Now
5D5211.02 Provit 5200 B and R Touch Screen Monitor In Stock
5D5500.10 B&R Provit 5500 Membrane Keyboard In Stock
5D5500.32 B&R Provit 5500 HMI Membrane Keypad Repair In Stock
5D5501.01 B and R Provit 5500 Membrane Keyboard Keypad Available Now
5D5510.10 B&R Provit 5500 Membrane Switch Repair Available Now
5D5600.01 Provit 5600 B&R Keyboard Membrane Replacement In Stock
5D5600.02 B and R Provit 5600 Terminal Keypad Touch Membrane In Stock
5D5600.03 Provit 5600 B and R Keypad Membrane Touch Panel Available Now
5D5201.03 B&R Provit 5200 Touch Screen Panel Repair In Stock
5D5211.03 Provit 5200 B and R Touch Screen Glass In Stock
B and R Provit Description Inventory status

FAQ:

Question: When does a B&R Provit 5600 5D5600.02 BIOS upgrade become necessary?

Answer: An Provit 5600 5D5600.02 upgrade might be necessary for several reasons:
• BIOS was destroyed or damaged and the IPC can no longer be booted.
• To upgrade functions implemented in BIOS Setup or to add new functions or components.
• To guarantee that the MTC function libraries run on Provit 5600 IPCs.


Question: How to change the B and R Provit 5600 5D5600.02 power supply?

Answer:
1. Disconnect the power supply.
2. Unlock fuse holders by turning the slotted bolt in the direction of arrow
How to change the B and R Provit 5600 5D5600.02 power supply?
3. Remove the fuse holder.
4. Remove the old fuse from the fuse holder.
5. Insert the new fuse.
6. Replace the fuse holder. It can be fastened by using a flat head screwdriver in the opposite direction of the arrow.
7. Reconnect the power supply.


Question: What measures can be taken against preventing after-image effect in Provit 5600 5D5600.02 LCD/TFT monitors?

Answer: There is no total solution; however, measures can be taken to significantly reduce this effect:
• Avoid static pictures or screen content
• Use screen savers (moving) when the display is not in use
• Frequent picture change
• Shut off the display when not in use
Turning off the background lighting (backlight) does not influence the prevention of the afterimage effect.

Common misspellings:

5D600.02

5D560.02

5D5600.o2

5D6500.02

5DD5600.02
