HMC3070A-M Touch Screen Monitor Protective Film Repair

HMC3070A-M Touch Screen Monitor Protective Film Repair

HMC3070A-M Touch Screen Monitor Protective Film Repair
CategoriesOther Weinview Series
BrandVICPAS
ModelHMC3070A-M
Warranty365 Days
Shipping2-4 workdays
BrandWeinview
Product LineHMC3000 Series
Supply PartsFront Overlay Touch Membrane
Size7''
Touch TypeResistive
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, T/T ,Credit Card, Western Union
Update TimeDec 23,2024
Detail Information

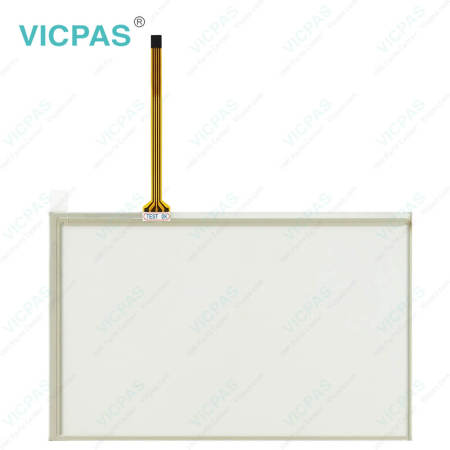

Weinview HMC3000 Series HMC3070A-M Touchscreen Front Overlay Replacement


Weinview HMC3000 Series HMC3070A-M Touch Panel Protective Film Repair

Precautions

Please observe the following precautions when installing the Weintek Weinview HMC3000 Series. Failure to comply with these restrictions could result in loss of life, serious personal injury, or HMC3070A-M Touch Screen Monitor Protective Film damage.
1. Do not operate the device in areas subject to explosion due to flammable gases, vapors, or dusts. It will also do harm to HMC3070A-M Touchscreen Front Overlay.
2. Do not connect the unit to an AC power source. You will cause permanent damage to it.
3. Do not attempt to use a DC power supply that does not meet the power requirements. You may cause malfunction or permanent damage.
4. Do not power the HMC with a DC power supply used for inductive loads or for input circuitry to the programmable logic controller. Severe voltage spikes caused by these devices may cause the damage to HMC3070A-M Protective Film Touch Screen Tablet.
5. Care should be taken when locating Weinview HMI HMC3070A-M Front Overlay MMI Panel Screen behind the device to ensure that AC power wiring, PLC output modules, contactors, starters, relay and any other source of electrical interference are located away from the unit. Particular care should be taken to locate variable speed drives and switching power supplies away from the HMC3000 Series.




Specifications:

The table below describes the parameters of the Weinview HMC3000 Series HMC3070A-M Touch Digitizer Front Overlay.

Operating Temperature: 32 ~ 122° F (0~50° C)
Protection: IP66
Enclosure: Plastic
Storage Temperature: -4 ~ 185° F (-20 ~ 85° C)
Light Transmission: Above 80%
Product Line: HMC3000 Series
Resolution: 800 x 480 Pixels
Display Type: 7'' WVGA TFT
Warranty: 365 Days
Brand: Weinview


Related Weinview HMI No. :

Weinview HMI Description Inventory status
HMC3070A-M Weinview HMC3000 Series Touchscreen Front Overlay Replacement In Stock
HMC3102A-M Weinview HMC3000 Series Protective Film Touch Digitizer Repair Available Now
MT505T MT505TV5 Weinview MT500 Series Front Overlay Touch Panel Replacement In Stock
MT506 MT506L MT506T MT506TV Weinview MT500 Series MMI Panel Screen Protective Film Repair Available Now
MT506LV MT506LV4CN MT506S MT506MV Weinview MT500 Series Front Overlay Touch Membrane Replacement In Stock
MT506LV4 MT506MV4 MT506TE MT506SE Weinview MT500 Series HMI Touch Glass Protective Film Repair Available Now
MT506M MT506MV5WV Weinview MT500 Series Touch Screen Monitor Front Overlay Replacement In Stock
MT506MV46GWV MT506SV4CN MT506SV45EV Weinview MT500 Series Protective Film Touch Screen Tablet Repair Available Now
MT508S MT508SV45WV MT508SV3CN MT508SV4CN Weinview MT500 Series Touch Screen Film Front Overlay Replacement In Stock
MT508T Weinview MT500 Series Protective Film Touch Membrane Replacement In Stock
MT508TE Weinview MT500 Series Front Overlay Touch Screen Glass Repair Available Now
Weinview HMI Description Inventory status

Weinview HMI Manuals PDF Download:

  • HMC3070A-M Datasheet.pdf
  • HMC3102A-M Datasheet.pdf
  • HMC3102A-M quick start guide.pdf
  • hmc-series-installation-guide.pdf

  • FAQ:

    Question: How can I protect the Weinview HMC3070A-M Touch Screen Film Front Overlay?

    Answer:
    • Avoid Direct Sunlight: Keep the touch screen out of prolonged exposure to direct sunlight, which can cause overheating and degrade the screen material over time.
    • Moisture Protection: Ensure the device is stored in a dry environment. High humidity or condensation can lead to damage, including electrical short circuits and screen malfunction.


    Question: What should I pay attention to during mounting the Weinview HMC3000 Series HMC3070A-M Touch Screen Tablet Protective Film?

    Answer:
    1. Install the equipment in an environment free from excessive humidity, dust, or extreme temperatures, as these conditions can affect the device's reliability.
    2. Provide sufficient ventilation around the device to prevent overheating. Ensure that airflow is not blocked by surrounding objects.
