ITC1500 V3 6AV6646-1BA16-0NA1 Touchpad Repair
![ITC1500 V3 6AV6646-1BA16-0NA1 Touchpad Repair](https://icdn.tradew.com/file/201606/1569362/jpg/8116795.jpg?x-oss-process=image/resize,m_pad,l_450/quality,Q_90)
![ITC1500 V3 6AV6646-1BA16-0NA1 Touchpad Repair](https://icdn.tradew.com/file/201606/1569362/jpg/8116795.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![ITC1500 V3 6AV6646-1BA16-0NA1 Touchpad Repair](https://icdn.tradew.com/file/201606/1569362/jpg/8116791.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![ITC1500 V3 6AV6646-1BA16-0NA1 Touchpad Repair](https://icdn.tradew.com/file/201606/1569362/jpg/8116796.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![ITC1500 V3 6AV6646-1BA16-0NA1 Touchpad Repair](https://icdn.tradew.com/file/201606/1569362/jpg/8116790.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![ITC1500 V3 6AV6646-1BA16-0NA1 Touchpad Repair](https://icdn.tradew.com/file/201606/1569362/jpg/8116794.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)

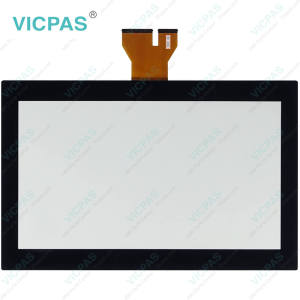

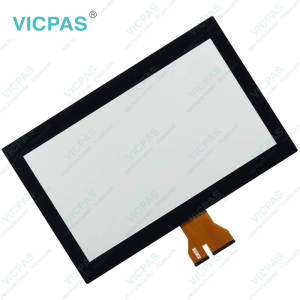

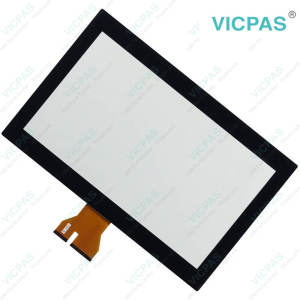

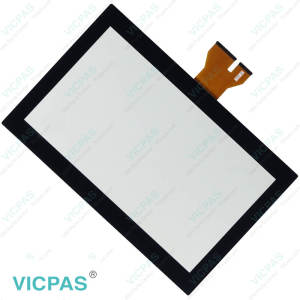

SIMATIC ITC1500 V3 6AV6646-1BA16-0NA1 Touch Screen Display Replacement
![SIMATIC ITC1500 V3 6AV6646-1BA16-0NA1 Touch Screen Glass Repair Replacement SIMATIC ITC1500 V3 6AV6646-1BA16-0NA1 Touch Screen Panel Repair Replacement](https://icdn.tradew.com/file/201606/1569362/jpg/8116798.jpg)
Functions of the 6AV6 646-1BA16-0NA1 capacitive multi-touch screen
General functions
● Detection of up to 5 finger touches at a time.
● Recognition of the gestures supported by the operating system and the runtime software.
● You do not need to calibrate the 6AV6646-1BA16-0NA1 Touch Panel HMI capacitive multi-touch screen.
Security functions in an industrial environment
The 6AV66461BA160NA1 capacitive multi-touch screen is locked for security reasons when the following disturbances occur:
● There is a conductive liquid on the SIMATIC ITC1500 V3 6AV6646-1BA16-0NA1 touch screen with ground contact via the enclosure or the operator, for example.
● An electromagnetic disturbance that exceeds the specification in the technical data of the device exerts an influence.
Once the interference is over, the 6AV66461BA160NA1 Touch Screen Terminal capacitive multi-touch screen is no longer locked.
VICPAS supply SIMATIC ITC1500 V3 6AV6646-1BA16-0NA1 Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the SIMATIC SIMATIC ITC1500 V3 6AV6 646-1BA16-0NA1 Touch Panel HMI Parts.
Ambient Humidity: | 10 to 90 % RH |
Display Type: | TFT Display |
Brand: | Siemens |
Warranty: | 365 Days |
Display Colors: | Up to 16.7 million |
Part Number: | 6AV6646-1BA16-0NA1 |
Product Line: | SIMATIC ITC1500 V3 |
Backlight: | LED |
Storage Temperature: | -20°C (-4°F) to 60°C (140°F) |
Touch Type: | Capacitive |
Related SIMATIC HMI ITC1500 Series HMI Part No. :
SIMATIC ITC1500 HMI | Description | Inventory status |
6AV6646-1BA15-0AA0 | SIEMENS HMI ITC1500 V3 Series Touch Membrane Repair | In Stock |
6AV6646-1BA15-0AA1 | SIMATIC HMI ITC1500 V3 Series Touch Glass Replacement | In Stock |
6AV6646-1BA15-0NA0 | SIEMENS HMI ITC1500 V3 Series Touch Digitizer Glass Repair | Available Now |
6AV6646-1BA15-0NA1 | SIMATIC HMI ITC1500 V3 Series MMI Panel Screen Replacement | Available Now |
6AV6646-1BA16-0AA1 | SIMATIC HMI ITC1500 V3 Series Touch Screen Monitor Repair | In Stock |
6AV6646-1BA16-0NA1 | SIMATIC HMI ITC1500 V3 Series MMI Touch Screen Replacement | In Stock |
6AV6646-1BB15-0AA0 | SIMATIC HMI ITC1500 V3 PRO Series HMI Touch Screen Panel Repair | Available Now |
6AV6646-1BB15-0NA0 | SIMATIC HMI ITC1500 V3 PRO Series Touch Screen Display Repair | In Stock |
6AV6646-1BC15-0AA0 | SIMATIC HMI ITC1500 V3 PRO Series Touch Screen Glass Replacement | Available Now |
6AV6646-1BC15-0NA0 | SIMATIC HMI ITC1500 V3 PRO Series Touch Screen Tablet Repair | In Stock |
SIMATIC ITC1500 HMI | Description | Inventory status |
SIMATIC ITC1500 V3 HMI Manuals PDF Download:
FAQ:
Question: What is the display size of SIMATIC ITC1500 V3 6AV6646-1BA16-0NA1 Touch Digitizer Glass?
Answer: The 6AV66461BA160NA1 Protective Film HMI Panel Glass is 15 inch.
Question: How to remove the 6AV6 646-1BA16-0NA1 device?
Answer: Proceed as follows:
1. If a project is running on the HMI device, close the project with the HMI device configured for this purpose. Wait until the Control Panel is displayed.
2. Switch off power to the 6AV6646-1BA16-0NA1 Front Overlay Touch Screen Monitor HMI device.
3. When you use the HMI device in a hazardous area, make sure that one of the two following requirements is met: The area is no longer hazardous or the device and its plugin connections are de-energized.
4. Remove all cable ties on the HMI device used for strain relief.
5. Remove all plug-in connectors and the equipotential bonding cable from the HMI device.
6. Secure the HMI device so that it cannot fall out of the mounting cutout.
7. Loosen the screws of the mounting clips and remove all mounting clips.
8. Take the 6AV6 646-1BA16-0NA1 Touch Digitizer Glass Protective Film HMI device out of the mounting cutout.
Common misspellings:
6AV6646-1BA1-0NA16AV6646-1BA16-0NA11
6AV66416-1BA16-0NA1
6AV46461BA16-0NA1
6AV6646-1BA16--0NA1
