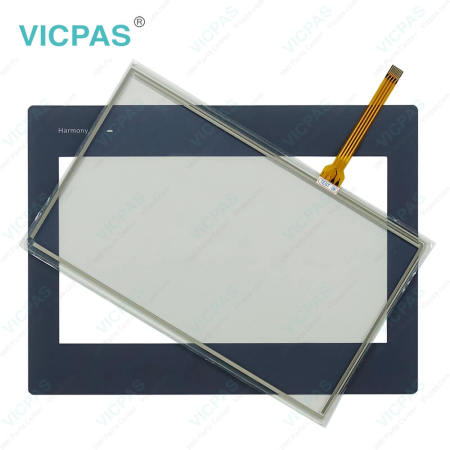

HMIET6501 Protective Film Touch Screen Panel Repair

HMIET6501 Protective Film Touch Screen Panel Repair

HMIET6501 Protective Film Touch Screen Panel Repair
HMIET6501 Protective Film Touch Screen Panel RepairHMIET6501 Protective Film Touch Screen Panel RepairHMIET6501 Protective Film Touch Screen Panel Repair
CategoriesFor Schneider Touch Screen Repair
BrandVICPAS
ModelHMIET6501
BrandSchneider
Warranty365 Days
Product LineSchneider Easy Harmony ET6 series
SupplyTouch Panel Front Overlay
Size10.1 inch
ModelSchneider HMIET6501
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download
Update TimeDec 23,2024
Detail Information

Schneider Easy Harmony ET6 HMIET6501 Protective Film Touch Digitizer Glass Replacement

Order each part separately is available

Schneider Easy Harmony ET6 HMIET6501 Front Overlay Touch Digitizer Glass Repair Kit

The front face of Schneider Easy Harmony ET6 HMIET6501, installed in a solid panel, has been tested using conditions equivalent to the standards shown in the specification. Even though Easy Harmony ET6 HMIET6501 Touch screen panel glass protective film HMI product's level of resistance is equivalent to these standards, oils that should have no effect on Easy Harmony ET6 HMIET6501 front overlay hmi panel glass product can possibly harm Easy Harmony ET6 HMIET6501 Touch digitizer protective film product. Easy Harmony ET6 HMIET6501 Touchscreen panel front overlay terminal can occur in areas where either vaporized oils are present, or where low viscosity cutting oils are allowed to adhere to Easy Harmony ET6 HMIET6501 touch panel overlay product for long periods of time. If Easy Harmony ET6 HMIET6501 product's front face protection sheet peels off, these conditions can lead to the ingress of oil into Easy Harmony ET6 product and separate protection measures are suggested.


Also, if non-approved oils are present, Easy Harmony ET6 HMIET6501 may cause deformation or corrosion of the front panel's cover. Therefore, prior to installing this product, be sure to confirm the type of conditions that will be present in this Easy Harmony ET6 HMIET6501 product's operating environment. If the installation gasket is used for a long period of time, or if this product and its gasket are removed from the panel, the original level of protection cannot be kept. To maintain the original protection level, be sure to replace the installation gasket regularly. VICPAS supply HMIET6501 Easy Harmony ET6 Schneider Terminal Front Overlay Touch screen glass with 365 Days warranty and support Urgent Worldwide Shipping.





Specifications:

The table below describes the parameters of the HMIET6501 Easy Harmony ET6 Schneider Front Overlay Touch Screen Panel.

Part Number: HMIET6501
Display Device: Colour TFT LCD
Screen Diagonal: 10.1 inch
Warranty: 365 Days
Product Line: Easy Harmony ET6
Rated Voltage: 24 V DC (+/- 20 %)
Operating Temp.: 0…50 °C
Storage Temp.: -20…60 °C
Operating Altitude: 2000 m
Display Colour: 16 million colours


Related Schneider Easy Harmony ET6 Series Part No. :

Easy Harmony ET6 Description Inventory status
HMIET6400 Schneider Easy Harmony ET6 Touch Screen Protective Film Repair In Stock
HMIET6401 Easy Harmony ET6 Schneider Touch Panel Front Overlay Replacement Available Now
HMIET6500 Schneider Easy Harmony ET6 Touchscreen Protective Film Repair In Stock
HMIET6501 Easy Harmony ET6 Schneider HMI Touch Screen Glass Protective Film Available Now
HMIET6600 Schneider Easy Harmony ET6 Touch Screen Panel Front Overlay Repair In Stock
HMIET6700 Schneider Easy Harmony ET6 Front Overlay Touch Membrane Repair In Stock
Easy Harmony ET6 Description Inventory status


Schneider Easy Harmony ET6 HMI Manuals PDF Download:

  • Catalog Easy Harmony ET6
  • Easy Harmony ET6 HMI Product Environmental Profile
  • Easy Harmony ET6 User Manual
  • Easy Harmony ET6 User Manual
  • Product End of Life Instructions Easy Harmony ET6 HMI

  • FAQ:

    Question: How to replace the HMIET6501 Installation Gasket?

    Answer:
    1. Place this product on a flat, level surface, with the display face pointing down.
    2. Remove the gasket from this product.
    3. Attach the new gasket to this product. Insert the protrusions from the four corners of the gasket into the corresponding holes in the corners of this product.
    Depending on your model, there may be additional protrusions. In the following, refer to the figure on the right and insert the protrusions accordingly.
    NOTE: When using a tool to insert the gasket, make sure the tool does not catch the rubber gasket and cause a tear.
    How to replace the HMIET6501 Installation Gasket?


    Question: When an alarm appears on the Schneider HMIET6501 Protective Film Touch Panel Glass Terminal, what does it mean?

    Answer:

    • The ALARM indicator light flashes. The alarm is stored in the alarm list. The alarm can be acknowledged by the operator directly on the application page by pressing the ENTER key or for touchscreen terminals.
    • The alarm relay is closed (if this function is selected).
    • The alarm strip is updated.


    Common misspellings:

    HMIET501
    HMIET650
    HMITE6501
    HM1ET6501
    HMIET65O1
    HMIEET6501
