Quick Service for Full HMI Parts Replacement
Home / All / for Siemens / SINUMERIK Operator Panel /

Keypad Membrane for Siemens Handheld Unit 6FX2007-1AE04

Keypad Membrane for Siemens Handheld Unit 6FX2007-1AE04

Keypad Membrane for Siemens Handheld Unit 6FX2007-1AE04
Keypad Membrane for Siemens Handheld Unit 6FX2007-1AE04Keypad Membrane for Siemens Handheld Unit 6FX2007-1AE04Keypad Membrane for Siemens Handheld Unit 6FX2007-1AE04Keypad Membrane for Siemens Handheld Unit 6FX2007-1AE04Keypad Membrane for Siemens Handheld Unit 6FX2007-1AE04
CategoriesSINUMERIK Operator Panel
BrandVICPAS
Model6FX2007-1AE04 Mini Handheld Unit
Keypad Button MaterialMetal
Membrane MaterialPlastic
ApplicationIndustry Equipment
Place of OriginChina
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, T/T ,Credit Card, Western Union
Update TimeDec 26,2024
Detail Information

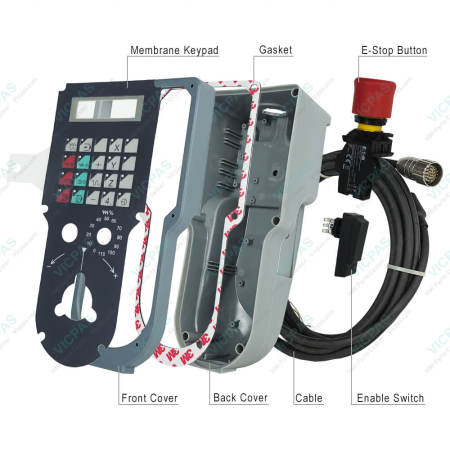

6FX2007-1AE04 Siemens SINUMERIK HMI Mini Handheld Unit OPERATOR PANEL Operator Panel Keypad, Screws, Cables, E-Stop Button, Enabling Controller Switch, Plastic Enclosures and Gasket Repair

Order each part separately is available

6FX2007-1AE04 Siemens SINUMERIK HMI Mini HHU OPERATOR PANEL Terminal Keypad, Cables, E-Stop Button, Enabling Controller Switch, Front Case, Back Covers, Gasket and Screws Repair Replacement

Overview of Handheld Unit 6FX2007-1AE04 Operator Keyboard
This encoder generates signals which correspond to the movements of the handwheel as it is turned. The axis selected via the control can be positioned paraxially. The handwheels of 6FX2007-1AE04 Terminal Keypad are equipped with a magnetic latching mechanism that supports traversing with incremental accuracy. The front panel of 6FX2007-1AE04 Membrane Switch can be removed. A version with 24 V DC and an HTL interface is available for connection to 1/O modules.
The portable handwheel of 6FX2007-1AE04 Membrane Keyboard is connected via a flange socket using the coiled connecting cable. The enclosure is fitted with a magnetic clamp. A holder is available to provide a place to store the handwheel on non-metallic surfaces.
The convenient, ergonomically designed mini handheld unit 6FX2007-1AE04 Keypad Membrane with rugged metal connector is suitable for setting up and operating standard machines in the Jobshop area.

Benefits of 6FX2007-1AE04 Switch Membrane
Since coarse, medium and fine infeed can easily be graduated, the 6FX2007-1AE04 Operator Panel Keypad operator control concept offers fast, increment-precise positioning. The signals are guided in parallel (without MPI) to the CNC.


VICPAS supply Siemens 6FX2007-1AE04 Membrane Keypad Switch, Emergency Stop Switch, Enable Switch, Plastic Cases, Gasket, Screws and Cables with 6 months warranty and support Urgent Worldwide Shipping.




Specifications:

The table below describes the parameters of the 6FX2007-1AE04 Siemens Mini Handheld Unit HMI Parts.

Emergency Stop: 2-channel
Product Line: Siemens Mini HHU
Connection: MPI Line
Warranty: 6-Months Warranty
Distance to NCU/PCU: 200m (656ft)
Operating Voltage: 24 V DC
Part Number: 6FX2007-1AE04
Protection: IP 65
Storage Temperature: -20..+60℃ (-4..+140℉)
Operation Temperature: 0..45℃ (32..131℉)


Related Simatic Mini Handheld Part No. :

SINUMERIK Mini HHU Keypad Description Inventory status
6FX2007-1AB03 Siemens SINUMERIK Mini HHU Terminal Keypad Repair In Stock
6FX2007-1AB13 Siemens Mini HHU Membrane Switch Replacement Available Now
6FX2007-1AC02 Siemens Operator Keyboard Repair In Stock
6FX2007-1AC03 Siemens SINUMERIK HMI Mini HHU Keypad Membrane Replacement In Stock
6FX2007-1AC04 Siemens Mini HHU Membrane Keypad Switch Repair Available Now
6FX2007-1AC12 Siemens SINUMERIK Keyboard Membrane Replacement In Stock
6FX2007-1AC13 Siemens SINUMERIK Mini HHU Terminal Keypad Repair Available Now
6FX2007-1AC14 Siemens Mini HHU Switch Membrane Repair Available Now
6FX2007-1AE03 SINUMERIK HMI Mini HHU Membrane Keypad Touch Panel Repair In Stock
6FX2007-1AE04 Siemens Mini HHU Membrane Keypad Replacement Available Now
6FX2007-1AE13 SINUMERIK Mini HHU Membrane Keyboard Repair In Stock
6FX2007-1AE14 Siemens Mini HHU Terminal Keypad Replacement Available Now
Siemens Mini HHU Part No. Description Inventory status


Siemens handheld unit HMI Manuals PDF Download:

  • Operator components for CNC controls
  • 6FX2007-1AC14

  • FAQ:

    Question: Where is the 6FX2007-1AE04 handheld unit type B-MPI used for?

    Answer: The 6FX2007-1AE04 handheld unit type B-MPI can be used for SINUMERIK 840Di sl/840D sl.


    Question: What is the Handheld unit type B-MPI of 6FX2007-1AE04?

    Answer:
    What is the Handheld unit type B-MPI of 6FX2007-1AE04?

    Common misspellings:

    FX2007-1AE04
    6FX2007-1A04
    6FX20007-1AE04
    6FX2007-A1E04
    6FX2007-1AE40
