Membrane Switch for Siemens Handheld Unit 6FX2007-1AC02
Membrane Switch for Siemens Handheld Unit 6FX2007-1AC02

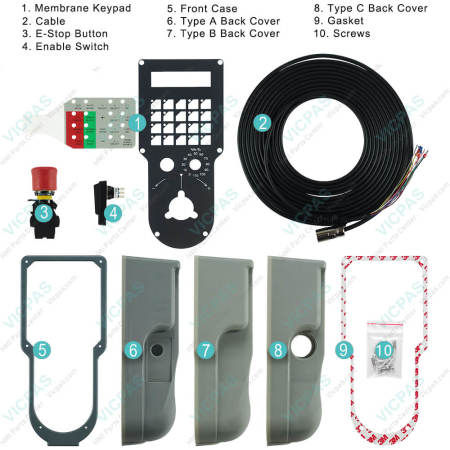

![Membrane Switch for Siemens Handheld Unit 6FX2007-1AC02](https://icdn.tradew.com/file/201606/1569362/jpg/7913499.jpg?x-oss-process=image/resize,m_pad,l_450/quality,Q_90)
![Membrane Switch for Siemens Handheld Unit 6FX2007-1AC02](https://icdn.tradew.com/file/201606/1569362/jpg/7913499.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![Membrane Switch for Siemens Handheld Unit 6FX2007-1AC02](https://icdn.tradew.com/file/201606/1569362/jpg/7913498.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![Membrane Switch for Siemens Handheld Unit 6FX2007-1AC02](https://icdn.tradew.com/file/201606/1569362/jpg/7913500.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
Categories | SINUMERIK Operator Panel |
---|---|
Brand | VICPAS |
Model | 6FX2007-1AC02 Mini Handheld Unit |
Keypad Button Material | Metal |
Membrane Material | Plastic |
Application | Industry Equipment |
Place of Origin | China |
Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, T/T ,Credit Card, Western Union |
Update Time | Aug 31,2024 |
6FX2007-1AC02 Siemens SINUMERIK HMI Mini Handheld Unit OPERATOR PANEL Membrane Keyboard Repair Replacement
![6FX2007-1AC02 Siemens SINUMERIK HMI Mini HHU OPERATOR PANEL Operator Panel Keypad Repair Replacement 6FX2007-1AC02 Siemens SINUMERIK HMI Mini HHU OPERATOR PANEL Membrane Keypad Repair Replacement](https://icdn.tradew.com/file/201606/1569362/jpg/7913501.jpg)
Overview of 6FX2007-1AC02 Operator Keyboard
The handheld unit type B-MPI is suitable for manually operating machine tools, such as axis feed movements. All keys are freely assignable, and the keyboard can be optionally labeled.
Handheld unit of 6FX2007-1AC02 Switch Membrane
Handheld unit with handwheel, EMERGENCY STOP button, keyswitch, override, enabling buttons, display, free keys, connection via MPI bus and cable distributor.
Design of 6FX2007-1AC02 Membrane Keypad
The handheld unit features 2-channel emergency stop and enabling circuits.The enabling button is a 3-step enabling button. The 6FX2007-1AC02 Keyboard Membrane handheld unit is available for 3-wire or 4-wire enabling. The handheld unit type B-MPI is connected via a distributor box to the MPI line. The distributor box of 6FX2007-1AC02 Operator Keyboard is designed for installation in a control cabinet or in a separate enclosure. In the version with 4-wire connection of the enabling buttons, monitoring of the transverse short-circuit is possible in the enabling circuit. Due to the modified connector layout, these 6FX2007-1AC02 Terminal Keypad handheld units can be used only with the distributor box for this version. The holder of 6FX2007-1AC02 Operator Panel Keypad is manufactured from black polystyrene and can be fixed to a suitable base with 4 screws.
Specifications:
The table below describes the parameters of the 6FX2007-1AC02 Siemens Mini Handheld Unit HMI Parts.
Part Number: | 6FX2007-1AC02 |
Product Line: | Siemens Mini HHU |
Connection: | MPI Line |
Warranty: | 6-Months Warranty |
Distance to NCU/PCU: | 200m (656ft) |
Protection: | IP 65 |
Emergency Stop: | 2-channel |
Operating Voltage: | 24 V DC |
Storage Temperature: | -20..+60℃ (-4..+140℉) |
Operation Temperature: | 0..45℃ (32..131℉) |
Related Simatic Mini Handheld Unit Part No. :
SINUMERIK Mini HHU Keypad | Description | Inventory status |
6FX2007-1AB03 | Siemens SINUMERIK Mini HHU Terminal Keypad Repair | In Stock |
6FX2007-1AB13 | Siemens Mini HHU Membrane Switch Replacement | Available Now |
6FX2007-1AC02 | Siemens Operator Keyboard Repair | In Stock |
6FX2007-1AC03 | Siemens SINUMERIK HMI Mini HHU Keypad Membrane Replacement | In Stock |
6FX2007-1AC04 | Siemens Mini HHU Membrane Keypad Switch Repair | Available Now |
6FX2007-1AC12 | Siemens SINUMERIK Keyboard Membrane Replacement | In Stock |
6FX2007-1AC13 | Siemens SINUMERIK Mini HHU Terminal Keypad Repair | Available Now |
6FX2007-1AC14 | Siemens Mini HHU Switch Membrane Repair | Available Now |
6FX2007-1AE03 | SINUMERIK HMI Mini HHU Membrane Keypad Touch Panel Repair | In Stock |
6FX2007-1AE04 | Siemens Mini HHU Membrane Keypad Replacement | Available Now |
6FX2007-1AE13 | SINUMERIK Mini HHU Membrane Keyboard Repair | In Stock |
6FX2007-1AE14 | Siemens Mini HHU Terminal Keypad Replacement | Available Now |
Siemens Mini HHU Part No. | Description | Inventory status |
Siemens handheld unit HMI Manuals PDF Download:
FAQ:
Question: What are the dimensions of 6FX2007-1AC02?
Answer: The length is 252mm(9.92in), the width is 114mm(4.49in) and the height is 110mm(4.33in).
Question: What is the humidity rating of 6FX2007-1AC02 based on EN60721-3-3?
Answer: Class 3K5 condensation and icing excluded. Low air temperature 0°C (32°F).
Question: How many wires of the connection of 6FX2007-1AC02?
Answer: There are 4-wire connection of the enabling buttons of 6FX2007-1AC02, monitoring of the transverse short-circuit is possible in the enabling circuit.
Common misspellings:
FX2007-1AC026FX2007-1A02
6FX20007-1AC02
6FX2007-1AC002
6FX2007-A1C02
