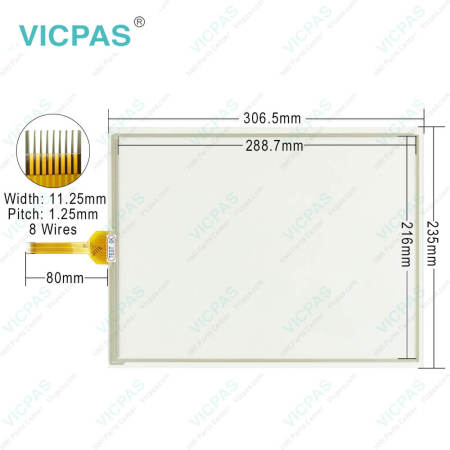

GUNZE 100-2320 Touch Membrane Replacement Repair

GUNZE 100-2320 Touch Membrane Replacement Repair

GUNZE 100-2320 Touch Membrane Replacement Repair
GUNZE 100-2320 Touch Membrane Replacement RepairGUNZE 100-2320 Touch Membrane Replacement RepairGUNZE 100-2320 Touch Membrane Replacement Repair
Categories8-Wire Resistive Touch Glasses
BrandVICPAS
Model100-2320
Touch screen panel typeResistance touch screen
Size14.22 inch
Product LineAnalog Resistive 8-Wire
Supply PartsGUNZE USA 100-2320 Touch Digitizer
Shipping2-4 workdays
Warranty365 Days
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Update TimeNov 22,2024
Detail Information

Gunze 100-2320 Touch Screen Monitor Repair Replacement


Gunze 100-2320 Touch Screen Monitor repair replacement

Answering the demand for lightweight, plastic materials suitable for use in PDAs, Gunze 100-2320 Touch Digitizer combines a Film-Film (F-F) touch panel with a plastic substrate. The electrodes are comprised of 0.1 - 0.2mm thick ITO-coated film. These adhere to a 1 - 2 mm thick plastic substrate. Gunze 100-2320 Touch Panel adjusts the heat expansion coefficients of the polycarbonate material used in its touch panels, overcoming warping problems that can result when plastic is used instead of glass. In addition to being lightweight and fracture-resistant, polycarbonate can be shaped in any way imaginable, enabling design possibilities other than traditional rectangles or squares.


Benefits of Gunze 100-2320 Touch Panels
• Highly durable
• Overlay choices from 2H-9H
• Polycarbonate substrates offer lightweight durability
• Chemically strengthened glass substrates increase impact resistance


Durable materials create a vast array of durable designs. An ideal choice for applications operating in harsh environments or where durability is important:
• Mobile Computing
• Medical Equipment
• Military Equipment
• Aerospace Equipment




Specifications:

The table below describes the parameters of the GUNZE 100-2320 HMI Touch Glass Part.

Number of Touches: Single
Product Line: GUNZE
Interface: USB / RS232 / COMBO
Warranty: 1-Year Warranty
Touch Activation Force: Stylus ≦ 50g
Display Size: 14.22 inch
Linearity: X ≦ 1.5%, Y ≦ 1.5%
Tail Options: FFC/ FPC tail
Resolution: 1280 X 1024
Response time: ≦ 20ms


Related GUNZE Touch Screen HMI Part No. :

GUNZE Touchscreen Description Inventory status
100-2320 Gunze 8-Wire resistive Touch Screen Glass Replacement In Stock
100-2760 GUNZE 8-Wire resistive Touchscreen Panel Replacement Available Now
140-1490 Gunze Analog Resistive 8-Wire HMI Panel Glass Repair Part Available Now
140-1491 Gunze Analog Resistive 8-Wire HMI Touchscreen Repair Part In Stock
150-1820 GUNZE 8-Wire resistive HMI Touch Screen Glass Repair Available Now
150-1821 GUNZE 8-Wire resistive Touch Screen Panel Replacement In Stock
150-1930 Gunze Analog Resistive 8-Wire Touch Membrane Replacement In Stock
150-1940 GUNZE Analog Resistive 8-Wire HMI Touch Glass Replacement In Stock
150-2040 Gunze 8-Wire resistive HMI Panel Glass Replacement Available Now
150-2050 Gunze Analog Resistive 8-Wire Touch Digitizer Glass Repair Available Now
Gunze Touch Glass Description Inventory status

GUNZE Touch Screen Panel HMI Manuals PDF Download:

  • 100-2020_(G057-01__5.7D_8w_-FG) Drawing
  • 100-2021-Rev.-0-5.7D_8wire Drawing
  • 100-2030 (G150-01 15 0D 8w -FG) Drawing
  • 100-2031-Gunze-USA-15.0D_8wire-FG Drawing
  • 100-2250_Rev._B_(G104-02-1D_10.4D_8w_-FG) Drawing
  • 100-2320-Rev.-A-14.2D_8wire Drawing
  • 100-2320_(G33-01_14.22D_8w_-FG) Drawing
  • 100-2760_(G104-03_10.4D_8w_-_FG)_G104-03F2D-V2-02 Drawing
  • 100-2761_Rev_0 Drawing
  • Tough Touch Data Sheet
  • Low Reflective Data Sheet
  • High Transmissive Data Sheet
  • Film Glass Data Sheet

  • FAQ:

    Question: Are there any advantages between 4-8 wire vs 5 wire resistive touch panel?

    Answer:
    4-8 wire resistive touch panel is the most cost-effective, touch technology to incorporate in your application.
    5-wire touch panels are more durable making them ideal for POS, kiosks, or industrial applications.


    Question: How many surface treatments finish is available for resistive 100-2320 touch screens?

    Answer:Film surface treatments range from Clear (3H), anti-glare (3H), anti-smudge (3H), anti-reflective (3H) and 4H (size restricted < 5.0” Diagonal)


    Common misspellings:

    100-320

    00-2320

    1002-320

    100-Z320

    100-232O

    100--2320

    1100-2320
