CP420B 1SBP260182R1001 4.7'' Touch Screen Glass Repair
| Categories | Control Panel 400 |
|---|---|
| Brand | VICPAS |
| Model | CP420B 1SBP260182R1001 |
| Brand | Vicpas |
| Supply | Resistive Touch Screen |
| Shipping | 2-3 workdays |
| Size | 4.7-inch |
| Warranty | 365 Days |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Update Time | Nov 24,2024 |
Control Panel 400 Series CP420B 1SBP260182R1001 Touch Screen Panel Glass Repair
CP420 is a Human Machine Interface (HMI) with a 4.7" STN Liquid Crystal Display, and is water- and dust-resistant according to IP65/NEMA 4X (indoor use only).
CP420 is CE-marked and meets your need to be highly transient-resistant while in operation.
Also, its compact design makes connections with other machinery more flexible, thus achieving the optimal performance of your machines.
CP400Soft is used to design applications of CP420; it is reliable, user-friendly and compatible with many models.
VICPAS supply Control Panel 400 Series CP420B 1SBP260182R1001 Touch Digitizer Monitor with 365 Days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the CP420B 1SBP260182R1001 HMI Touch Panel Parts.
| Part Number: | CP420B 1SBP260182R1001 |
| Display Adjustment: | Via touch screen |
| Touch Screen: | Analog |
| Operating Temperature: | 0 … +50 °C |
| Storage Temperature: | -10 … +60 °C |
| Display Type: | Mono STN LCD, 16 shades of blue, |
| Front Panel Seal: | IP 65/NEMA 4X |
| Screen Resolution: | 240 × 128 pixels |
| Part Type: | New |
| Warranty: | 365 Days |
Related Control Panel 400 Series Terminals Part No. :
| Control Panel 400 Series | Description | Inventory status |
| CP405 1SAP500405R0001 | CP405 1SAP500405R0001 7'' Touch Panel Glass Repair | In Stock |
| CP408 1SAP500408R0001 | CP408 1SAP500408R0001 10.1'' Touch Screen Glass Repair | Available Now |
| CP410M 1SBP260181R1001 | CP410M 1SBP260181R1001 Membrane Keypad Switch Repair | In Stock |
| CP415M 1SBP260191R1001 | CP415M 1SBP260191R1001 3.5'' Glass Panel Overlay Repair | Available Now |
| CP430 B 1SBP260183R1001 | CP430 B 1SBP260183R1001 Touchscreen Protective Film | In Stock |
| CP430 BP 1SBP260192R1001 | CP430 BP 1SBP260192R1001 Overlay Panel Glass Repair | In Stock |
| CP430 BP-ETH 1SBP260194R1001 | CP430 BP-ETH 1SBP260194R1001 5.7'' Overlay Glass Repair | Available Now |
| CP430 T 1SBP260195R1001 | CP430 T 1SBP260195R1001 5.7'' Touch Screen Film Repair | In Stock |
| CP430 T-ETH 1SBP260196R1001 | CP430 T-ETH 1SBP260196R1001 5.7'' Glass Film Repair | Available Now |
| CP435T 1SBP260193R1001 | CP435T 1SBP260193R1001 7'' Touch Panel Front Overlay Repair | In Stock |
| CP435T-ETH 1SBP260197R1001 | CP435T-ETH 1SBP260197R1001 7'' Front Overlay Touch Membrane Repair | Available Now |
| CP440 C-ETH 1SBP260187R1001 | CP440 C-ETH 1SBP260187R1001 Touch Digitizer Glass Repair | In Stock |
| CP450T 1SBP260188R1001 | CP450T 1SBP260188R1001 Touchpad Membrane Keypad Overlay Repair | Available Now |

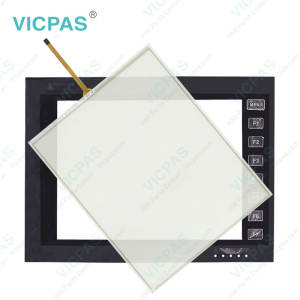

| CP450T-ETH 1SBP260189R1001 | CP450T-ETH 1SBP260189R1001 Keyboard Overlay Touch Panel Repair | In Stock |
| Control Panel 400 HMI | Description | Inventory status |
Control Panel 400 HMI Manuals PDF Download:
FAQ:
Question: How to mount the CP420B 1SBP260182R1001 operator terminal?
Answer:
1. Cut out the control CP420B 1SBP260182R1001 front panel to match the dimensions (mm) below.
2. Mount the operator terminal into the cut-out. Insert the fixtures to the holes on the unit and fasten the screws into the CP420B 1SBP260182R1001 front panel. Do not tighten the screws with too much or uneven force, or it may cause the deformation of the operator terminal.
3. The operator terminal is to be installed within the angle of 0 to 135 ° as shown below.
Question: How to wire the power connector?
Answer:
1. Unplug the power connector and unscrew the screws.
2. Strip approximately 7-8 mm of insulation. Insert the wire all the way into the power connector and then turn the screws tight.
3. Plug in the connector to the power input of the CP420B 1SBP260182R1001 operator terminal.
Common misspellings:
CP40B 1SBP260182R1001
CP420B 1SBP26182R1001
CP240B 1SBP260182R1001
CP420B 1SBP26018R21001
CP420B 1SBP2600182R1001
