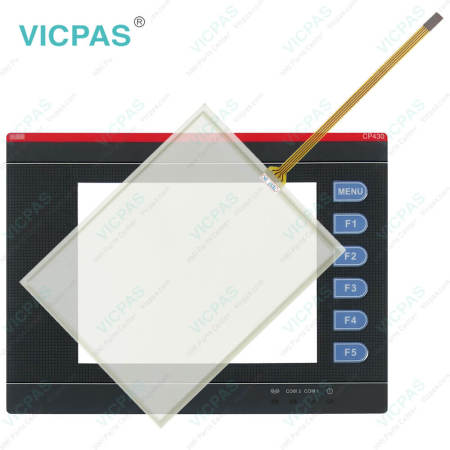

CP430 BP 1SBP260192R1001 Overlay Panel Glass Repair
| Categories | Control Panel 400 |
|---|---|
| Brand | VICPAS |
| Model | CP430 BP 1SBP260192R1001 |
| Brand | Vicpas |
| Supply | Touch Digitizer Glass and Protective Film |
| Shipping | 2-3 workdays |
| Size | 5.7-inch |
| Warranty | 365 Days |
| Number | 1SBP260192R1001 |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Update Time | Dec 25,2024 |
Control Panel 400 Series CP430 BP 1SBP260192R1001 HMI Touch Screen Protective Film Repair Replacement
Order each part separately is available
The six keys on the CP430 BP 1SBP260192R1001 include one menu key and five functional keys (F1- F5), described below. Press the menu key to slide out the innovative slide-out menu.
The CP430 BP 1SBP260192R1001 functional keys can also be defined in CP400Soft and used as “Quickbuttons”, for example, to set an ON/OFF value, to change a screen etc. For further information about the slide-out menu, please see the CP400Soft User’s Manual.
When a key is pressed, the operator terminal will make a “beep” sound to signal that a command is pressed. The default setting, a 200 ms beep, can be configured in CP400Soft.
VICPAS supply Control Panel 400 Series CP430 BP 1SBP260192R1001 Touch Digitizer Glass Front Overlay with 365 Days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the CP430 BP 1SBP260192R1001 HMI Touch Panel Parts.
| Part Number: | CP430 BP 1SBP260192R1001 |
| Screen Color: | 64k colors |
| Touch Screen: | 4 Wire Analog Resistive |
| Screen Type: | TFT color, CCFL backlight |
| Screen Size: | 4:3 screen 5.7 in |
| CN8: | 85381000 |
| Operating Temperature: | 0 … +50 °C |
| Storage Temperature: | -10 … +60 °C |
| Display Type: | TFT Touch + keys |
| Screen Resolution: | 320 x 240 pixels |
Related Control Panel 400 Series Terminals Part No. :
| Control Panel 400 Series | Description | Inventory status |
| CP405 1SAP500405R0001 | CP405 1SAP500405R0001 7'' Touch Panel Glass Repair | In Stock |
| CP408 1SAP500408R0001 | CP408 1SAP500408R0001 10.1'' Touch Screen Glass Repair | Available Now |
| CP410M 1SBP260181R1001 | CP410M 1SBP260181R1001 Membrane Keypad Switch Repair | In Stock |
| CP415M 1SBP260191R1001 | CP415M 1SBP260191R1001 3.5'' Glass Panel Overlay Repair | Available Now |
| CP420B 1SBP260182R1001 | CP420B 1SBP260182R1001 4.7'' Touch Screen Glass Repair | In Stock |
| CP430 B 1SBP260183R1001 | CP430 B 1SBP260183R1001 Touchscreen Protective Film | In Stock |
| CP430 BP-ETH 1SBP260194R1001 | CP430 BP-ETH 1SBP260194R1001 5.7'' Overlay Glass Repair | Available Now |
| CP430 T 1SBP260195R1001 | CP430 T 1SBP260195R1001 5.7'' Touch Screen Film Repair | In Stock |
| CP430 T-ETH 1SBP260196R1001 | CP430 T-ETH 1SBP260196R1001 5.7'' Glass Film Repair | Available Now |
| CP435T 1SBP260193R1001 | CP435T 1SBP260193R1001 7'' Touch Panel Front Overlay Repair | In Stock |
| CP435T-ETH 1SBP260197R1001 | CP435T-ETH 1SBP260197R1001 7'' Front Overlay Touch Membrane Repair | Available Now |
| CP440 C-ETH 1SBP260187R1001 | CP440 C-ETH 1SBP260187R1001 Touch Digitizer Glass Repair | In Stock |
| CP450T 1SBP260188R1001 | CP450T 1SBP260188R1001 Touchpad Membrane Keypad Overlay Repair | Available Now |
| CP450T-ETH 1SBP260189R1001 | CP450T-ETH 1SBP260189R1001 Keyboard Overlay Touch Panel Repair | In Stock |
| Control Panel 400 HMI | Description | Inventory status |
Control Panel 400 HMI Manuals PDF Download:
FAQ:
Question: How to mount the operator terminal?
1. Cut out the control CP430 BP 1SBP260192R1001 front panel to match the dimensions (mm) below.
2. Mount the operator terminal into the cut-out. Insert the fixtures to the holes on the unit and fasten the screws into the CP430 BP 1SBP260192R1001 front panel. Do not tighten the screws with too much or uneven force, or it may cause the deformation of the operator terminal.
3. The operator terminal is to be installed within the angle of 0 to 135 ° as shown below.
Question: What is the price of CP430 BP 1SBP260192R1001 Touch Digitizer Monitor?
Answer: Submit a fast quote, send VICPAS an email for best price.
Question: What is the size of the CP430 BP 1SBP260192R1001 HMI Touch Panel Front Overlay?
Answer: The CP430 BP 1SBP260192R1001 Touch Digitizer Glass Protective Film are 5.7-inch.
