CP430 T-ETH 1SBP260196R1001 5.7'' Glass Film Repair

CP430 T-ETH 1SBP260196R1001 5.7'' Glass Film Repair

CP430 T-ETH 1SBP260196R1001 5.7'' Glass Film Repair
CP430 T-ETH 1SBP260196R1001 5.7'' Glass Film RepairCP430 T-ETH 1SBP260196R1001 5.7'' Glass Film RepairCP430 T-ETH 1SBP260196R1001 5.7'' Glass Film Repair
CategoriesControl Panel 400
BrandVICPAS
ModelCP430 T-ETH 1SBP260196R1001
BrandVicpas
SupplyTouch Screen Glass and Protective Film
Shipping2-3 workdays
Size5.7-inch
Warranty365 Days
Number1SBP260196R1001
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update TimeDec 23,2024
Detail Information

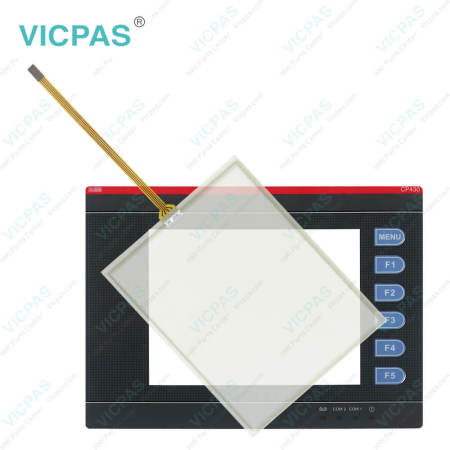

Control Panel 400 Series CP430 T-ETH 1SBP260196R1001 Resistive Touch Panel Protective Film Repair

Order each part separately is available

Control Panel 400 Series CP430 T-ETH 1SBP260196R1001 Touch Digitizer Glass Protective Film Repair

The six keys on the CP430 T-ETH 1SBP260196R1001 include one menu key and five functional keys (F1- F5), described below. Press the menu key to slide out the innovative slide-out menu.

The CP430 T-ETH 1SBP260196R1001 functional keys can also be defined in CP400Soft and used as “Quickbuttons”, for example, to set an ON/OFF value, to change a screen etc. For further information about the slide-out menu, please see the CP400Soft User’s Manual.

When a key is pressed, the operator terminal will make a “beep” sound to signal that a command is pressed. The default setting, a 200 ms beep, can be configured in CP400Soft.


VICPAS supply Control Panel 400 Series CP430 T-ETH 1SBP260196R1001 Touch Digitizer Glass Front Overlay with 365 Days warranty and support Urgent Worldwide Shipping.






Specifications:

The table below describes the parameters of the CP430 T-ETH 1SBP260196R1001 HMI Touch Panel Parts.

Part Number: CP430 T-ETH 1SBP260196R1001
Operate Temperature: 0 … +50 °C
Display Type: TFT Touch + keys
Screen Color: 64k colors
Screen Resolution: 320 x 240 pixels
CN8: 85381000
Storage Temperature: -10 … +60 °C
Screen Size: 4:3 screen 5.7 in
Screen Type: TFT color, CCFL backlight
Touch Screen: 4 Wire Analog Resistive


Related Control Panel 400 Series Terminals Part No. :

Control Panel 400 Series Description Inventory status
CP405 1SAP500405R0001 CP405 1SAP500405R0001 7'' Touch Panel Glass Repair In Stock
CP408 1SAP500408R0001 CP408 1SAP500408R0001 10.1'' Touch Screen Glass Repair Available Now
CP410M 1SBP260181R1001 CP410M 1SBP260181R1001 Membrane Keypad Switch Repair In Stock
CP415M 1SBP260191R1001 CP415M 1SBP260191R1001 3.5'' Glass Panel Overlay Repair Available Now
CP420B 1SBP260182R1001 CP420B 1SBP260182R1001 4.7'' Touch Screen Glass Repair In Stock
CP430 B 1SBP260183R1001 CP430 B 1SBP260183R1001 Touchscreen Protective Film In Stock
CP430 BP 1SBP260192R1001 CP430 BP 1SBP260192R1001 Overlay Panel Glass Repair In Stock
CP430 BP-ETH 1SBP260194R1001 CP430 BP-ETH 1SBP260194R1001 5.7'' Overlay Glass Repair Available Now
CP430 T 1SBP260195R1001 CP430 T 1SBP260195R1001 5.7'' Touch Screen Film Repair In Stock
CP435T 1SBP260193R1001 CP435T 1SBP260193R1001 7'' Touch Panel Front Overlay Repair In Stock
CP435T-ETH 1SBP260197R1001 CP435T-ETH 1SBP260197R1001 7'' Front Overlay Touch Membrane Repair Available Now
CP440 C-ETH 1SBP260187R1001 CP440 C-ETH 1SBP260187R1001 Touch Digitizer Glass Repair In Stock
CP450T 1SBP260188R1001 CP450T 1SBP260188R1001 Touchpad Membrane Keypad Overlay Repair Available Now
CP450T-ETH 1SBP260189R1001 CP450T-ETH 1SBP260189R1001 Keyboard Overlay Touch Panel Repair In Stock
Control Panel 400 HMI Description Inventory status

Control Panel 400 HMI Manuals PDF Download:

  • cp430-1SBP260195R1001-t-eth-control-panel-5-7-tft-touch
  • CP430 Installation and Operation Manual
  • CP400Soft technical manual

  • FAQ:

    Question: How to mount the operator terminal?

    1. Cut out the control CP430 T-ETH 1SBP260196R1001 front panel to match the dimensions (mm) below.

    2. Mount the operator terminal into the cut-out. Insert the fixtures to the holes on the unit and fasten the screws into the CP430 T-ETH 1SBP260196R1001 front panel. Do not tighten the screws with too much or uneven force, or it may cause the deformation of the operator terminal.

    3. The operator terminal is to be installed within the angle of 0 to 135 ° as shown below.


    Question: What is the price of CP430 T-ETH 1SBP260196R1001 Touch Digitizer Monitor?

    Answer: Submit a fast quote, send VICPAS an email for best price.
