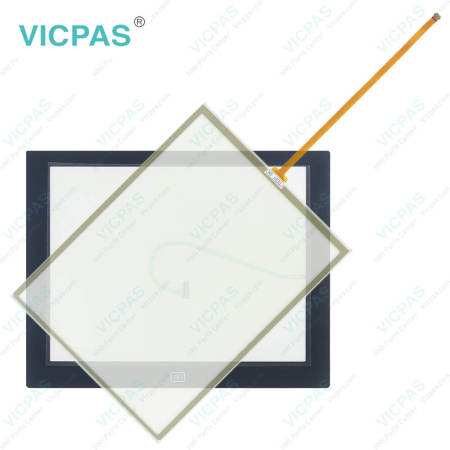

2715-T10CD PanelView 5500 Overlay Panel Glass Repair
| Categories | PanelView 5500 |
|---|---|
| Brand | VICPAS |
| Model | 2715-T10CD |
| Warranty | 365 Days |
| Product Line | Allen-Bradley PanelView 5500 Repair Kit |
| Types | HMI Touch Screen Front Overlay |
| Shipping | 2-3 workdays |
| Size | 10.4 inches |
| FPC | 10 wires |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Update Time | Nov 22,2024 |
Allen-Bradley PanelView 5500 HMI 2715-T10CD Front Overlay Touch Digitizer Monitor Repair
Order each part separately is available
The Studio 5000 environment includes these applications:
• View Designer – you can create and design a project for a specific the 2715-T10CD Protective Film Touch Digitizer Monitor LCD Display Panel terminal and download the project to the terminal. You can create an application for any PanelView 5500 terminal and reuse that same application across the entire platform.
• Logix Designer – you can develop control logic for a CompactLogix or ControlLogix controller and download the logic to the controller.
The 2715-T10CD Front Overlay Resistive Touch Panel LCD Display Screen terminals include these features and capabilities:
• Supports a maximum of 50 user-defined screens (the screens will increase in future firmware).
• Supports a maximum of 500 Logix-based alarms (the alarms will increase in future firmware).
• Ethernet communication supporting Device Level Ring (DLR), linear, or star network topologies.
• High-speed human machine interface (HMI) button control and easily configured navigation menu.
VICPAS supply Allen Bradley PanelView 5500 HMI 2715-T10CD HMI Touch Screen Protective Film and LCD Display Panel with 365 Days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 2715-T10CD PanelView 5500 Parts.
| Part Number: | 2715-T10CD |
| Operating Temperature: | 0°C - 55°C |
| Display Type: | Color TFT LCD |
| Warranty: | 365 Days |
| Backlight: | LED, non-replaceable |
| Brightness: | 300 cd/m2 (Nits) |
| Storage Temperature: | - 25°C - 70°C |
| Relative Humidity: | 5…95% without condensation |
| Display Resolution: | 800 x 600 SVGA, 4:3 |
| Color Depth: | 18-bit color graphics |
Related Allen Bradley PanelView 5500 Terminals Part No. :
| PanelView 5500 | Description | Inventory status |
| 2715-B10CA | 2715-B10CA PanelView 5500 Keyboard Touch Display Repair | In Stock |
| 2715-B10CA-B | 2715-B10CA-B Keyboard Touch LCD Display Replacement | Available Now |
| 2715-B10CD | PanelView 5500 2715-B10CD Touch Keypad Display Repair | In Stock |
| 2715-B10CD-B | 2715-B10CD-B Display Keyboard Glass Repair Replacement | Available Now |
| 2715-T10CA | PanelView 5500 2715-T10CA Panel Glass Protective Film | In Stock |
| 2715-T10CA-B | 2715-T10CA-B PanelView 5500 Film Display Touch Reapir | In Stock |
| 2715-T10CD | 2715-T10CD PanelView 5500 Overlay Panel Glass Repair | In Stock |
| 2715-T10CD-B | PanelView 5500 2715-T10CD-B Front Overlay Touch Repair | Available Now |
| 2715-T12WA | 2715-T12WA 12.1'' PanelView 5500 HMI Touch Panel Film | Available Now |
| 2715-T12WA-B | PanelView 5500 2715-T12WA-B Panel Glass Film Repair kit | In Stock |
| 2715-T12WD | PanelView 5500 2715-T12WD Touch Overlay Display Repair | In Stock |
| 2715-T12WD-B | 2715-T12WD-B PanelView 5500 Panel Glass Overlay Display | In Stock |
| PanelView 5500 HMI | Description | Inventory status |
PanelView 5500 HMI Manuals PDF Download:
FAQ:
Question: What do the two indicators on the back of the terminal do?
Answer: The back of the PanelView 5500 HMI 2715-T10CD Touch Screen Glass Front Overlay LCD Display terminal has two indicators to identify system status:
• STS indicator (green) indicates that the HMI 2715-T10CD Resistive Touch Panel Front Overlay LCD Display terminal is on and in use.
• ERR indicator (red) indicates hardware and firmware faults. At startup, the STS and ERR indicators blink on and off, then the STS indicator blinks to signal progress during startup. If the indicators remain off, check the power cable. After a successful startup, the STS indicator remains on.
Question: How to connect the PanelView 5500 2715-T10CD HMI Touch Panel Protective Film LCD Screen Display terminal to a DC power source?
Answer:
Common misspellings:
275-T10CD
2715-T10C
2175-T10CD
2715-1T0CD
2715--T10CD
