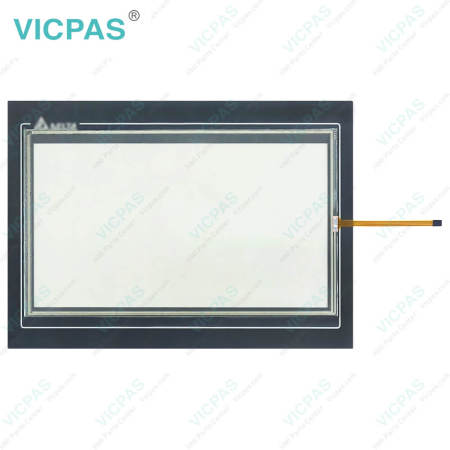

Delta DOP-110IG Touch Glass Front Overlay Repair

Delta DOP-110IG Touch Glass Front Overlay Repair

Delta DOP-110IG Touch Glass Front Overlay Repair
Delta DOP-110IG Touch Glass Front Overlay RepairDelta DOP-110IG Touch Glass Front Overlay RepairDelta DOP-110IG Touch Glass Front Overlay RepairDelta DOP-110IG Touch Glass Front Overlay RepairDelta DOP-110IG Touch Glass Front Overlay Repair
CategoriesOther Delta HMI Replacement
BrandVICPAS
ModelDOP-110IG
BrandDelta
Size10.4 inch
Warranty365 Days
Product LineDelta DOP-100 Series
SupplyDOP-110IG Front Overlay Touch Digitizer Glass
Shipping2-4 workdays
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Update TimeDec 23,2024
Detail Information

Delta DOP-100 DOP-110IG Protective Film HMI Panel Glass Repair Replacement

Order each part separately is available

Delta DOP-100 DOP-110IG Front Overlay Touch Screen Repair Replacement

Alarm message supports up to 4,096 data entries. DOP-100 DOP-110IG Protective Film Touch Digitizer Glass HMI also provides a batch tasks tool for you to quickly complete the alarm group settings, allowing you to input the alarm group number easily. [Alarm History Table] provides more powerful functions: you can use the sorting and filter function to quickly view the alarm messages.


Different from the setting methods for the DOP-B and DOP-H series HMIs that use continuous Word addresses, DOP-W and DOP-100 series DOP-110IG Touch Screen Panel Glass Protective Film HMI use non-continuous addresses. Thus, DOP-110IG Front Overlay Touchscreen Panel HMI alarms can be triggered with either Bit or Word addresses, which is more flexible and user-friendly. In addition, alarm messages now support dynamic modification. In the old version, the displayed temperatures on the alarm messages were fixed, e.g. 100 degrees; now you can add %d1 to the alarm message and use the monitoring address in [Alarm Settings] to input the value, so the DOP-110IG Touch Screen Monitor Front Overlay HMI displays the modified value when the alarm is triggered next time.




Specifications:

The table below describes the parameters of the Delta DOP-100 DOP-110IG Protective Film Touch Digitizer HMI Parts.

Cooling Method: Natural air circulation
Backlight: LED Back Light
Brand: Delta
Product Line: Delta DOP-100
Touch Size: 10.4"
Display Colors: 65,536 Colors
Display Type: TFT LCD
Operation Temp.: 0 °C ~ 50 °C
Resolution: 800 x 600 pixels
Warranty: 12-Month Warranty


Related Delta DOP-100 Series Part No. :

Delta DOP-100 HMI Description Inventory status
DOP-108IG Delta DOP-100 Series Touch Screen Protective Film Replacement In Stock
DOP-110CG Delta DOP-100 Series Protective Film Touch Panel Repair Available Now
DOP-110CS Delta DOP-100 Series Touchscreen Protective Film Repair In Stock
DOP-110IG Delta DOP-100 Series Protective Film HMI Panel Glass Available Now
DOP-110IS Delta DOP-100 Series Front Overlay Touch Screen Monitor In Stock
DOP-110WS Delta DOP-100 Series HMI Touch Screen Glass Protective Film Available Now
DOP-112MX Delta DOP-100 Series Touch Screen Panel Front Overlay Repair In Stock
DOP-112WX Delta DOP-100 Series Front Overlay Touch Membrane In Stock
DOP-115MX Delta DOP-100 Series Touch Glass Front Overlay Repair In Stock
DOP-115WX Delta DOP-100 Series Touch Digitizer Glass Overlay Repair Available Now
Delta DOP-100 Series Description Inventory status


Delta DOP-100 Series HMI Manuals PDF Download:

  • Delta DOP-100 New Functions Operating Instruction Manual
  • DOP-107BV Instruction Sheet
  • DOP-107EG Instruction Sheet
  • DOP-107EV DOP-107CV Instruction Sheet
  • Delta Human Machine Interface DOP-100 Series
  • DOP-100 Series Transition Manual
  • DOP-100 User Manual

  • FAQ:

    Question: Can I apply the customized view for Delta's CNC Solution A Series to the B Series?

    Answer: Yes, please follow the instructions below:
    • Open the software panel project of the A Series (.dpb) with the DOPSOFT tool in the CNCSoft-B software.
    • Configure the B Series models that the customized view will be applied to.
    • Select the view project template of the B Series (.dpa) to be merged with the view.
    • Check whether the name and content of the merged page are correct.In DOPSOFT, select Option > Configuration > Group Screen. Select SOFT and check the property settings.


    Question: What is the half-life of Delta DOP-110IG HMI Panel Glass Protective Film backlight?

    Answer: The half-life of DOP-110IG backlight is defined as original luminance being reduced by 50% when the maximum driving current is supplied to DOP-110IG Front Overlay Touchscreen HMI. The life of LED backlight shown here is an estimated value under 25°C normal temperature and humidity conditions.
