6AV2143-6GB00-0AA0 TP700 Comfort Aluminum Shell

Order each part separately is available

Functions of the Siemens Simatic TP700 Comfort 6AV2143-6GB00-0AA0 capacitive single-touch screen
General functions
● Automatic calibration of the touch screen during startup; manual calibration is not necessary. For this reason, the "Touch" tab does not exist in the "OP Properties" dialog for PRO devices.
● Touch and gesture operation analog to the operating options described in the "Comfort Panels" operating instructions.
Security functions in an industrial environment
The touch screen is locked for security reasons when the following happens:
● There is a conductive liquid on the touch screen with ground contact via the enclosure or the operator, for example.
● Electromagnetic interference is present that exceeds the specification according to EN 61000-4-2.
Once the interference is over, the touch screen is no longer locked.

Points to observe when selecting the 6AV2143-6GB00-0AA0 Touch Screen Protective Film LCD Display Aluminum Case Cover HMI mounting location:
● Position the 6AV2143-6GB00-0AA0 Touch Panel Overlay LCD Housing HMI device so that it is not subjected to direct sunlight.
● Position the 6AV2143-6GB00-0AA0 Protective Film Touch Glass LCD Aluminum Front HMI device such that it is ergonomically accessible for the operator. Choose a suitable mounting height.
● Ensure that the 6AV2143-6GB00-0AA0 Touch Screen Panel Front Overley LCD Display Aluminum Cover Body HMI device air vents are not covered as a result of installation.
● Note the permitted mounting positions.

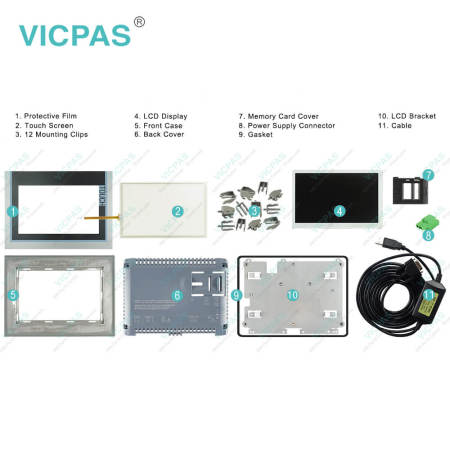

VICPAS supply 6AV2143-6GB00-0AA0 Siemens TP700 comfort touch panel, Overlay, LCD display, Case Gasket, LCD Bracket, Power Supply Connector, Mounting Clips, Screws and Aluminum Front. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.
