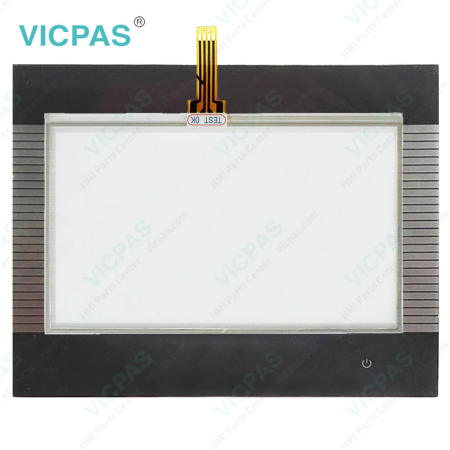

UniOP eTOP04C-0046 HMI Touch Screen Front Overlay

UniOP eTOP04C-0046 HMI Touch Screen Front Overlay

UniOP eTOP04C-0046 HMI Touch Screen Front Overlay
UniOP eTOP04C-0046 HMI Touch Screen Front OverlayUniOP eTOP04C-0046 HMI Touch Screen Front OverlayUniOP eTOP04C-0046 HMI Touch Screen Front OverlayUniOP eTOP04C-0046 HMI Touch Screen Front OverlayUniOP eTOP04C-0046 HMI Touch Screen Front Overlay
CategoriesUniOP eTOP
BrandVICPAS
ModeleTOP04C-0046
BrandUniOP
Warranty365 Days
Product LineUniOP eTOP04C series
SupplyeTOP04C-0046 Protective Film Touch Screen Repair
ModeleTOP04C-0046
Size4.3 inch
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update TimeDec 23,2024
Detail Information

UniOP eTOP04C series HMI eTOP04C-0046 Touch Screen Panel Front Overlay Repair

Order each part separately is available

UniOP series HMI eTOP04C-0046 Touchscreen Front Overlay Repair Kit

eTOP04C-0046 Touch Screen Protective Film IHM Highlights
• 4.3” TFT color display
• 256 colors
• 480x272 pixel resolution
• Portrait mode operation
• Resistive eTOP04C-0046 touchscreen
• 2 MB user memory
• Ethernet interface
• USB port
• Connection to industrial bus systems (requires optional plug-in modules)


The eTOP04C eTOP04C-0046 HMI Panel Glass Front Overlay Terminal is a compact HMI device with touchscreen interface and a high-resolution 4.3” widescreen TFT display. The built-in 100Mb Ethernet interface enhances its communication capability. It is the ideal solution for applications where low cost and small size, withoutcompromising performance, are a requirement.





Specifications:

The table below describes the parameters of the eTOP04C-0046 UniOP Touchscreen Overlay.

Part Number: eTOP04C-0046
Display Type: TFT LCD
Resolution: 480x272 pixel
Backlight: LED
Warranty: 365 Days
Input Power: 24VDC (+10%, -15%)
Operating Temperature: 0 to 50 °C
Display Size: 4.3 in
Touch screen: Resistive
Product Line: UniOP eTOP04C series


Related UniOP Series Part No. :

UniOP eTOP Description Inventory status
eTOP02-0045 UniOP eTOP Touch Screen Monitor Overlay Repair In Stock
eTOP02-0046 Touch Screen Protective Film UniOP eTOP eTOP02 Available Now
eTOP02-0050 UniOP eTOP02 Touch Screen Glass Front Overlay In Stock
eTOP02C-0045 UniOP eTOP eTOP02C Touch Protective Film In Stock
eTOP02C-0050 UniOP eTOP02C Touch Screen Overlay Replacement In Stock
eTOP03-0045 HMI Panel Glass Overlay eTOP eTOP03 Repair Available Now
eTOP03-0046 UniOP eTOP Front Overlay Touch Panel Glass In Stock
eTOP03-0050 UniOP eTOP Touch Screen Protective Film Repair Available Now
eTOP04C-0045 UniOP eTOP04C Touch Digitizer Protective Film In Stock
eTOP04C-0046 HMI Panel Glass Overlay eTOP eTOP04C Repair Available Now
eTOP04C-0050 UniOP eTOP04C HMI Panel Glass Front Overlay In Stock
eTOP05-0045 UniOP eTOP eTOP05 Touch Protective Film In Stock
eTOP05-0345 eTOP eTOP05 Front Overlay Touch Digitizer Glass Available Now
eTOP05-D245 HMI Panel Glass Overlay eTOP eTOP05 Repair Available Now
Exor UniOP HMI Description Inventory status


Exor UniOP eTOP HMI Manuals PDF Download:

  • UniOP eTOP02 User Manuals
  • UniOP eTOP03 Datasheet
  • UniOP eTOP04C Datasheet
  • UniOP eTOP05 User Manuals
  • UniOP eTOP05, eTOP05P User Manuals
  • UniOP Manual
  • UniOP User's Manual
  • UniOP Installation Guide
  • UniOP Touch & Controls PDF
  • UniOP Universal Operator Panels Installation Guide

  • FAQ:

    Question: How to cleaning eTOP04C-0046 Touch Panel Glass Overlay IHM faceplates?

    Answer: The equipment must be cleaned only with a soft cloth and neutral soap product. Do not use solvents.


    Question: What is Exor UniOP eTOP04C-0046 Touchscreen Calibration?

    Answer:

  • Standard calibration:
  • 1. Recall Configuration Mode
  • 2. Touch the CLEAR key on the eTOP04C-0046 screen until a small round symbol will appear on the top right corner of the screen
  • 3. touch and hold the symbol until it will move to the low left corner of the eTOP04C-0046 screen
  • 4. touch and hold the symbol until the indication to touch the ← key will be displayed on the screen
  • 5. touch and hold the key ← until the indication to touch the ↓ key will be displayed on the screen
  • 6. touch and hold the key ↓ until the indication to touch the Enter key will be displayed on the screen
  • 7. touch and hold the Enter key until the panel will switch to Operation Mode (if a valid project is loaded in the memory)
  • Emergency calibration.
  • The Emergency calibration procedure should be used in all cases when it would result not possible to go to calibration using the standard procedure.
  • 1. Switch of the unit
  • 2. turn on the unit
  • 3. tap in the middle of the touchscreen with a frequency of about one second until the operator panel will enter the Calibration Mode
  • 4. perform the standard calibration procedure.

  • Common misspellings:

    eTOP04C-006
    eTP04C-0046
    eTOP40C-0046
    eT0P04C-0046
    eTOP04C--0046
