B&R 5D5212.04 Provit 5200 HMI Touch Screen
| Categories | Provit 2000/5000 |
|---|---|
| Brand | VICPAS |
| Model | 5D5212.04 |
| Touch screen panel type | Resistance touch screen |
| Size | 15 inch |
| Brand | B&R |
| Warranty | 1 Year VICPAS Warranty |
| Model | B&R Provit 5200 5D5212.04 |
| Shipping | DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, T/T, PayPal, Credit Card |
| Update Time | Nov 25,2024 |

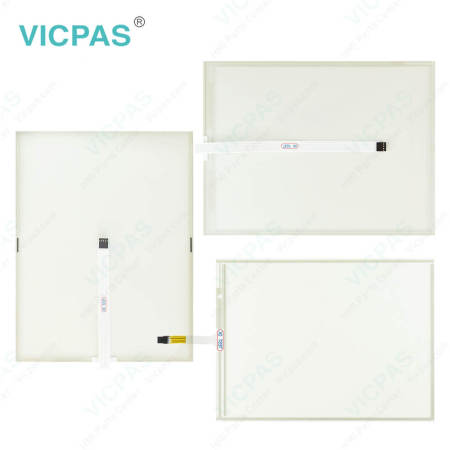

B&R Provit 5200 5D5212.04 HMI Touch Panel Replacement
Order each part separately is available
When mounting the Provit 5200 5D5212-04 display unit on the controller unit (standard mounting) the Provit 5200 5D5212.04 display is fastened on the controller with the six screws included in the delivery. The B&R Provit 5200 5D5212-04 FPD and touch screen connection cables for standard installation are included in the delivery. The B&R Provit 5200 5D5212.04 touch screen cable is connected to a controller's RS232 interface.
All of the B&R Provit 5200 5D5212.04 IPC's basic functions are implemented on the mainboard. These mainly include:
• Processor socket
• Chipset
• 2nd level cache
• DRAM socket
• Plug for the bus unit (power supply, ISA, PCI and IDE buses)
• Super I/O controller (COM1, COM2, LPT1, external FDD interface, PS/2 mouse, keyboard controller, USB interfaces, system clock)
• VGA controller (with CRT and FPD connection)
• Status LEDs
• Battery
• Reset button
• Recovery mode jumper
• MTC maintenance controller (Panelware module operation, keyboard operation, Panellink FPD interface, temperature monitoring with fan control)
Specifications:
The table below describes the parameters of the 5D5212.04 Provit 5200 Touch Digitizer.
| Part Number : | 5D5212.04 |
| Product Line: | Provit 5200 |
| Screen diagonal | 15 in |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Touchscreen |
| Serial interface Type: | RS232 |
| Storage | -20 to 60°C |
Related Provit Series Part No. :
| B&R Provit | Description | Inventory status |
| 5D5200.04 | B&R Provit 5200 Touch Digitizer Glass | In Stock |
| 5D5202.01 | Provit 5200 B and R Touch Screen Panel | Available Now |
| 5D5202.03 | B&R Provit 5200 HMI Touch Glass Repair | In Stock |
| 5D5212.01 | Provit 5200 B and R Touch Digitizer Glass | Available Now |
| 5D5202.05 | Provit 5200 B and R Touch Screen Monitor | In Stock |
| 5D5212.02 | B&R Provit 5200 Touch Screen Protective Film | In Stock |
| 5D5212.04 | B&R Provit 5200 Touch Screen Glass Repair | In Stock |
| 5D5212.26 | Provit 5200 B and R Touch Digitizer Glass | Available Now |
| 5D5213.01 | B and R Provit 5200 HMI Panel Glass Repair | Available Now |
| 5D5213.02 | B&R Provit 5200 Touch Screen Monitor | Available Now |
| 5D5501.20 | Provit 5500 B&R Keyboard Membrane Touch Screen | In Stock |
| B and R Provit | Description | Inventory status |
FAQ:
Question: How can the B&R Provit 5200 5D5212.04 lifespan of backlights be extended?
Answer:
• Set the display brightness to the lowest value that is still comfortable for the eyes
• Use dark images
• Reducing the brightness by 50% can result in an approximate 50% increase of the half-brightness time.
Question: How to change the B and R Provit 5200 5D5212.04 power supply?
Answer:
1. Disconnect the power supply.
2. Unlock fuse holders by turning the slotted bolt in the direction of arrow
3. Remove the fuse holder.
4. Remove the old fuse from the fuse holder.
5. Insert the new fuse.
6. Replace the fuse holder. It can be fastened by using a flat head screwdriver in the opposite direction of the arrow.
7. Reconnect the power supply.
Question: What measures can be taken against preventing after-image effect in Provit 5200 5D5212.04 LCD/TFT monitors?
Answer: There is no total solution; however, measures can be taken to significantly reduce this effect:
• Avoid static pictures or screen content
• Use screen savers (moving) when the display is not in use
• Frequent picture change
• Shut off the display when not in use
Turning off the background lighting (backlight) does not influence the prevention of the afterimage effect.
Common misspellings:
5D5212.4
5D212.04
5D52l2.04
5D5212.o4
5D52121.04
