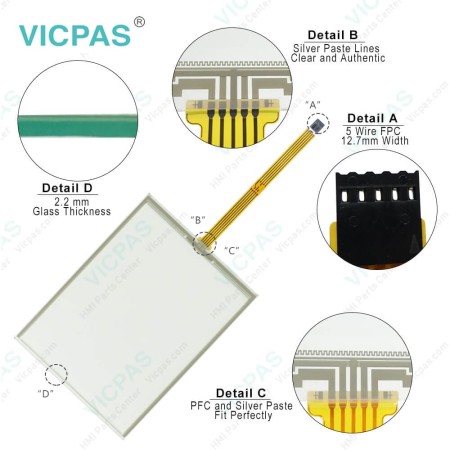

B&R 5PP120.1043-K08 Touch Digitizer Glass
| Categories | Power Panel 100/200 |
|---|---|
| Brand | VICPAS |
| Model | 5PP120.1043-K08 |
| Touch screen panel type | Resistance touch screen |
| Size | 10.4 inch |
| Brand | B&R |
| Warranty | 1 Year VICPAS Warranty |
| Model | B&R Power Panel 100 5PP120.1043-K08 |
| Shipping | DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, T/T, PayPal, Credit Card |
| Update Time | Nov 22,2024 |
B&R Power Panel 100 5PP120.1043-K08 Touch Panel Repair Replacement
Order each part separately is available
B&R Power Panel 100 Features
• 24 VDC supply voltage
• 2 USB 1.1 connections
• Ethernet 10/100 MBit interface
• CompactFlash card (type I) slot
• RS232 interface, modem-capable, not electrically isolated
• 2 operating mode switches (2 x 16 digit)
• 2 status LEDs (User or CompactFlash card access)
• Fan-free operation
• Touch screen (analog resistive), function keys or both)
• Filter glass (multiple-coated, non-reflective)
• Horizontal and vertical mounting orientations, numeric and alphanumeric keys)
• Software compatible with B&R 2000 PLC family
• Maximum 2 aPCI slots
• BIOS or Automation Runtime operating system
• Real-time clock (battery-buffered)
• Up to 128 MB SDRAM main memory
The Power Panel is equipped with a PC-compatible serial interface with a 16-byte FIFO buffer. This non-electrically isolated interface is primarily intended for programming Power Panel devices using Automation Studio. The RS232 can also be used as a general interface (e.g. third-party connections, barcode reader, etc.).
Specifications:
The table below describes the parameters of the 5PP120.1043-K08 Power Panel 100 Touchscreen Panel.
| Part Number : | 5PP120.1043-K08 |
| Product Line: | Power Panel 100 |
| Screen diagonal | 10.4 in |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Touchscreen |
| Serial interface Type: | RS232 |
| Storage | -20 to 70°C |
Related Power Panel 100 Series Part No. :
| Power Panel 100 | Description | Inventory status |
| 5PP120.0571-27 | B&R Power Panel 100 Touch Screen Panel Glass Protective Film | In Stock |
| 5PP120.1043-37 | PP100 B and R Touch Panel Glass Front Overlay Keypad Membrane Repair | Available Now |
| 5PP120.1043-37A | B&R Power Panel 100 Operator Panel Keypad Touch Panel Front Overlay | In Stock |
| 5PP120.1043-K08 | B and R Power Panel 100 Touch Digitizer Glass Replacement | In Stock |
| 5PP120.1043-K09 | PP100 B&R Touch Screen Panel Glass Front Overlay | In Stock |
| 5PP120.1214-37 | B and R Power Panel 100 HMI Touch Glass Protective Film Repair | In Stock |
| 5PP120.1214-37A | PP100 B&R Membrane Keypad Keyboard Replacement | Available Now |
| 5PP120.1505-37 | Power Panel 100 B&R Membrane Keypad Switch Touch Panel Protective Film | In Stock |
| 5PP120.1505-37A | B and R Power Panel 100 Touch Glass Front Overlay Operator Panel Keypad | Available Now |
| B and R PP100 | Description | Inventory status |
FAQ:
Question: What causes Power Panel 100 B&R 5PP120.1043-K08 screen burn-in?
Answer:
• Static images
• No screensaver
• Sharp transitions in contrast (e.g. black/white)
• High ambient temperatures
• Operation outside of specifications
Question:How can the B&R Power Panel 100 5PP120.1043-K08 service life of the backlight be extended?
Answer:
• By setting the display brightness to the lowest value that is still comfortable for the eyes
• By using dark images
• By reducing the brightness by 50%, which can result in an approximately 50% increase in the half-brightness time
Common misspellings:
5P120.1043-K08
5PP12.1043-K08
5PP120.1403-K08
5PP120.1o43-K08
5PPl20.1043-K08
