2711P-B7C22D9P Panelview Plus 7 Touch Screen Panel
2711P-B7C22D9P Panelview Plus 7 Touch Screen Panel
| Categories | PanelView Plus 7 Performance |
|---|---|
| Brand | VICPAS |
| Model | 2711P-B7C22D9P |
| Warranty | 365 Days |
| Brand | Rockwell Automation Allen Bradley |
| Product Line | Panelview Plus 7 |
| Supply | Panelview Plus 7 Terminals Membrane Keypad |
| Size | 6.5 inch |
| model | 2711P-B7C22D9P |
| Parts | Touchscreen Panel Glass Protective Film |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Update Time | Nov 21,2024 |

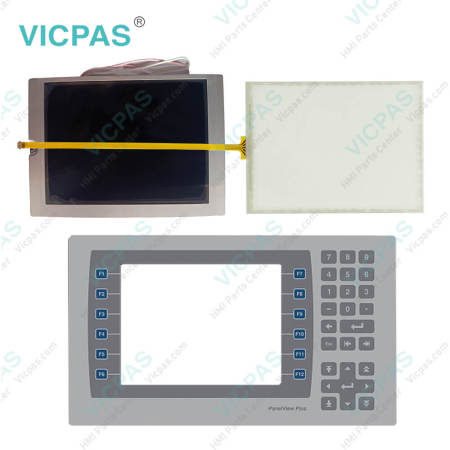

2711P-B7C22D9P Panelview Plus 7 Touch Screen Panel, Membrane Keypad, and LCD Display Repair Replacement
Order each part separately is available
The PanelView Plus 7 Performance Terminal 2711P-B7C22D9P Membrane Keypad uses an EtherNet/IP embedded switch. 2711P-B7C22D9P Keyboard Membrane communicate with ControlLogix and CompactLogix controllers over an Ethernet connection with DLR, linear, or star network topologies. The terminals can reside on EtherNet/IP networks that run integrated motion and CIP Sync™ applications without affecting performance. The terminal is not a consumer or producer of CIP Sync or motion packets.
PanelView Plus 7 Standard and Performance Models
Lead product for new applications
Extends our portfolio with more display sizes and certifications
Reflects our commitment to application longevity
Same FactoryTalk View software across all PanelView Plus product lines
The Standard and Performance clamps look different:
The clamps for the PanelView Plus 7 line are designed to create the right amount of clamping pressure around the unit with breakaway tabs to prevent over torqueing. Each clamp is two sided, so if you break one side, you can use the other.
The system is designed to allow customers to mount the terminals with no tools. See product literature for the clamping sequence.
At full release, there will be two different clamp styles. One for Standard (Grey) and one for Performance (Black). They are not meant to be used cross platform because the Performance (Black) clamps allow for a higher clamping torque and can crack the bezel on the Standard terminal.The PanelView Plus 7 Performance stainless steel models use 2711P-RTMC clamps
The PanelView™ Plus 7 Performance Terminal 2711P-B7C22D9P operator interface device. 2711P-B7C22D9P monitor and control devices that are attached to ControlLogix® and CompactLogix™ 5370 controllers on an EtherNet/IP™ network. Animated graphic and text displays provide operators a view into the operating state of a machine or process. Operators interact with the control system by using touch screen or keypad input.
Specifications:
The table below describes the parameters of the Panelview Plus 7 2711P-B7C22D9P Operator Panel Parts
| Part Number : | 2711P-B7C22D9P |
| Display Size: | 6.5 inches |
| Display Color | Amber |
| Warranty: | 365 days Warranty |
| Product Line: | Panelview Plus 7 |
| Input Type: | Membrane Keypad |
| Mounting position: | vertical |
| Communication: | Ethernet and RS-232 |
| Communication: | ControlNet |
| Software | FactoryTalk |
Related Allen Bradley Panelview Plus 7 Terminals Part No. :
| PanelView Plus 7 HMI | Description | Inventory status |
| 2711P-B7C22A9P | PanelView Plus 7 Membrane Keypad Touch Screen Panel Glass LCD Display | In Stock |
| 2711P-B7C22A9P-A | PanelView Plus 7 Membrane Keyboard Touch Panel Glass LCD Display Screen | Available Now |
| 2711P-B7C22A9P-B | Allen Bradley Panel Plus 7 Keypad Touch Screen Panel LCD Display | In Stock |
| 2711P-B7C22D9P | Allen Bradley Panel View Plus 7 Keypad Touch Screen LCD Display | In Stock |
| 2711P-B7C22D9P-A | PanelView Plus 7 Membrane Keypad Touchscreen LCD Display | In Stock |
| 2711P-B7C22D9P-B | PanelView Plus 7 Touch Panel Membrane Keyboard Keypad LCD Display Screen | In Stock |
| 2711P-B10C22A9P | PanelView Plus 7 Membrane Keyboard HMI Touch Screen LCD Display | Available Now |
| 2711P-B10C22A9P-A | Allen Bradley PanelView Plus 7 Keypad Touch Screen LCD Display Replacement | In Stock |
| 2711P-B10C22A9P-B | PanelView Plus 7 Touchscreen Membrane Operator Panel Keypad LCD Display | Available Now |
| 2711P-B10C22D9P | Allen Bradley Panel View Plus 7 HMI Panel Glass Keypad LCD Screen | In Stock |
| 2711P-B10C22D9P-A | Allen Bradley Panel View Plus 7 Keyboard Keypad Touch Screen LCD Display | In Stock |
| 2711P-B10C22D9P-B | PanelView Plus 7 Touch Screen Glass Membrane Keypad Switch LCD Display | In Stock |
| 2711P-B15C22A9P | PanelView Plus 7 Touch Screen Monitor Keyboard Keypad LCD Display Screen | Available Now |
| 2711P-B15C22A9P-A | Allen Bradley PanelView Plus 7 Panel Glass Membrane Keyboard LCD Display | In Stock |
| 2711P-B15C22A9P-B | PanelView Plus 7 Membrane Keyboard HMI Touch Screen LCD Display | Available Now |
| 2711P-B15C22D9P | PanelView Plus 7 Membrane Keyboard HMI Touch Screen LCD Display | Available Now |
| 2711P-B15C22D9P-A | Allen Bradley PanelView Plus 7 Keypad Touch Screen LCD Screen Replacement | In Stock |
| 2711P-B15C22D9P-B | PanelView Plus 7 Touchscreen Membrane Operator Panel Keypad LCD Display | Available Now |
| 2711P-B15C22D9PK | Allen Bradley Panel View Plus 7 HMI Panel Glass Keypad LCD Display | In Stock |
| AB PanelView Plus 7 | Description | Inventory status |
AB Panelview Plus 7 2711P-B7C22D9P Manuals PDF Download:
FAQ:
Question: How to reset Allen Bradley PanelView Plus 7 Performance Terminal 2711P-B7C22D9P desktop password?
Answer:
1. Press Reset Password from the Desktop Access Management dialog box.
2. Press Answer Challenge and enter the correct response to the current challenge question.
3. Press Clear Password to clear the current password and challenge question. The dialog box shows the updated status of the password and challenge information.
4. Press Close.
5. To set a new password and challenge question.
After clearing the password, you must set a new desktop password or change the desktop access to allow.
Question: What are the ways to reset the terminal 2711P-B7C22D9P without having to disconnect and reapply power?
Answer:
• From FactoryTalk View ME Station Configuration Mode, tap Reset.
• From the terminal desktop Start Menu, choose Programs>Restart System.
• To access Maintenance Mode, follow these steps.
a. Plug in a USB keyboard.
b. Press and hold the white box that appears in the bottom left corner when the terminal is booting up.
Question: How to disable 2711P-B7C22D9P Performance Terminal desktop access?
Answer:
1. Press Terminal Settings, then choose Desktop Access Setup.
2. To select Disallow, press Desktop Access. The Set Password button is enabled.
3. To define a new password and challenge question.
Question: What is the size of Allen Bradley 2711P-B7C22D9P Opertor Panel Keyboard?
Answer:The PanelView Plus 7 2711P-B7C22D9P Touch Screen Panel is 6.5-inch.
