2711P-B6M20D8 Membrane Keyboard Touch Screen Panel

Order each part separately is available

The 2711P-B6M20D8 PanelView Plus 6 is a product by Allen-Bradley which allows operator interface with a machine, enabling monitoring, controlling and the graphic display of information about the status of the machine. It provides user accessibility through the HIM keypad/color touchscreen. The 2711P-B6M20D8 comes with an active matrix TFT display, and a backlight with a 50,000-hour standby time. It comes with a user input keypad with function (F1-F10), numerical, and navigation keys. The 2711P-B6M20D8 has a 5.5-inch display size and display dimensions of 111 x 84 mm (4.37 x 3.3in.) with a display resolution of 320 x 240 (18-bit color graphics). The 2711P-B6M20D8 has an input voltage between 85 and 264V AC, (47-63 Hz nom) and operates with a maximum power consumption of 60 VA.

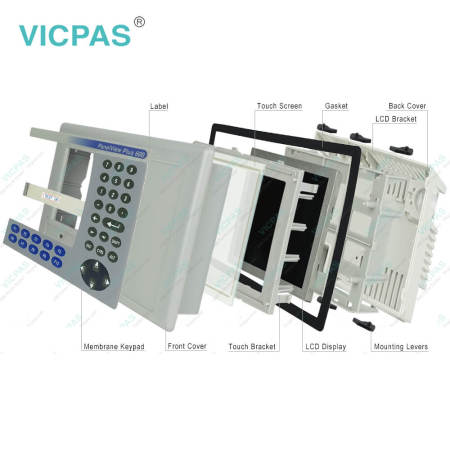

VICPAS supply Panelview Plus 6 2711P-B6M20D8 touchscreen glass, Bracket, Label, Plastic Shell, LCD Display, Gasket, Sticker, Mounting Levers and operator panel keypad for repair replacement, make the HMI running. We provide a 1-year warranty of the most product, which include most of touch screen panel, membrane keypad, LCD display and protective case shell housing. The Allen-Bradley 2711P-B6M20D8 PanelView terminal is effective in performance at a temperature range of 32 - 122°F and a storage temperature of -13 – 158°F. It measures 111 x 84 mm in dimensions.

The 2711P-B6M20D8 Panelview 6 has a weight of 930 g (2.05 lbs) and it can withstand an operating temperature of 0-55 °C (32-131 °F), a storage temperature of -25-70 °C (-13-158 °F) and can also work at a relative humidity between 5 and 95%. The 2711P-B6M20D8 has communication ports including an Ethernet port, USB ports, RIO and RS-232 Printer ports. It has an internal memory of 64 MB and application storage memory of 10 MB which runs on PanelBuilder32 software. At 11ms, the 2711P-B6M20D8 has an operational shock rating of 15g and a non-operational shock rating of 30g with an operational vibration of up to 2g (57-500 Hz). It has a NEMA Type 12, 13, 4X, IP54, IP65 enclosure rating.
