PanelView Plus 6 2711P-B6C20A8 Touch Screen Keypad

Order each part separately is available

The Allen-Bradley 2711P-B6C20A8 PanelView Plus 6 is an HMI device with a keypad and touchscreen capability for convenient control of machine modes and statuses. It also displays the machine’s statuses and modes graphically using the 5.5 inches color active matrix, Thin Film-Transistor display with an antiglare surface and an analog resistive touchscreen. The 2711P-B6C20A8 offers a 111mm x 84mm (4.37in x 3.3in) display area, with 320 x 240-pixel resolution (in 18-bit color graphics), and it has 300 cd/m2 Nits of display luminance. It uses a CCFL (Cold Cathode Fluorescent) backlight with a standby time of 50,000 hours and it is designed with an internal clock that can be backed up for a minimum of 5 years. Settings and controls can conveniently be used via the stainless-steel keypads with Functional (F1-F10), Navigational, and Alpha-Numerical keys, with an actuator rating of about a million presses, and a shock of 340G. The 2711P-B6C20A8 has a 64MB non-volatile flash memory/64MB Random Access Memory used for Bitmaps or recording data, and it supports an external 256MB compact memory flash card for memory expansion.

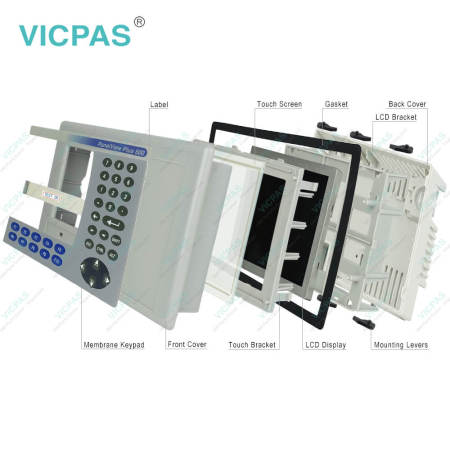

VICPAS supply Panelview Plus 6 2711P-B6C20A8 touchscreen glass, Bracket, Label, Plastic Case, LCD Display, Gasket, Sticker, Mounting Levers and keyboard membrane for repair replacement, make the HMI running. We provide a 1-year warranty of the most product, which include most of touch screen panel, membrane keypad, LCD display and protective case shell housing. The Allen-Bradley 2711P-B6C20A8 PanelView terminal is effective in performance at a temperature range of 32 - 122°F and a storage temperature of -13 – 158°F. It measures 111 x 84 mm in dimensions.

The 2711P-B6C20A8 utilizes the FactoryTalk View ME software to program the user’s applications, and it uses the base-configured RS-232, EtherNet, and the Data Highway (DH-485) communication interfaces for communication. The 2711P-B6C20A8 also has a USB port for connection to peripheral devices, and it requires a power supply with an input voltage range of 10-24V DC and a power output of 25W max at 1A and 24V DC. Its functional temperature ranges between 0 and 55 °C (32 and 131 °F) at 5-95% non-condensing relative humidity, and it can withstand an operating shock of 15G with 2G vibration. The 2711P-B6C20A8 is CE, c-UL, and UL-certified, and it is designed with a NEMA Type 12, 13, 4X, IP54, and IP65-rated casing. Its net weight is 930g (2.05lb) with dimensions of 167mm x 266mm x 98mm (6.58 x 10.47in x 3.86in).
