2711P-B12C4A7 Membrane Keypad 2711P-B12C4A7 Touch Screen Glass

2711P-B12C4A7 Membrane Keypad 2711P-B12C4A7 Touch Screen Glass

2711P-B12C4A7 Membrane Keypad 2711P-B12C4A7 Touch Screen Glass
2711P-B12C4A7 Membrane Keypad 2711P-B12C4A7 Touch Screen Glass2711P-B12C4A7 Membrane Keypad 2711P-B12C4A7 Touch Screen Glass2711P-B12C4A7 Membrane Keypad 2711P-B12C4A7 Touch Screen Glass2711P-B12C4A7 Membrane Keypad 2711P-B12C4A7 Touch Screen Glass2711P-B12C4A7 Membrane Keypad 2711P-B12C4A7 Touch Screen Glass
CategoriesPanelview Plus 1250
BrandVICPAS
Model2711P-B12C4A7
Warranty365 Days
BrandRockwell Automation Allen Bradley
Product LinePanelview Plus 1250
SupplyPanelview Plus 1250 Terminals Membrane keypad
Size12.1 inch
model2711P-B12C4A7
PartsTouchscreen Panel Glass Membrane Keypad
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download
Update TimeNov 9,2024
Detail Information

2711P-B12C4A7 Panelview Plus 1250 Touch Screen Panel, Membrane Keypad Switch, LCD Screen, LCD Display

Order each part separately is available

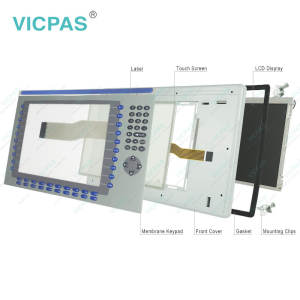

2711P-B12C4A7 Panelview Plus 1250 Membrane keypad switch, HMI Touch Glass, Label, LCD Display Panel, Plastic Case Body, Gasket and Mounting Clips Repair Replacement

The 2711P-B12C4A7 membrane keypad keyboard touchscreen repair kit is a quality HMI device that simplifies data and information entry as it supports both the touchscreen and keypad entry methods. The 2711P-B12C4A7 features an ideal operator terminal that can be used for machines and applications that do not require dynamic control of data and information. Therefore, 2711P-B12C4A7 eliminates the need for the user to know and understand all the commands and functions before using the machine.


The 2711P-B12C4A7 operator keyboard allows users to easily input and set application parameters using it both the touchscreen and its stainless steel domed membrane keypads with alpha-numeric, navigational, and functional keys (F1 through F20, K1 through K20). It has a standard logic module with factory pre-installed FactoryTalk View ME software, and with 64MB of installed compact Flash/RAM memory.


The 2711P-B12C4A7 comes in a NEMA Type 12, 13, 4X (indoor use only) rated enclosure, and it has a total shipping volume of 282mm x 416mm x 55mm (11.12in x 16.36in x 2.18in), with an average weight of 3.4kg (7.6lb). The 2711P-B12C4A7 has a full-color display type and it features increased illumination of the LED backlights, which serve to warn the users of a system failure. Its data plus store plug-ins serve to eliminate the data point limit. During the installation of this part, make sure that metal cuttings do not enter any components, which have been already installed in the panel. In addition, ensure that the cutout edges do not have burrs or sharp edges.


The 2711P-B12C4A7 comes with standard operator elements which include push buttons, indicators, numeric displays, alphanumeric data entry, and advanced graphics. The other included standard features on the 2711P-B12C4A7 keypad switch include 2 USB ports used for mouse and keyboard support. In addition, the 2711P-B12C4A7 comes with a compact flash slot that is used for transferring files and log data, including performing system upgrades. The 2711P-B12C4A7 provides a 1250 high-bright display for the outdoor installations. It comes with a conformal coating, allowing endurance even in harsh environments. The powerful graphics display provides the users of the 2711P-B12C4A7 with a clear and crisp interface.





Specifications:

The table below describes the parameters of the Panelview Plus 1250 2711P-B12C4A7 Operator Panel Parts

Part Number: 2711P-B12C4A7
Display Size: 12.1 inches
Display Color: Amber
Warranty: 365 days Warranty
Product Line: Panelview Plus 1250
Input Type: Touchscreen Keypad
Mounting Position: vertical
Communication: Ethernet and RS-232
Communication: ControlNet
Software: FactoryTalk


Related Allen Bradley Panelview Plus 1250 Terminals Part No. :

PanelView Plus 1250 HMI Description Inventory status
2711P-B12C4A1 PanelView Plus 1250 Membrane Keypad Touch Screen Panel LCD Display Enclosure In Stock
2711P-B12C4A2 PanelView Plus 1250 Membrane Keyboard Touch Panel Glass LCD Screen Plastic Shell Available Now
2711P-B12C4A6 PanelView Plus 1250 Keypad Touch Screen Panel LCD Display Plastic Cover Body In Stock
2711P-B12C4A7 Panel View Plus 1250 Keypad Touch Screen LCD Display Screen Plastic Cover Body In Stock
2711P-B12C4B1 PanelView Plus 1250 Membrane Keypad Touchscreen LCD Display Plastic Case In Stock
2711P-B12C4B2 PanelView Plus 1250 Touch Panel Membrane Keyboard Keypad LCD Screen Enclosure In Stock
2711P-B12C4D1 PanelView Plus 1250 Membrane Keyboard HMI Touch Screen LCD Display Plastic Shell Available Now
2711P-B12C4D2 PanelView Plus 1250 Membrane Keyboard HMI Touch Screen LCD Display Plastic Shell Available Now
2711P-B12C4D6 PanelView Plus 1250 Keypad Touch Screen LCD Screen Plastic Cover Body In Stock
2711P-B12C4D7 PanelView Plus 1250 Keypad Touch Screen LCD Screen Plastic Cover Body In Stock
2711P-B12C6A1 PanelView Plus 1250 Touchscreen Operator Panel Keypad LCD Display HMI Case Available Now
2711P-B12C6A2 Panel View Plus 1250 HMI Panel Glass Keypad LCD Screen Plastic Cover Body In Stock
2711P-B12C6A6 Panel View Plus 1250 Keyboard Keypad Touch Screen LCD Display Plastic Case In Stock
2711P-B12C6A7 PanelView Plus 1250 Touch Glass Membrane Keypad Switch LCD Screen Housing In Stock
2711P-B12C6B1 PanelView Plus 1250 Touch Screen Monitor Keyboard Keypad LCD Display HMI Case Available Now
2711P-B12C6B2 PanelView Plus 1250 Panel Glass Membrane Keyboard LCD Display Plastic Case In Stock
AB PanelView Plus 1250 Description Inventory status

AB Panelview Plus 1250 Manuals PDF Download:

  • 2711P-B12C4A7 Terminals User Manuals
  • panelview plus 1250 battery replacement Installation Instructions
  • PanelView Plus Operator Terminals 1250 dimensions datasheet manual
  • PanelView Plus 1250 Terminals and Display Modules
  • Allen Bradley PanelView Plus 1250 Terminals Operator Panel User Manual


  • FAQ:

    Question: How to change the Decimal Separator for Numeric Formats?

    Answer: You can change the decimal separator used in numerics for the current language. The default decimal separator is a period.
    1. Select Terminal Settings>Time/Date/Regional Settings>Regional Settings>Numeric Format. The field shows the default decimal separator. The field will accept a separator up to three characters.
    2. Enter up to three characters for the new separator.
    3. Click OK.


    Question: How to replace a 2711P-B12C4A7 communication module?

    Answer:
    1. Disconnect power from the terminal.
    2. Disconnect the communication cables from the module.
    3. Loosen the three screws that secure the communication module to the terminal.
    4. Carefully lift the communication module away from the terminal and set aside.
    5. Install the new communication module.


    Question: What steps need to be connectted the terminal 2711P-B12C4A7 to AC power?

    Answer:
    1. Verify that the terminal is not connected to a power source.
    2. Secure the AC power wires to the terminal block.
    Follow the markings on terminal blocks and terminal for proper connections.
    3. Secure the protective earth/ground wire to the marked position of the power input terminal block.
    4. On the 700 to 1500 devices, also secure the functional earth/ground wire to the functional earth terminal screw on the back of the display to ground bus.
    5. Apply AC power to the terminal.


    Question: What tools are required for 2711P-B12C4A7 installation?

    Answer:

  • • Panel cutout tools.
  • • Small, slotted screwdriver.
  • • Torque wrench (lb•in) for tightening the mounting clips on thePanelView Plus 700 to 1500 and PanelView Plus CE terminals.
