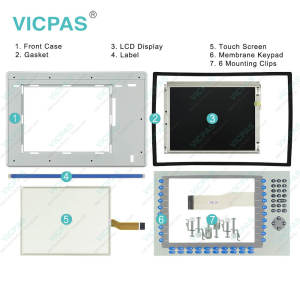

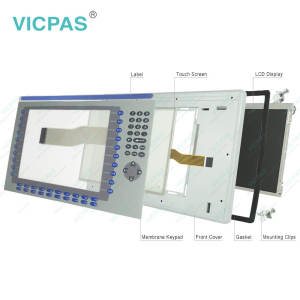

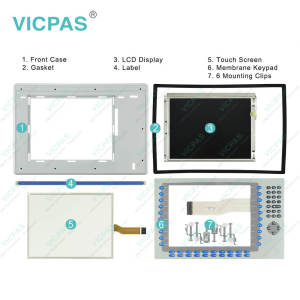

2711P-B12C4A2 Touchscreen 2711P-B12C4A2 Keypad Switch

FAQ:

Question: What tools are required for panel installation?

Answer:

• Panel cutout tools.

• Small, slotted screwdriver.

• Torque wrench (lb•in) for tightening the mounting clips on the PanelView Plus 700 to 1500 and PanelView Plus CE terminals.

Question: How to connect the terminal to DC power?

Answer:
1. Verify that the terminal is not connected to a power source.
2. Secure the DC power wires to the terminal block.
Follow the markings on terminal blocks and terminal for proper connections.
3. Secure the earth/ground wire.
• On the 400 and 600 terminals, secure the earth/ground wire to the functional earth/ground terminal on the input power terminal block.
• On the 700 to 1500 terminals, secure the earth/ground wire to the earth/ground terminal screw at the bottom of the display.
4. Apply 24V DC power to the terminal.

Question: What are the dimensions of Allen Bradley Panelview Plus 1250 terminals?

Answer: The 2711P-B12C4A2 terminals size is 12.1-inch.

Question: How to install Panelview plus 1250 HMI plastic case?

Answer: Enclosures The terminals must be mounted in a panel or enclosure to protect the internal circuitry. The terminals meet IP54 and NEMA Type 12/13 and 4X (indoor) ratings only when mounted in a panel or enclosure with the equivalent rating. When the terminal is not mounted in a panel, itis not secure or safe for operation. You must comply with NEMA Type4X (indoor) requirements for environmental specifications.

Question: How to rest the Allen Bradley PanelView 1250 2711P-B12C4A2 Terminal?

Answer: All PanelView Plus 1250 terminals have both a Reset switch and a Default switch on the side of the logic module.

• Reset

  Use the RESET switch to restart the terminal without having to disconnect and reapply power. Insert a thin probe into the hole marked RESET and press the switch. The terminal will perform a series of startup tests and run RSView ME or the loaded .MER application depending on how the terminal is configured.
• Default

  Safe Mode is a diagnostics mode where the system is reduced to a known state that allows recovery from a configuration or application problem. Use the DEFAULT switch with the RESET switch to start the terminal in Safe Mode. This is a diagnostics mode where the system is reduced to a known state that allows recovery from a software problem. Safe Mode ignores all user changes to the system and avoids any problem that is due to interactions with end-user software or changes.
• •Insert a thin probe into the hole marked DEFAULT and press the switch, then;
• • Insert the probe into the hole marked RESET and press the switch. The system will restart immediately into the Safe Mode.

• ---

  ATTENTION !

  Use a nonconducting object to press the RESET and DEFAULT switch. Do not use a conducting object such as a paper clip or you may damage the terminal. Do not use the tip of a pencil; graphite may damage the terminal.

  ---
