2711P-K4M3D PanelView Plus 400 Membrane Keyboard Keypad

2711P-K4M3D PanelView Plus 400 Membrane Keyboard Keypad

2711P-K4M3D PanelView Plus 400 Membrane Keyboard Keypad
2711P-K4M3D PanelView Plus 400 Membrane Keyboard Keypad2711P-K4M3D PanelView Plus 400 Membrane Keyboard Keypad2711P-K4M3D PanelView Plus 400 Membrane Keyboard Keypad2711P-K4M3D PanelView Plus 400 Membrane Keyboard Keypad2711P-K4M3D PanelView Plus 400 Membrane Keyboard Keypad
CategoriesPanelView Plus 400
BrandVICPAS
Model2711P-K4M3D
BrandAllen Bradley
Warranty365 Days
Product LinePanelView Plus 400
Size3.8 Inch
SupplyPanelView Plus 400 Membrane Keypad LCD Housing
Parts2711P-K4M3D Keypad LCD Plastic Shell
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update TimeDec 23,2024
Detail Information

2711P-K4M3D PanelView Plus 400 Membrane Keyboard Keypad Switch LCD Screen Housing Replacement

Order each part separately is available

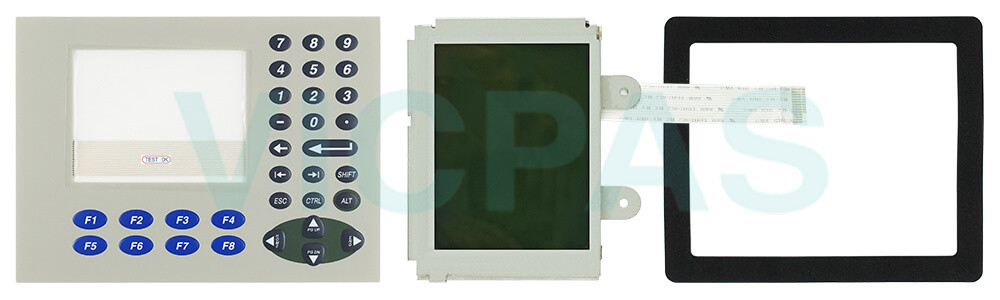

2711P-K4M3D PanelView Plus 400 Membrane Keyboard Keypad Switch LCD Screen Housing Gasket Label Sticker Protection Board Mounting Levers Replacement

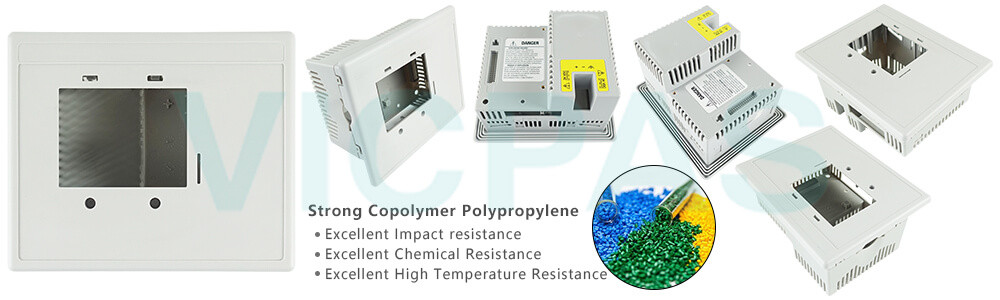

VICPAS supply Panelview Plus 400 2711P-K4M3D membrane keypad switch lcd display plastic case shell Label Sticker Protection Board Mounting Levers Gasket for repair replacement, make the HMI running. We provide a 365 days VICPAS warranty of the most product, which include most of touch screen panel, membrane keypad, LCD display and protective case shell housing.


The Allen-Bradley 2711P-K4M3D is a DC-powered PanelView Plus 400 terminal that comes with Ethernet, DH-485, and RS-232 modular communication ports and 1 USB port. It has an 18 to 30 Volts DC input voltage, a 24 Volts DC nominal input voltage, and 25 W or 1 Amps at 24 Volts DC of maximum DC power consumption. When operating, make sure that its temperature is within 0 to 55 degrees Celsius and that it also has a -25 to 70 degrees Celsius ambient temperature range when it is in storage. Its approximate measurements are 6 x 7.28 x 3.54 inches and it has a weight of 1.24 pounds or 562 grams. Note that the 2711P-K4M3D terminal comes with a NEMA Type 12, 13, 4X, IP54, and IP65 enclosure rating.


Featured on this terminal are a keypad input and a grayscale display, which is a monochrome passive matrix FSTN type that has a 32-level grayscale resolution of 320 x 240. Its screen measures 3.8 inches and has a total display area of 3.07 x 2.32 inches and is equipped with a backlight. The keypad of the 2711P-K4M3D terminal is made up of 8 poly-domed membrane keys that are labeled from F1 to F8 and can be operated with or without gloves. To configure this terminal, operators can only use the FactoryTalk View Machine Edition software that comes preinstalled. The available memory on the 2711P-K4M3D terminal is 64 MB, with 10 MB allotted for application storage, and its firmware version ranges from Version 3.20 to 5.10. This terminal also comes equipped with a battery-backed clock for timestamping data.



Specifications:

The table below describes the parameters of the 2711P-K4M3D PanelView Plus 400 membrane keyboard keypad switch.

Part Number : 2711P-K4M3D
Product Line: PanelView Plus 400
Screen diagonal 3.5 in
Warranty: 180 Days Warranty
Input Power 24 VDC
Display Color Color
Input Power AC
Input Type: Keypad
Communication: Remote I/O and RS-232 Printer Port
Software FactoryTalk View ME


Related PanelView Plus 400 Series Part No. :

PanelView Plus 400 Description Inventory status
2711P-K4C20A PanelView Plus 400 Protection Board Terminals Keypad LCD Display HMI Case In Stock
2711P-K4C20D PanelView Plus 400 Membrane keypad Switch Protection Board LCD Screen Plastic Case In Stock
2711P-K4C3A PanelView Plus 400 Keypad Switch LCD Display Screen Protection Board Plastic Shell Available Now
2711P-K4C3D PanelView Plus 400 Keypad LCD Display Panel Enclosure Protection Board Repair In Stock
2711P-K4C5A PanelView Plus 400 Protection Board Membrane Keypad Switch LCD Display HMI Case Available Now
2711P-K4C5D PanelView Plus 400 Membrane Keypad Protection Board LCD Display Screen Plastic Case In Stock
2711P-K4M20A PanelView Plus 400 Terminals Keypad Protection Board LCD Display Panel Plastic Shell In Stock
2711P-K4M20D PanelView Plus 400 Membrane Keyboard LCD Display Protection Board Plastic Case In Stock
2711P-K4M3A

PanelView Plus 400 Keypad Switch LCD Screen Housing Protection Board Repair

Available Now
2711P-K4M3D PanelView Plus 400 Protection Board Keyboard LCD Display Plastic Case Replacement In Stock
2711P-K4M5A PanelView Plus 400 Membrane Keypad Protection Board LCD Display Panel Housing Available Now
2711P-K4M5D PanelView Plus 400 Terminal Keypad Switch LCD Screen Protection Board Enclosure In Stock
PanelView Plus 400 Description Inventory status

Common misspellings:

2711PK4M3D

27l1P-K4M3D

271lP-K4M3D

2711P-KAM3D
