2711P-K4C5D PanelView Plus 400 Membrane Keyboard Keypad

2711P-K4C5D PanelView Plus 400 Membrane Keyboard Keypad

2711P-K4C5D PanelView Plus 400 Membrane Keyboard Keypad
2711P-K4C5D PanelView Plus 400 Membrane Keyboard Keypad2711P-K4C5D PanelView Plus 400 Membrane Keyboard Keypad2711P-K4C5D PanelView Plus 400 Membrane Keyboard Keypad2711P-K4C5D PanelView Plus 400 Membrane Keyboard Keypad2711P-K4C5D PanelView Plus 400 Membrane Keyboard Keypad
CategoriesPanelView Plus 400
BrandVICPAS
Model2711P-K4C5D
BrandAllen Bradley
Warranty365 Days
Product LinePanelView Plus 400
Size3.8 Inch
SupplyPanelView Plus 400 Membrane Keypad LCD Enclosure
Parts2711P-K4C5D Membrane Keypad LCD Screen Case
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update TimeNov 22,2024
Detail Information

2711P-K4C5D PanelView Plus 400 Membrane Keyboard Keypad Switch LCD Display Plastic Shell Repair Replacement

Order each part separately is available

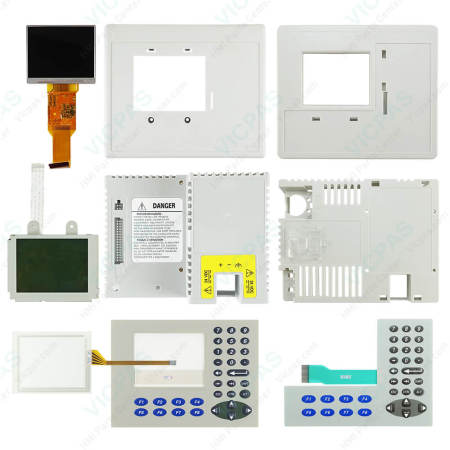

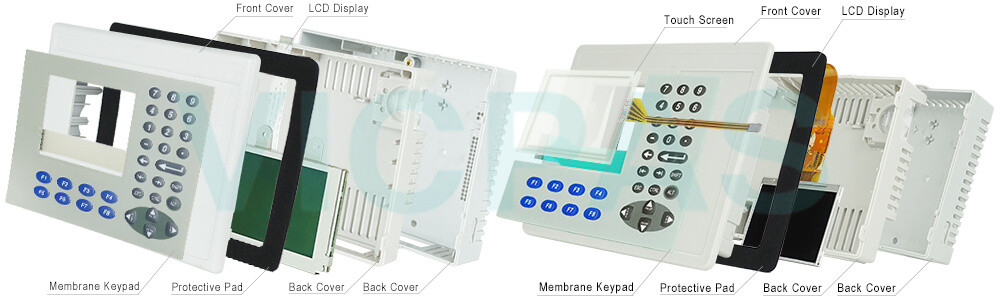

2711P-K4C5D PanelView Plus 400 Membrane Keyboard Keypad Switch LCD Display Plastic Shell Gasket Label Sticker Protection Board Mounting Levers Repair Replacement

The 2711P-K4C5D Panelview Plus 400 Color Terminal by Allen-Bradley is an operator interface device with keypad inputs and DC power which provides real-time monitoring and control of various industrial automated applications. The device offers users unique interface and control via its 3.5-inch, active matrix, thin-film transistor display, with 71mm x 53mm (2.8in x 2.1in) display dimensions, and a 320 x 240 resolution in 18-bit color graphics. The 2711P-K4C5D features a non-replaceable LED backlight with 50,000 hours of standby time and a battery-backed real-time clock. It allows for easy input of user data and application parameters via its poly-domed membrane keypad with 8 (F1 through F8) function keys. It comes with 64MB of system RAM, with 64MB of user memory, and it uses 20MB of memory for application storage. It uses a DC power supply, with an input voltage range of 18-30V DC (24V DC nominal), and a maximum power consumption of 25W at 1A and 24V DC.


VICPAS supply Panelview Plus 400 2711P-K4C5D membrane keypad switch lcd display panel plastic case cover Label Sticker Protection Board Mounting Levers Gasket for repair replacement, make the HMI running. We provide a 365 days VICPAS warranty of the most product, which include most of touch screen panel, membrane keypad, LCD display and protective case shell housing.


The 2711P-K4C5D communicates via the integral, base-configured RS-232 serial communication port, which supports DF1 serial, DH-485 serial, and multi-vendor serial drivers, and it is configured with the Factory Talk View Studio software. The device has an operating temperature range of 32-131 oF, a non-condensing relative humidity range of 5-95% and a storage temperature range of -13-158 oF. The 2711P-K4C5D is designed to withstand a 15G operational shock, with a 1G vibration at 57-500Hz, and it comes in a NEMA Type 12, 13, 4X, IP54, or IP65 enclosure. It weighs about 562g (1.24lb), with aggregate dimensions of 152mm x 185mm x 90mm (6in x 7.28in x 3.54in), and is c-UL, UL, CE, and C-TICK-certified.





Specifications:

The table below describes the parameters of the 2711P-K4C5D PanelView Plus 400 membrane keyboard keypad switch.

Part Number : 2711P-K4C5D
Product Line: PanelView Plus 400
Screen diagonal 3.5 in
Warranty: 180 Days Warranty
Input Power 24 VDC
Display Color Color
Input Power AC
Input Type: Keypad
Communication: Remote I/O and RS-232 Printer Port
Software FactoryTalk View ME


Related PanelView Plus 400 Series Part No. :

PanelView Plus 400 Description Inventory status
2711P-K4C20A PanelView Plus 400 Protection Board Terminals Keypad LCD Display HMI Case In Stock
2711P-K4C20D PanelView Plus 400 Membrane keypad Switch Protection Board LCD Screen Plastic Case In Stock
2711P-K4C3A PanelView Plus 400 Keypad Switch LCD Display Screen Protection Board Plastic Shell Available Now
2711P-K4C3D PanelView Plus 400 Keypad LCD Display Panel Enclosure Protection Board Repair In Stock
2711P-K4C5A PanelView Plus 400 Protection Board Membrane Keypad Switch LCD Display HMI Case Available Now
2711P-K4C5D PanelView Plus 400 Membrane Keypad Protection Board LCD Display Screen Plastic Case In Stock
2711P-K4M20A PanelView Plus 400 Terminals Keypad Protection Board LCD Display Panel Plastic Shell In Stock
2711P-K4M20D PanelView Plus 400 Membrane Keyboard LCD Display Protection Board Plastic Case In Stock
2711P-K4M3A

PanelView Plus 400 Keypad Switch LCD Screen Housing Protection Board Repair

Available Now
2711P-K4M3D PanelView Plus 400 Protection Board Keyboard LCD Display Plastic Case Replacement In Stock
2711P-K4M5A PanelView Plus 400 Membrane Keypad Protection Board LCD Display Panel Housing Available Now
2711P-K4M5D PanelView Plus 400 Terminal Keypad Switch LCD Screen Protection Board Enclosure In Stock
PanelView Plus 400 Description Inventory status

Common misspellings:

2711PK4C5D

27l1P-K4C5D

271lP-K4C5D

2711P-KAC5D
