6AG1641-0CA01-4AX1 SIPLUS OP77B Siemens Keypad and Case
6AG1641-0CA01-4AX1 SIPLUS OP77B Siemens Keypad and Case
| Categories | Simatic OP7 OP77A/B OP 73 |
|---|---|
| Brand | VICPAS |
| Model | 6AG1641-0CA01-4AX1 |
| Warranty | 180 days warranty |
| Brand | Siemens Simatic OP77B |
| Shipping | DHL/FedEx/UPS/TNT/EMS |
| Models | 6AG1641-0CA01-4AX1 |
| Parts | Keypad and Shell |
| Product Line | Siemens Operator Panel |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, T/T ,Credit Card, Western Union |
| Update Time | Nov 22,2024 |

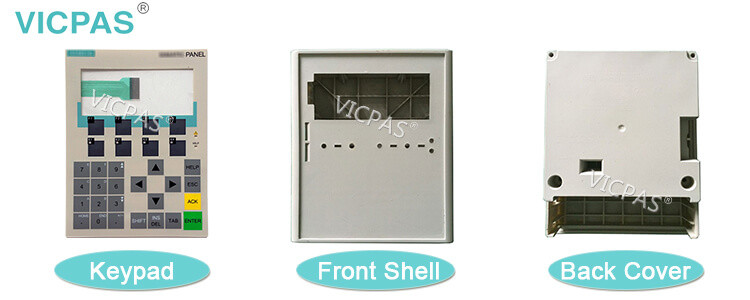

6AG1641-0CA01-4AX1 SIPLUS OP77B Siemens Operator Panel Membrane Keypad, Screws, Power Supply Connector, Gasket, Mounting Clips and Plastic Shell Case Repair Replacement
Order each part separately is available
The 6AG1 641-0CA01-4AX1 SIPLUS OP77B Siemens Keypad, Mounting Clips, Screws, Power Supply Connector, Gasket and Case graphics can be used as new parts to repair the old operator panel keypad. Siemens op77b can also be used as simple on-screen graphics. In the configuration tool, a library is available containing an extensive range of graphics and a wide variety of objects. All editors with an OLE interface can be used as graphics editors (such as PaintShop, Designer or CorelDraw).
The Siemens OP77B 6AG1641-0CA01-4AX1 overview:
Compact Operator Panel for operator control and monitoring of machines and plants
Graphics in a new dimension – small and smart
Pixel-graphics 4.5" LC display, monochrome
23 system keys, 8 freely-configurable and freely-inscribable function keys (4 with LEDs)
All interfaces (e.g. MPI, PROFIBUS DP) are onboard interfaces.
Together with OP 77B, successor of the successful OP7
The 6AG1641-0CA01-4AX1 op77b uses an MMC (Multi Media Card), tested and approved by Siemens AG can be used as an external storage medium. The memory card is an option and can be ordered separately. The OP77B HMI device fulfills the requirements stipulated in the law on EMC in Germany as well as the EMC guidelines of the European Union.
Specifications:
The table below describes the parameters of the SIPLUS OP77B 6AG1 641-0CA01-4AX1 Operator Panel keypad and case.
| Part Number : | 6AG1641-0CA01-4AX1 |
| Product Line: | Siemens Simatic OP77b |
| Product's Size: | 4.5 inches |
| Warranty: | 180 Days Warranty |
| Material: | Polyester or Polycarbonate |
| Rated Voltage: | DC 5V 1mA |
| Operating Temp.: | -10℃～+80℃ |
| Storage Temp.: | -20℃～+70℃ |
| Conductive Trace: | Silver or Copper |
| Life Cycle: | 5 Million Cycles(up to) |
Related Siemens Simatic OP77 Part No. :
| Siemens OP77a OP77b HMI | Description | Inventory status |
| 6AV6641-0CA01-0AX0 | SIMATIC OPERATOR PANEL OP77B Keypad and Case Shell | In Stock |
| 6AV6641-0CA01-0AX1 | OPERATOR PANEL OP77B (2C) Keyboard and Plastic Case Shell | In Stock |
| 6AV6641-0BA11-0AX1 | SIMATIC OPERATOR PANEL OP77A Keypad and Case Shell Cover | In Stock |
| 6AV6641-0BA11-0AX0 | Siemens OP77a Membrane Keypad and Front Case Shell | In Stock |
| 6AG1641-0CA01-4AX1 | SIPLUS HMI OP77B Membrane Keyboard and Case Shell | In Stock |
| 6AG1641-0CA01-4AX0 | SIPLUS OP77B Siemens Keypad and Case Shell Cover | In Stock |
| 6AV6651-1CA01-0AA0 | Starter Package OP77A OP 77A Panel Keypad and Case | In Stock |
| 6AV6651-1BA01-0AA0 | Starter Package OP77A OP 77B Panel Keyboard and Plastic Case Shell | In Stock |
| Simatic OP77 Operator Panel | Description | Inventory status |
Complete view of all series Siemens HMI Parts
Siemens OP77B Manual PDF Download:
FAQ:
Question: How to Backup and restore a program on SIPLUS OP77B 6AG1641-0CA01-4AX1 Operator panel?
Answer: This feature allow to upload only the compiled file. Let's call an image file downloaded to the Panel. Image file executed only on the panel and you can restoreit using Prosave software to the same panel again or another panel with the same MLFB. You will not be able to modify any thing in this file. And also you do not need to buy a licenced software (WinCC flexible), you can backup and restore using Prosave software and it is a free ware and can be downloaded from siemens Website.
Then follow the instructions of Siemens technical support: Siemens Simatic OP77A OP77B Backup
Question: What software does SIPLUS OP77B 6AG1641-0CA01-4AX1 operator panels use?
Answer: It is SIMATIC WinCC Flexible software, that is an integrated family of tools for configuring the Siemens OP77B 6AG1641-0CA01-4AX1 operator panels operator units. The uniformity of configuration software reduces training, maintenance and updating requirements . More details download the PDF Siemens Software WinCC-flexible 2008
Question: What is the difference between OP77A vs OP77B?
Answer: The functions of these two products are the same, but his internal configuration is partially different. The Siemens OP77A version has 256 KB memory and the Simatic OP77b version 1MB + optional MMC. The A-version definitely has an RS485 interface. Aad The B version also has USB, RS232 and RS422
Question: How do you back transfer the projects of Siemens OP77B 6AG1641-0CA01-4AX1 Simatic Panel?
Answer:Back transfer of the project: This feature allow to have a copy of the WinCC project from Simatic Panel. In this case, you can open this project from WinCC flexible and modify if you want.
Then follow the instructions of Siemens technical support: How do you back transfer the projects of an operator panel and what should you watch out for?
Question: What is the Siemens Simatic 6AG1641-0CA01-4AX1 OP77B price of membrane keypad and case?
Answer: Submit a fast quote, send VICPAS an email for best price.
