Power Panel 65 4PP065.0351-K02 Keypad Touchscreen Repair

Power Panel 65 4PP065.0351-K02 Keypad Touchscreen Repair

Power Panel 65 4PP065.0351-K02 Keypad Touchscreen Repair
CategoriesPower Panel 65
BrandVICPAS
Model4PP065.0351-K02
BrandB&R
Size3.5 inch
Warranty1 Year VICPAS Warranty
ModelB&R Power Panel 65 4PP065.0351-K02
ShippingDHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Download
Update TimeDec 25,2024
Detail Information

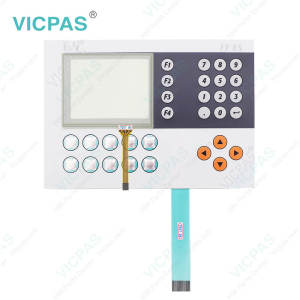

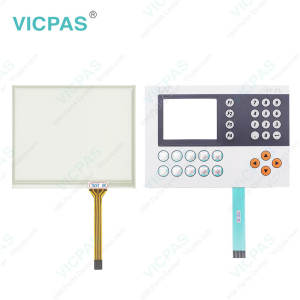

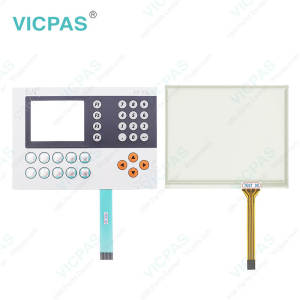

B&R Power Panel 65 4PP065.0351-K02 Membrane Keypad Touch Panel Repair Replacement


Power Panel 65 4PP065.0351-K02 Keyboard Membrane Touchscreen Glass

B&R PP65 4PP065.0351-K02 touch screen devices are equipped with a touch controller that supports hardware calibration. This means that devices are pre-calibrated when delivered. This feature is a particularly helpful advantage for replacement parts because recalibration is usually no longer necessary when replacing the device (identical model/type). Nevertheless, calibrating the device is still recommended in order to achieve the best results and to better adapt the touch screen to the user's preferences.


The PP65 4PP065.0351-K02 is equipped with a powerful Geode LX800 processor with 500 MHz clock frequency. With this computing power, the PP65 provides performance that was previously only achieved by the PP400. The PP65 is therefore especially suitable for multi-axis applications that require lots of computing power but only have limited space in the control cabinet. The compact dimensions of the PP45 have been taken over in this case.


The Power Panel 65 4PP065.0351-K02 is an especially compact addition to the proven Power Panel product family. Modular fieldbus interfaces ensure flexible integration in all configurations.
Ethernet, POWERLINK and X2X Link are used for the communication system. Additionally, these devices have been equipped with a slot for interface modules. Depending on requirements, the Power Panel 65 can be expanded with CAN bus, a PROFIBUS DP slave or an RS485/RS232 interface, making it perfectly suited for demanding tasks. Customized panel overlay designs are also available.
• Cost-effective complete solution
• Compact dimensions
• Integrates controller, visualization and I/O interface



Specifications:

The table below describes the parameters of the 4PP065.0351-K02 Power Panel 65 Touchscreen Panel Membrane Keypad.

Part Number : 4PP065.0351-K02
Product Line: Power Panel 65
Screen diagonal 3.5 in
Warranty: 365 Days Warranty
Input Power 24 VDC
Display Type: TFT color
Mounting position: vertical
Input Type: Touchscreen/Keypad
Function keys: 14 (with slide-in labels)
Storage -20 to 70°C


Related Power Panel 65 Series Part No. :

Power Panel 65 Description Inventory status
4PP065.0351-K02 Power Panel 65 B&R Touch Screen Panel Glass Membrane Keyboard Replacement In Stock
4PP065.0571-K07 B&R PP65 Touch Screen Panel Membrane Switch Replacement Available Now
4PP065.0571-K68 B and R Power Panel 65 Membrane Keypad Touchscreen Panel Repair Available Now
4PP065.0573-K03 Power Panel 65 B&R Touch Panel Protective Film Repair Kit In Stock
4PP065.1043-K02 Power Panel 65 B&R Front Overlay MMI Touch Glass Replace In Stock
4PP065.1043-K04 Power Panel 65 B and R Membrane Switch Touchscreen Glass In Stock
4PP065.1043-K07 B&R Power Panel 65 Touchscreen Membrane Keypad Keyboard Available Now
4PP065.1043-K09 B and R PP65 HMI Touch Screen Panel Membrane Keypad Replacement Available Now
4PP065.1043-K13 REV.E0 Power Panel 65 Touch Screen Panel Keyboard Membrane Replacement Kit In Stock
4PP065.1043-K14 Power Panel 65 B and R Touch Screen Terminal Keypad Repair In Stock
B&R PP65 HMI Description Inventory status

B&R Power Panel 65 Manuals PDF Download:

  • B&R Power Panel 65 User's Manual

  • FAQ:

    Question:How to removing the Power Panel 65 4PP065.0351-K02 CompactFlash card?

    Answer:
    How to removing the Power Panel 65 4PP065.0351-K02 CompactFlash card?
    How to removing the Power Panel 65 4PP065.0351-K02 CompactFlash card?
    How to removing the Power Panel 65 4PP065.0351-K02 CompactFlash card?
    Rotate the orange CompactFlash safety latch away from the CompactFlash slot (1). Then press the CompactFlash ejection lever (2) with a screwdriver until the CompactFlash card is ejected. The CompactFlash card can now be removed by hand (3).


    Question: How to install the B and R PP65 4PP065.0351-K02 interface modules?

    Answer:
    How to install the B and R PP65 4PP065.0351-K02 interface modules?
    1) Remove the screws from the cover.
    2) Remove the cover.
    3) Insert the interface module into the PP65.
    4) Apply light pressure until the interface module is inserted all the way.
    5) Secure the interface module with the screws (max. 0.6 Nm).


    Question:How can B and R Power Panel 65 4PP065.0351-K02 screen burn-in be avoided?

    Answer:
    There is no perfect solution. There are ways to significantly reduce this effect, however:
    • Avoid static images or screen content.
    • Use screensavers (animated) if the display is not in use.
    • Frequent picture change
    • Turn off the display when not in use.
    Turning off the backlight does not help prevent screen burn-in.


    Common misspellings:

    4PP065.0351-K0

    4PP065.035-K02

    4PP0650.351-K02

    4PP065.035l-K02

    4PP0065.0351-K02
