Higgstec T156C-5RB055N-0A28R0-355HP Touch Panel
Higgstec T156C-5RB055N-0A28R0-355HP Touch Panel

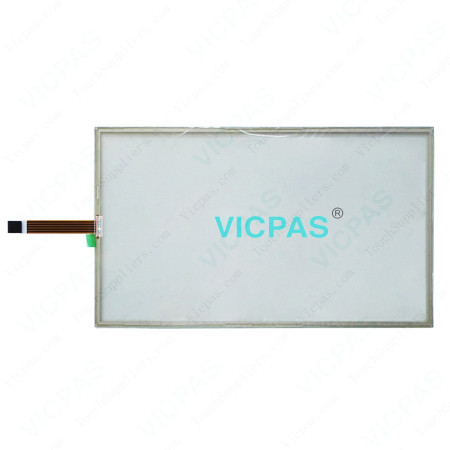

Higgstec T156C-5RB055N-0A28R0-355HP Touch Screen Panel Glass Repair
VICPAS supply T156C-5RB055N-0A28R0-355HP HMI panel glass with VICPAS 365 days warranty and support Urgent Worldwide Shipping. A modification of our 5-wire resistive technology suitable to be used in full outdoor applications, where bright sunlight can potentially make the T156C-5RB055N-0A28R0-355HP touch screen unreadable. T156C-5RB055N-0A28R0-355HP Touch Screen Monitor Higgstec's Sunlight Readable solution dramatically reduces reflectance and increases contrast ratio, while also preventing birefringence when the screen is viewed through polarizer sunglasses, making T156C-5RB055N-0A28R0-355HP Touch Screen Panel a popular choice for military, automotive and other outdoor use applications.
A polarizer and two layers of 1/4 wavelength retardation film are added to the stack-up of our 5-wire T156C-5RB055N-0A28R0-355HP resistive touch panel. In addition, the ITO coated film is made from non-PET isotropic material. When an incoming light ray passes through the touch panel it is transformed from unpolarized light into circular-polarized light. Then as it is reflected, it is transformed again from circular-polarized light into linear-polarized light. The T156C-5RB055N-0A28R0-355HP Touch Digitizer Glass HMI light ray is unable to pass back through the front polarizer, and internal reflection is eliminated.
Specifications:
The table below describes the parameters of the Higgstec T156C-5RB055N-0A28R0-355HP Touchscreen Parts.
| Part Number: | T156C-5RB055N-0A28R0-355HP |
| Display: | TFT |
| Warranty: | 365 days Warranty |
| Size: | 15.6 inch |
| Light Transmittance: | 80% ± 3% |
| Resolution: | 4096 X 4096 |
| Number of Touches: | Single |
| Operation Temperature: | -10～+70°C |
| Response time: | ≦ 20ms |
| Surface Hardness: | ≧ 3H |
Related Higgstec Touch Screen HMI Part No. :
| Higgstec Touch Screen | Description | Inventory status |
| Higgstec Touch Panel | Description | Inventory status |
Higgstec Touch Screen Panel HMI Manuals PDF Download:
FAQ:
Question: Attention of Higgstec T156C-5RB055N-0A28R0-355HP Touch Panel Mounting Condition?
Answer:
(1) The gasket support of the T156C-5RB055N-0A28R0-355HP touch panel must be allocated outside of Viewable Area. Reserve enough clearance between the T156C-5RB055N-0A28R0-355HP panel surface and enclosure for normal panel operation.
To avoid pressing error, please retain enough space between the T156C-5RB055N-0A28R0-355HP surface panel and Bezel.
(2) Bezel opening must not touch T156C-5RB055N-0A28R0-355HP touch digitizer Viewable Area; Bezel opening must be designed between T156C-5RB055N-0A28R0-355HP touchscreen panel screen Viewable Area and Active Area.
(3) We recommend elastic material support.
(4) Due to the conductive characteristic of the panel backside, prevent metal contact after mounting.
(5) Do not use adhesive to bond top surface (ITO Film) of T156C-5RB055N-0A28R0-355HP touch panel with enclosure.
(6) Proper grounding of the controller at all times assures normal operation.
(7) During assembly. Please take into consideration the variance in the different module designs, whether it would cause physical, cosmetic or functional damages to the T156C-5RB055N-0A28R0-355HP touch panel when completing the assembly.
(8) After installation, please perform 4 point and 25-point calibration.
Common misspellings:
T156C-5B055N-0A28R0-355HP156C-5RB055N-0A28R0-355HP
T156C-R5B055N-0A28R0-355HP
T156C-5RB055N-0A28RO-355HP
