6AG1647-0AA11-2AX1 Simatic HMI KTP400 BASIC MONO PN Panel
6AG1647-0AA11-2AX1 Simatic HMI KTP400 BASIC MONO PN Panel

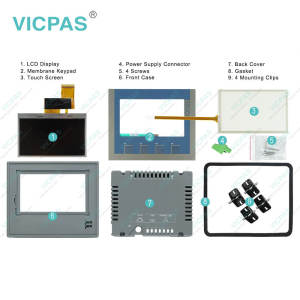

6AG1647-0AA11-2AX1 Siemens Simatic HMI KTP400 Basic MONO PN Touch Sreen Panel Glass, Overlay, Gasket, Mounting Clips, Plastic Cover Body, Power Supply Connector, Screws and LCD Display Repair Replacement
Order each part separately is available
6AG1647-0AA11-2AX1 SIMATIC HMI KTP400 Basic mono PN, Basic Panel, Key/touch operation, 4" STN display, 4 gray levels, PROFINET interface, configurable as of WinCC flexible 2008 SP2 Compact/ WinCC BasicV10.5/ STEP 7 Basic V10.5, contains open-source software, which is provided free of charge see enclosed CD
The visualization of Siemens KTP400 Basic allows for considerably increased process quality with compact plants or smaller applications. Featuring all important HMI basic functions, SIMATICHMI Basic Panels Generation thus opens up completely new possibilities in terms of operation and monitoring in the field of mechanical engineering at a particularly attractive price. Besides, These also support vertical configuration. Their high resolution and color depth of 64,000 colors facilitate improved process visualization. The displays’ brightness is dimmable up to 100 %, offering optimum flexibility.
VICPAS supply 6AG1647-0AA11-2AX1 Siemens KTP400 Basic touch panel, Overlay, Plastic Shell, Power Supply Connector, Gasket, Mounting Clips, Screws and LCD display. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 6AG1647-0AA11-2AX1 Siemens KTP400 Basic HMI Parts.
| Part Number : | 6AG1647-0AA11-2AX1 |
| Touchscreen: | colour LCD display |
| Design of display | STN |
| Warranty: | 365 days Warranty |
| Product Line: | Siemens KTP400 Basic |
| Active power input, typ.: | 3 W |
| Mounting position: | vertical |
| Key Features: | Touch screen support |
| Language: | Worldwide |
| Rated value (DC) | 24 V |
Related Siemens KTP400 Part No. :
| Siemens KTP400 | Description | Inventory status |
| 6AV6647-0AA11-3AX0 | SIMATIC HMI KTP400 BASIC MONO PN | In Stock |
| 6AV6647-0AK11-3AX0 | SIMATIC HMI KTP400 BASIC COLOR PN | In Stock |
| 6AV2124-2DC01-0AX0 | SIMATIC HMI KTP400 COMFORT | Available Now |
| 6AG1124-2DC01-4AX0 | SIPLUS HMI KTP400 COMFORT | In Stock |
| 6AG1123-2DB03-2AX0 | SIPLUS HMI KTP400 BASIC | In Stock |
| 6AV2123-2DB03-0AX0 | SIMATIC HMI KTP400 BASIC | In Stock |
| 6AG1647-0AA11-2AX0 | SIPLUS KTP400 BASIC MONO PN 3,8" | Available Now |
| 6AV2125-2DB23-0AX0 | SIMATIC HMI KTP400F MOBILE | In Stock |
| 6AG1647-0AA11-2AX1 | SIPLUS KTP400 Basic mono PN | Available Now |
| SIMATIC HMI KTP400 | Description | Inventory status |
Siemens KTP400 Basic HMI Manuals PDF Download:
FAQ:
Question: What is the dimensions of 6AG1647-0AA11-2AX1 Siemens KTP400 touch panel??
Answer:The Siemens KTP400 Basic TouchScreen is 3.8-inch.It is 90 millimeter long and 70 millimeters wide.
Question: Which software for Siemens Simatic KTP400 Basic to program?
Answer:WinCC (TIA Portal) is the software for all HMI applications – from simple operation solutions withBasic Panels, down to process visualizations onPC-based multi-user systems.independentconfiguration data on various targetsystems without conversion. The interface adjustsitself to the functional properties of the target device.Joint project data (alarm class, project texts, etc.) arecentrally managed in the TIA Portal and can be usedacross different devices. Furthermore, an assistant forHMI configurations is available independently of thedevice which supports the rapid and easy creation ofthe visualization’s basic structure.
Question: What is the 6AG1647-0AA11-2AX1 Siemens KTP400 Basic HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
66AG1647-0AA11-2AX6AG1674-0AA11-2AX1
6AG1647-OAA11-2AX1
6AG1647-0AAA11-2AX1
66AG1647-0AA11-2AX1
