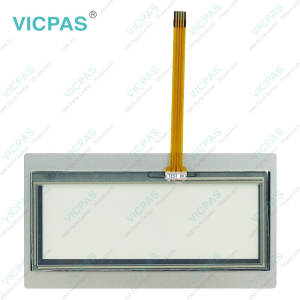

IDEC HG1F-SB22BF-B Touch Panel Front Overlay Repair

IDEC HG1F-SB22BF-B Touch Panel Front Overlay Repair

IDEC HG1F-SB22BF-B Touch Panel Front Overlay Repair
IDEC HG1F-SB22BF-B Touch Panel Front Overlay RepairIDEC HG1F-SB22BF-B Touch Panel Front Overlay RepairIDEC HG1F-SB22BF-B Touch Panel Front Overlay RepairIDEC HG1F-SB22BF-B Touch Panel Front Overlay RepairIDEC HG1F-SB22BF-B Touch Panel Front Overlay Repair
CategoriesHG1F, HG2F, HG3F, HG4F
BrandVICPAS
ModelHG1F-SB22BF-B
Warranty365 Days
Shipping2-4 workdays
BrandIDEC
Supply PartsOverlay Film Touchscreen
Display Size4.6 inches
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, T/T ,Credit Card, Western Union
Update TimeNov 22,2024
Detail Information

IDEC HG1F Series HG1F-SB22BF-B Touch Screen Monitor Front Overlay Replacement

Order each part separately is available

IDEC HG1F-SB22BF-B Touch Screen Monitor Protective Film for repair replacement

Instruction for protective sheet

The Protective Sheet of HG1F-SB22BF-B Touch Membrane Front Overlay is replaceable, transparent sheet to protect a display of HG series. With the protective sheet covered on the display, you can operate touch switches.
1. Wipe any dirt off the HG1F-SB22BF-B Protective Film Touch Screen Glass using a soft cloth slightly dampened with neutral detergent or alcoholic solvent.
2. Remove the back sheet of the protective sheet.
3. The tab of the protective sheet should be positioned at lower left. Align the right side of the protective sheet with that of the HG1F-SB22BF-B Touch Screen Film Overlay Film, then apply the protective sheet onto the display. Care should be taken to avoid the ingress of air.
4. On the top of the protective sheet, a thin cover sheet is applied to prevent the protective sheet from being damaged during transportation. Remove it before using the display of HG series.

When a protective sheet of HG1F-SB22BF-B Front Overlay HMI Touch Glass gets dirty or damaged, replace the protective sheet with a new one. When replacing the sheet, remove the used adhesives completely. The Protective Sheet has no protection effect against chemicals. This HG1F-SB22BF-B Protective Film Touch Digitizer has used a special material to filter out UV rays, however no warranty is given as to be installed in direct sunlight of outside.





Specifications:

The table below describes the parameters of the IDEC HG1F-SB22BF-B Protective Film Touch Screen Display HMI.

Brand: IDEC
Mounting: Panel Mounting
Degree of protection: IP65
Touchscreen: Analog Resistive
Warranty: 1-Year Warranty
Display Size: 4.6"
Screen Type: TFT Color
Model Number: HG1F-SB22BF-B
Operating Temperature: 0 ~ 50°C
Storage Temperature: -20 ~ 60°C


Related IDEC HMI No. :

IDEC HMI Description Inventory status
HG2F-SS52VCF IDEC HG2F Series Touch Screen Panel LCD Screen Replacement In Stock
HG2F-SS52VDF IDEC HG2F Series LCD Display Touch Digitizer Glass Repair Available Now
HG2F-SS52VF IDEC HG2F Series Touch Digitizer LCD Display Panel Replacement In Stock
HG3F-FT22TFB IDEC HG3F Series Touch Screen Glass Repair Available Now
HG3F-FT22TF-B IDEC HG3F Series Touch Screen Display Replacement In Stock
HG3F-FT22TFW IDEC HG3F Series HMI Panel Screen Repair Available Now
HG3F-FT22TF-W IDEC HG3F Series Touchscreen Monitor Replacement In Stock
HG3F-FT22VF-B IDEC HG3F Series Touch Screen Film Repair Available Now
HG3F-FT22VF-W IDEC HG3F Series Touch Digitizer Glass Replacement In Stock
HG4F-JT22TFB IDEC HG4F Series MMI Touch Membrane Repair Available Now
HG4F-JT22TF-B IDEC HG4F Series Touch Screen Tablet Replacement In Stock
HG4F-JT22TF-EX IDEC HG4F Series Touch Screen Panel Repair Available Now
HG4F-JT22TFW IDEC HG4F Series Touch Screen Monitor Replacement In Stock
HG4F-JT22TF-W IDEC HG4F Series Touch Screen Display Replacement Available Now
HG4F-JT22VF-B IDEC HG4F Series Touch Screen Glass Replacement In Stock
HG4F-JT22VF-W IDEC HG4F Series Touch Screen Film Replacement Available Now
IDEC HMI Description Inventory status

IDEC HG1F Series Manuals PDF Download:

  • HG1F data sheet
  • HG1F-2F-3F-4F Series
  • HG-Comparison Guide

  • FAQ:

    Question: What should I pay attention to during operation?

    Answer: During operation, the screen becomes blank when the backlight is burnt out; however, the touch panel of HG1F-SB22BF-B Terminal remains enabled. Incorrect touch panel operation will occur when operating the touch panel when the backlight appears to be turned off but is actually burnt out. Note that this erroneous operation may result in damage.


    Question: What are the screen types of HG1F-SB22BF-B machine?

    Answer: The screen types of HG1F-SB22BF-B HMI are base screen, popup screen and system screen.


    Question: How to maintain HG1F-SB22BF-B HMI Touch Glass?

    Answer: To wipe off smears on the lens and the surfaces of HG1F-SB22BF-B Touch Screen, use a soft cloth dampened with the following solvents. Use neutral detergent(squeeze the cloth tightly) or alcoholic solvents. Do not use solvents such as thinner, ammonia, strong acid and strong alkaline.
