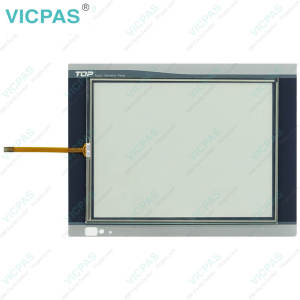

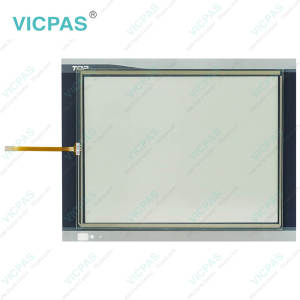

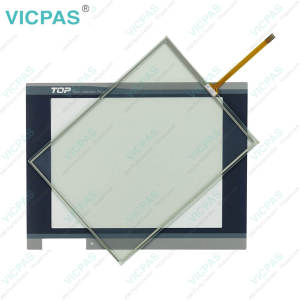

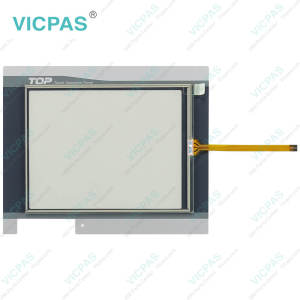

M2I H TOP Series HTOP05TQ-SD Protective Film HMI Touch

Order each part separately is available

Ground Wiring warning

1.The HTOP05TQ-SD Protective Film Touch Screen Monitor product has enough anti-noise measure, so except that there are many noises. Specially, the ground is not needed.
2. The ground should be the exclusive ground. The ground should be type Class 3 ground (ground resistor is less than 1000).
3. When not doing the exclusive ground, do common ground.
4. Use the cable of M2I HTOP05TQ-SD Touch Membrane Front Overlay more than 4 mm2. Put the point of the ground near product and shorten Ground line.

Cleaning the HTOP05TQ-SD Protective Film Touch Screen Display

When the surface or frame of the display become dirty, spray the cleaning solution onto a soft cloth and wipe the device. Do not spray the cleaning solution directly onto the HTOP05TQ-SD Touch Screen Film Front Overlay.

Periodic Check Points

Check the followings periodically for best condition of the HTOP05TQ-SD Touch Screen Glass Protective Film.
Environment
a.Is the operating temperature within the allowable range (-10C~50C)?
b.Is the operating humidity of HTOP05TQ-SD Front Overlay Touch Membrane within the allowable range (10%~80%RH)?
c.Is the Surrounding pollution no corrosive gas?
Power
Is the input voltage within the change range (-15%~+10%)?
Related Items
a.Check the guarantee duration of LCD Backlight of HTOP05TQ-SD Front Overlay Touch Screen Tablet by eye.
b.Check the touch pad there is no damage, scratch or pollution by eye.
