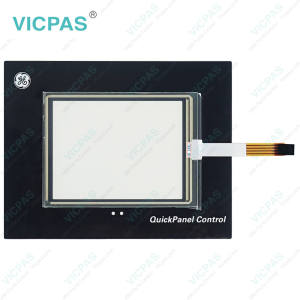

IC754CBF12CTD IC754CKF12CTD IC754VGF12CTD Protective Film Touch Screen Panel

IC754CBF12CTD IC754CKF12CTD IC754VGF12CTD Protective Film Touch Screen Panel

IC754CBF12CTD IC754CKF12CTD IC754VGF12CTD Protective Film Touch Screen Panel
IC754CBF12CTD IC754CKF12CTD IC754VGF12CTD Protective Film Touch Screen PanelIC754CBF12CTD IC754CKF12CTD IC754VGF12CTD Protective Film Touch Screen PanelIC754CBF12CTD IC754CKF12CTD IC754VGF12CTD Protective Film Touch Screen PanelIC754CBF12CTD IC754CKF12CTD IC754VGF12CTD Protective Film Touch Screen Panel
CategoriesQuickPanel View
BrandVICPAS
ModelIC754CBF12CTD IC754CKF12CTD IC754VGF12CTD
BrandGE Fanuc
Warranty365 Days
Product LineGE Fanuc QuickPanel View Series
SupplyGE Fanuc QuickPanel View Touch Panel Front Overlay
Part NumberIC754CBF12CTD IC754CKF12CTD IC754VGF12CTD
Shipping2-4 workdays
Display Size12 inches
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Download
Update TimeNov 21,2024
Detail Information

GE Fanuc IC754CBF12CTD IC754CKF12CTD IC754VGF12CTD Protective Film Touch Digitizer Glass

Order each part separately is available

GE Fanuc QuickPanel View Series IC754CBF12CTD IC754CKF12CTD IC754VGF12CTD Front Overlay Touch Screen Repair Replacement

VICPAS supplies GE Fanuc QuickPanel View Series IC754CBF12CTD IC754CKF12CTD IC754VGF12CTD Protective Film and Touch Panel with 365 days warranty and supports Urgent Worldwide Shipping. The IC754CBF12CTD IC754CKF12CTD IC754VGF12CTD Touch Digitizer Front Overlay QuickPanel View has an integrated flat-panel display providing either color or monochrome, depending on model. The color model, IC754VxI12CTD, incorporates a backlit, 12.1" diagonal display employing active TFT technology. The monochrome model, IC754VxI10MTD, incorporates a backlit, 10.4" diagonal display employing passive technology.
The color display provides a resolution of 800 x 600 pixels and 32,768 colors, while the monochrome display provides a resolution of 640 x 480 pixels and 256 shades of gray.
Both displays have a backlight timer feature allowing the backlight to turn off automatically and extend its life.
10”& 12”QuickPanel View/Control

The IC754CBF12CTD IC754CKF12CTD IC754VGF12CTD Touch Digitizer Protective Film QuickPanel View display is coupled to a resistive touch panel with 12-bit resolution. When the QuickPanel View is properly calibrated, this translates into a grid of touch cells on the face of the display. Although you can use your finger to actuate the touch screen, use of a blunt stylus is recommended.
10”& 12”QuickPanel View/Control




Specifications:

The table below describes the parameters of the GE Fanuc QuickPanel View Series IC754CBF12CTD IC754CKF12CTD IC754VGF12CTD Touch Panel Protective Film HMI Parts.

Display Size: 12" (Diagonal)
Lifecycle Status: Active
Input Voltage: 10.8 to 30.0 VDC
Product Line: GE Fanuc QuickPanel View
Touchscreen: Resistive
Brand: GE Fanuc
Display Type: Color-TFT LCD
Indicators - LEDs: bi-color (pwr), tri-color (user)
Power: Less than 48W
Warranty: 365 Days


Related GE Fanuc QuickPanel View Series HMI Part No. :

Quickpanel View HMI Description Inventory status
IC754CBF08CTD GE FANUC QuickPanel View Touch Screen Protective Film Replacement In Stock
IC754CBF12CTD GE FANUC QuickPanel View Touch Panel Protective Film Repair Available Now
IC754CBF15CTD GE Fanuc QuickPanel View Touchscreen Protective Film Repair In Stock
IC754CBL06CTD GE FANUC QuickPanel View HMI Touch Screen Glass Protective Film Available Now
IC754CBL06MTD GE Fanuc QuickPanel View Touch Screen Panel Front Overlay Repair In Stock
IC754CGF08CTD GE FANUC Quickpanel View Front Overlay Touch Membrane Replacement In Stock
IC754CGF08CTD-CB GE Fanuc QuickPanel View Touch Glass Front Overlay Repair In Stock
IC754CGF12CTD GE Fanuc QuickPanel View Touch Digitizer Glass Overlay Repair Available Now
IC754CGF12CTD-AA GE FANUC Quickpanel View HMI Panel Glass Protective Film Available Now
IC754CGF15CTD GE FANUC QuickPanel View Touch Screen Monitor Front Overlay In Stock
IC754CGF15CTD-FG GE Fanuc QuickPanel View MMI Touch Screen Front Overlay Replacement In Stock
IC754CGL06CTD GE Fanuc QuickPanel View HMI Touch Screen Protective Film Available Now
IC754CGL06CTD-EE GE FANUC QuickPanel View Protective Film Touchscreen Repair In Stock
IC754CGL06CTD-FH GE Fanuc QuickPanel View HMI Protective Film Touch Screen Glass Available Now
IC754CGL06MTD-AB GE Fanuc QuickPanel View Front Overlay Touch Screen Panel Repair In Stock
QuickPanel View HMI Description Inventory status


GE Fanuc QuickPanel View Series Manuals PDF Download:

  • 6 QuickPanel View Control Hardware User's Guide, GFK-2305
  • 8” QuickPanel View & Control User's Manual
  • 10 12 QuickPanel View, GFK-2306A
  • 12 QuickPanel View Control, GFK-2284A
  • 12 QuickPanel View QuickPanel Control Hardware User's Guide
  • Quick Panel View Brochure
  • QuickPanel View Operator Interfaces

  • FAQ:

    Question: How to connect a DC Power Supply?

    Answer:
    1. Using the three screw terminals shown in the following diagram, attach a 24VDC, 48W power supply to the plug supplied with the QuickPanel View/Control.
    2. Insert the plug into the power supply socket and securely tighten the attaching screws.
    Note: The torque range for the attaching screws is 4-6 inch/lbs.
    How to connect a DC power supply?


    Question: Are there any recommended maintenance procedures for the IC754CBF12CTD IC754CKF12CTD IC754VGF12CTD QuickPanel View?

    Answer: Regular cleaning of the touch screen with a soft, lint-free cloth is recommended to remove dirt and smudges. Avoid using harsh chemicals or abrasive materials that can damage the screen. Additionally, ensure proper ventilation and keep the device away from excessive heat or moisture.

    Common misspellings:

    IC754CBF12CTD IC754CKF12CTD IC754VGF12TD
    IC754CBF12CTD IC54CKF12CTD IC754VGF12CTD
    IC75C4BF12CTD IC754CKF12CTD IC754VGF12CTD
    IC754C8F12CTD IC754CKF12CTD IC754VGF12CTD
    IC754CBF12CTD IC754CKF12CCTD IC754VGF12CTD
