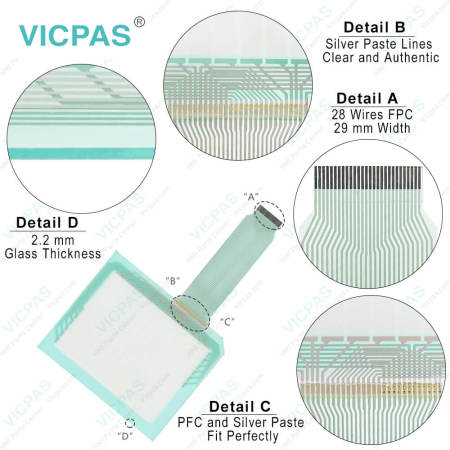

EZ-S6C-FSD EZ-S6C-FSE HMI Touch Membrane Front Overlay

FAQ:

Question: How to put a Label on the Report?

Answer: Perform the following steps:
1. Click on the box in front of Label Text if you want a label for your object.
2. Use the UP/DOWN arrows after the Language box to select a language number.
3. Select Character Size from the available sizes.
4. Enter Label Text up to 40 characters.
5. Select the Position of the label, whether you want it to appear at the Top or the Bottom of the object frame.
6. Select the Text and Background Color. Click on the down arrow to view the color palette.
7. Display Frame is selected by default. If you do not want the frame around the object to be visible, click on the box to deselect (the box will be empty).

Question: Enter Text

Solution:
Here you will enter the Text that will appear within the touch object, and control how that text will appear.
1. Select the Language number (1–9) for the Text.
2. Type in what you want to appear within the button.
3. Select Character Size from the available choices.
4. Select the Color of the Text and the Color of the Background.
5. If you want the Text or the Background to Blink, click on the box below Blink to place a check mark indicating that the option is enabled.
