Gtouch GP-121F-5H-6G Touch Screen Panel Replacement

Gtouch GP-121F-5H-6G Touch Screen Panel Replacement

Gtouch GP-121F-5H-6G Touch Screen Panel Replacement
Gtouch GP-121F-5H-6G Touch Screen Panel ReplacementGtouch GP-121F-5H-6G Touch Screen Panel ReplacementGtouch GP-121F-5H-6G Touch Screen Panel Replacement
CategoriesGtouch Screen
BrandVICPAS
ModelGP-121F-5H-6G
Warranty365 Days
Shipping2-4 workdays
BrandGtouch Touch Screen
Touch screen panel typeResistance touch panel
Display Size12.1 inches
Supply PartsGtouch Touchscreen Panel
Part NumberGP-121F-5H-6G
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, T/T ,Credit Card, Western Union
Update TimeNov 9,2024
Detail Information

Gtouch GP-121F-5H-6G Touch Membrane HMI Repair Replacement


Gtouch GP-121F-5H-6G Touch Screen Panel repair replacement

GP-121F-5H-6G touch panel is composed of a layer of a conductive film (ITO Film) and a layer of conductive glass (ITO Glass). The GP-121F-5H-6G Touch Digitizer Spacer Dots is also used for insulation between the film and glass. The difference between 5-wire and 4-wire is that for 5-wire both the X-axis and Y-axis are made on the glass surface, and the upper ITO Film is only used for grounding. The X-axis and Y-axis are respectively routed from the four corners of the action area, and the positive voltage forms a loop with the grounding wire. The voltage value also forms a uniform electric field, and the coordinate position is detected by calculation. The five-wire resistive GP-121F-5H-6G HMI Panel Glass is designed according to this structure, since its main X-axis or Y-axis line is not on the outermost film but on the glass, so the durability and reliability are different to the 4-wire resistive product.

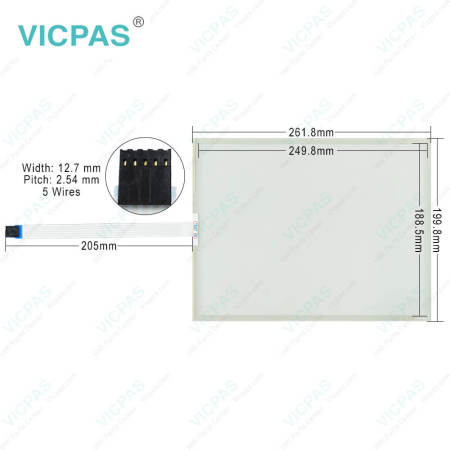

Specifications:

The table below describes the parameters of the Gtouch GP-121F-5H-6G Touch Screen HMI Part.

Brand: Gtouch
Connection Tail: FFC or FPC
Linearity: <1.5%
Operation Temperature: -10℃~ 70℃
Product Line: Gtouch Touch Panel
Storage Temperature: -40℃~+80℃
Touch Size: 12.1 inches
Top Layer: Polyester film
Transparency: 80%
Warranty: 1-Year Warranty


Related Gtouch Touch Screen HMI Part No. :

Gtouch Touch Panel Description Inventory status
GP-104F-5M-NT06B Gtouch Touch Panel Replacement Available Now
GP-104F-5N-WG06B Gtouch Touch Membrane Replacement In Stock
GP-116F-5H-NB01B Gtouch Touch Glass Replacement In Stock
GP-116F-5H-NB03A Gtouch HMI Panel Glass Replacement Available Now
GP-121F-5H-11M-N Gtouch Touch Digitizer Glass Repair Available Now
GP-121F-5H-6G Gtouch Touch Panel Repair Replacement In Stock
GP-121F-5H-6N Gtouch HMI Touch Glass Replacement Part In Stock
GP-121F-5H-N15B Gtouch MMI Touch Screen Replacement Repair In Stock
GP-121F-5H-NB07C Gtouch Touch Screen Panel Replacement Available Now
GP-121F-5H-NB09B Gtouch Touch Digitizer Replacement Repair In Stock
GP-121F-5H-NB17B Gtouch Touch Screen Monitor Replacement Available Now
GP-121F-5M-NA16B Gtouch Touch Screen Glass Replacement In Stock
GP-121F-5M-NB09B Gtouch Touch Screen Panel Replacement Available Now
GP-121F-5M-NT04B Gtouch Touchscreen Repair Part In Stock
GP-121F-5M-WG09B Gtouch Touch Screen Glass HMI Repair Available Now
Gtouch Touch Glass Description Inventory status

Gtouch Touch Screen Panel HMI Manuals PDF Download:

  • GP-133F-5H-NB01B_drawing.pdf
  • GP-150F-5H-B04B_drawing.pdf
  • GP-150F-5H-NB04B_drawing.pdf
  • GP-150F-5H-NB04C_drawing.pdf
  • GP-150F-5H-NB12B_drawing.pdf
  • GP-150F-5M-NB04B_drawing.pdf
  • GP-150F-5M-NB13B_drawing.pdf
  • GP-150F-5N-NT05B_drawing_20151228.pdf
  • GP-151F-5H-1C_drawing.pdf
  • GP-156F-5M-NB02B_drawing.pdf

  • Common misspellings:

    GP-121F-5-6G

    GP-21F-5H-6G

    GP-121F5-H-6G

    GP-121F-5H-bG

    GP-1Z1F-5H-6G

    GP-1121F-5H-6G

    GP-121F-5H--6G
