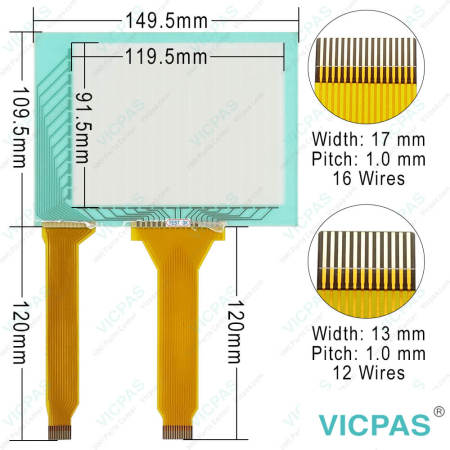

Koyo DP-C321 Touch Panel Glass Protective Film Repair

Koyo DP-C321 Touch Panel Glass Protective Film Repair

Koyo DP-C321 Touch Panel Glass Protective Film Repair
Koyo DP-C321 Touch Panel Glass Protective Film RepairKoyo DP-C321 Touch Panel Glass Protective Film RepairKoyo DP-C321 Touch Panel Glass Protective Film Repair
CategoriesKoyo Other Series
BrandVICPAS
ModelDP-C321
BrandKOYO
Size5.7 inch
Warranty365 Days
Product LineKoyo auto parts
SupplyDP-C321 Protective Film Touch Screen Monitor
Shipping2-4 workdays
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Update TimeNov 22,2024
Detail Information

Machine Koyo DP-C321 Protective Film Touch Screen Replacement Repair


Koyo Auto Parts DP-C321 Front Film Touch Screen Panel Glass Repair Replacement

The DP-C321 Touch Membrane Front Overlay Terminal is fully programmable touch panel, providing power and flexibility through a rich set of features. The back-lit LCD display is available in either monochrome (DP-M321) or color (DP-C321). The DP-C321 Front Overlay Touch Screen DirectTouch Panel is configured using the ScreenCreator software. The software is a graphics editor with built-in panel parts such as number keypads, pushbuttons, indicator lights, meters and graphs.
• 64 pre-built parts: keypads, meters, graphs and numbers, text and time display fields, etc.
• Separate Compile and Download functions
• 5.7 inch display
• Floating Toolbars: Standard, Drawing, Control and Part
• Build custom panel parts for your specific applications
• Part Libraries: for custom and built-in parts
• Snap Grid
• Fast Compile and Download
• Windows 95/98/2000/NT compatible
• 1,048 pre-drawn ISO symbols to use in building new parts
• Upload from the Panel
• Up to 1,024 screens limited by 1Mb of screen data (typical screens are 1 to 3 K)
• Built-in Battery-backed Clock/Calendar
• Two-port Communication: RS232 and RS422 for PC and PLC at the same time (with certain PLCs)
• Communicate with multiple DirectLogic PLCs (RS422)
• Built-in Fault (Alarm) Screens
• Built-in Keypads: 10-key for numbers and keyboard for text
• Screen Password Protection
• 16-level Undo and Redo
• Import and Edit Bitmaps


VICPAS supplies Koyo parts DP-C321 Protective Film and Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.




Specifications:

The table below describes the parameters of the Koyo DP-C321 Touch Glass Protective Film HMI Parts.

Ambient temperature: 0°C (32°F) to 50°C (122°F)
Display Resolution: 320 x 240 pixels
Model Number: DP-C321
Product Line: Koyo spare parts
Touch Size: 5.7"
Brand: KOYO
Display Type: Backlit LCD
Power supply: 24 V DC
Storage Temperature: -20°C (-4°F) to 60°C (140°F)
Warranty: 365 Days


Related Koyo Auto HMI Part No. :

KOYO Auto Part Description Inventory status
DP-C320 KOYO Machine Parts HMI Front Overlay Touch Membrane In Stock
DP-C321 Koyo Auto Parts HMI Panel Glass Protective Film Repair In Stock
DP-M321 Machine Koyo Touch Digitizer Glass Front Overlay Replacement Available Now
GC-11MU-4 KOYO Protective Film Touch Screen Panel Replacement Repair Available Now
GC-3LC Koyo Touch Screen Monitor Front Overlay Repair In Stock
GC-3LC2 Koyo Protective Film MMI Touch Screen Repair In Stock
GC-3LM Koyo HMI Touch Screen Panel Front Overlay Replacement Available Now
GC-3LM2 Koyo Protective Film Touchscreen Repair Replacement In Stock
GC-73LCL-R Koyo GC-7 Series HMI Front Overlay Touch Screen Glass Available Now
GC-73LC-R Koyo GC7 Series Protective Film Touch Screen Panel Repair In Stock
GC-73LM-R KOYO GC-7 Series Front Overlay HMI Panel Glass Replacement In Stock
GC-76LC Koyo GC7 Series Touch Panel Protective Film Repair Available Now
Automation Koyo Description Inventory status


KOYO Auto HMI Manuals PDF Download:

  • Directview DV1000 Manuals
  • Directview DV1000 PDF
  • DP-M321 DP-C321 PDF
  • EA-MG6-BZ2 PDF
  • EA-MG6-BZ2P PDF
  • EA-MG-BZ1 PDF
  • EA-MG-BZ2 PDF

  • FAQ:

    Question: Access the DP-C321 Touch Panel Setup Screens

    Solution:
    • Access the Main Menu of the touch panel System Setup Screens by pressing the extreme upper left corner of the panel display area for three (3) seconds as shown below.
    • Adjust the time and date for the panel by pressing the Setting button on the Main Menu, then press the Adjust Clock button on the Setting screen.
    • Use the right-pointing arrows for the time or date display to select the unit to change. Use the up and down arrows to increment or decrement the value for the selected unit.
    • Press OK when done to accept the changes to the time and date that is retained in the touch panel's battery-backed memory, or press Cancel to exit the Adjust Clock setup screen without making any changes.
    • Press the Main Menu button on the Setting screen and then the Exit button on the Main Menu screen to return to the application screen.
    Access the DP-C321 Touch Panel Setup Screens
