ATLAS Industrial Monitors ATM1500T Touch Digitizer Overlay

ATLAS Industrial Monitors ATM1500T Touch Digitizer Overlay

ATLAS Industrial Monitors ATM1500T Touch Digitizer Overlay
ATLAS Industrial Monitors ATM1500T Touch Digitizer OverlayATLAS Industrial Monitors ATM1500T Touch Digitizer OverlayATLAS Industrial Monitors ATM1500T Touch Digitizer OverlayATLAS Industrial Monitors ATM1500T Touch Digitizer OverlayATLAS Industrial Monitors ATM1500T Touch Digitizer Overlay
CategoriesKoyo Other Series
BrandVICPAS
ModelATM1500T
BrandKOYO
Size15 inch
Warranty365 Days
Product LineATLAS Industrial Monitors
SupplyATM1500T Touch Screen Monitor Protective Film
Shipping2-4 workdays
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Update TimeDec 25,2024
Detail Information

Koyo ATLAS Industrial Monitors ATM1500T Front Overlay Touch Screen Replacement Repair

Order each part separately is available

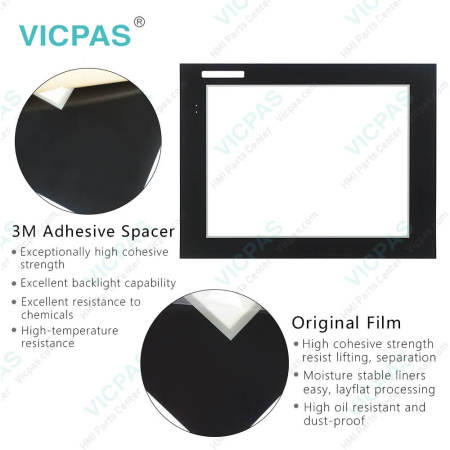

Koyo ATLAS Industrial Monitors ATM1500T Protective Film Touch Screen Repair Replacement

The Atlas ATM1500T Front Overlay Touch Digitizer Glass Monitors is a high-performance 15" color TFT flat panel monitor specifically designed for harsh industrial environments including Class I Division 2, Class II Division 2 and Class III Hazardous Locations. The ATM1500T accepts standard analog VGA or digital DVI input and can display all VESA video modes up to 1280 x 1024 at 75Hz, 800:1 contrast with 16 million colors. An optional 5-wire analog touch screen (ATM1500T) offers RS-232 and USB interface capability. The monitor is housed in a heavy-duty steel chassis with a powder-coated machined aluminum bezel. The monitor is certified to NEMA 4/4X/12 standards and is UL/CUL listed. Panel mounting is simplified using convenient mounting clips instead of conventional studs.

ATM1500T Touchscreen Panel Protective Film ATLAS Industrial Monitors Features
• UL 508 and ANSI/ISA 12.12.01-2012 listed for Hazardous Locations: Class I, Division 2, Groups A, B, C, D; Class II, Division 2, Groups F and G and Class III hazardous locations when mounted in a NEMA Type 1, 4, 4X or 12 enclosures
• NEMA 4/4X/12 front bezel
• 2-Year warranty
• Integral 100 -240 VAC power supply
• Simplified installation with no studs
• Thin design - Less than 3” behind bezel
• Accepts analog 15-pin Video input, digital input DVI-D
• VESA compliant - all modes up to SXGA, 75Hz
• Optional 5-wire resistive touch screen with both RS-232 and USB interface


VICPAS supply Koyo ATLAS Industrial Monitors ATM1500T Front Overlay and Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.




Specifications:

The table below describes the parameters of the Koyo ATLAS Industrial Monitors ATM1500T Front Overlay Panel Glass HMI Parts.

Brand: KOYO
LCD Backlight: 250 Nit
Product Line: ATLAS Industrial Monitors
Resolution: 1024 x 768 pixels (VGA)
Warranty: 12 Months Warranty
Ambient temperature: 10 to 90% RH
Display Type: TFT color LCD
Power supply: 24 V DC
Storage Temperature: -20 to 60 °C (-4 to 140 °F)
Touch Size: 15"


Related Koyo ATLAS Industrial Monitors HMI Part No. :

ATLAS Industrial Monitors Description Inventory status
ATM1500 KOYO ATLAS Industrial Monitors Front Overlay Touch Membrane In Stock
ATM1500T Koyo ATLAS Industrial Monitors Touch Glass Front Overlay Repair In Stock
ATM1700 Koyo ATLAS Industrial Monitors Touch Digitizer Glass Overlay Repair Available Now
ATM1700T KOYO ATLAS Industrial Monitors HMI Panel Glass Protective Film Available Now
ATM1900 Koyo ATLAS Industrial Monitors Touch Screen Monitor Front Overlay In Stock
ATM1900T Koyo ATLAS Industrial Monitors Front Overlay MMI Touch Screen Replacement Available Now
ATLAS Industrial Monitors Description Inventory status


KOYO Atlas Industrial Monitor HMI Manuals PDF Download:

  • Atlas Industrial Monitor 15-inch PDF
  • Atlas Industrial Monitor 17-inch PDF
  • Atlas Industrial Monitor 19-inch PDF
  • Atlas™ Industrial Flat Panel PC Monitor Quick Installation Guide
  • Industrial Flat Panel PC Monitor User's Guide

  • FAQ:

    Question: Connection of Video and Touch Screen Cables

    Answer: Connect either a 15-pin VGA or DVI cable and either an RS-232 or USB cable if the monitor is equipped with a touch screen. All communication cables should include a chassis ground shield. Hazardous location, Division 2, requires that all cables have adequate strain relief. For this reason, tighten all connector thumb screws securely. If a USB cable is being used, install the provided USB retention bracket. Insert the USB connector through the square cutout in the base of the bracket and pull the cable and body of the connector back through the round hole in the bracket flange. Now insert the bracket into the two slots on the rear of the monitor and slide it forward so the connector is fully inserted in the mating bulkhead connector. Install and tighten two 4-40 x .25" Philips screws.
    Connection of Video and Touch Screen Cables


    Question: What are ATLAS Industrial Monitors ATM1500T Touch Screen and Protective Film HMI parts prices?

    Answer: Submit a fast quote, send VICPAS an email for best price.
