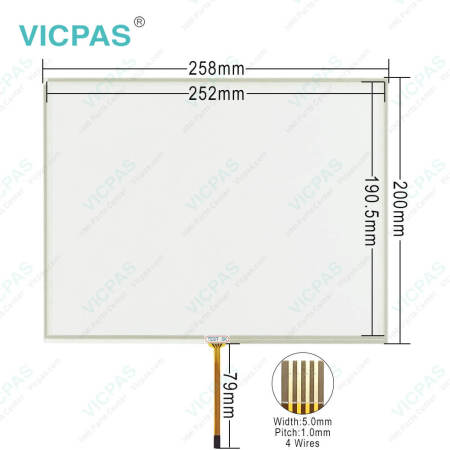

1201-680 B TTI 0516-X123 03-TW Touch Digitizer Glass
1201-680 B TTI 0516-X123 03-TW Touch Digitizer Glass
1201-680 B TTI 0516-X123 03-TW MMI Touch Glass Replacement Repair
Order each part separately is available
Please pay attention for the matter as stated below at mounting design of 1201-680 BTTI 0516-X123 03-TW touch panel & enclosure:
1. Enclosure support to fix 1201-680 BTTI 0516-X123 03-TW touch panel glass must be out of view (transparent) area. (Do not design enclosure presses the view area to protect from miss input).
2. Enclosure edge must be between view area & guaranteed active area. (Enclosure edge must not touch with view area).
3. We recommend the material of support to fix 1201-680 BTTI 0516-X123 03-TW touch screen panel is an elastic material.
4. Do not bond top surface (film) of 1201-680 BTTI 0516-X123 03-TW panel glass with enclosure.
5. The corner parts (fig.*) have conductivity. Do not touch any metal part after mounting.
6. Special design is required for water resistance use.
7. Cleaning 1201-680 BTTI 0516-X123 03-TW Touch Digitizer by Air gun, pressure 2kg/cm2 below is suggested. This is preventing FPC to peel off when air is blowing to FPC from 1201-680 BTTI 0516-X123 03-TW touch screen monitor side.
8. The mounting structure must have a reserved space for the FPC tail and never touch or squeeze the FPC by case or other components preventing FPC to peel off. Assembly space is recommended at least 4mm.
VICPAS supply 1201-680 B TTI 0516-X123 03-TW touch panel glass with 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 1201-680 B TTI 0516-X123 03-TW TTI HMI Touch Membrane.
| Part Number: | 1201-680 B 0516-X123 03-TW |
| Warranty: | 1-Year Warranty |
| Number of Touches: | Single |
| Storage Temperature: | -20˚C to 70˚C |
| Operating Temperature: | -5˚C to 60˚C |
| Product Line: | TTI Touch Panel |
| Tail Options: | FPC tail |
| Response time: | ≦ 30ms |
| Storage Humidity: | 10% to 90% RH |
| Operating Humidity: | 20% to 85% RH |
Related TTI Touch Screen HMI Part No. :
| TTI Touch Screen | Description | Inventory status |
| 0516-X123 03-TW | TTI Touch Screen Glass Replacement | In Stock |
| 1201-120R B TTI 1201-X111 07-NA 1201-X111/04 NA | TTI Touch Screen Panel Replacement | Available Now |
| 1201-680 B TTI | TTI HMI Touchscreen Repair Part | In Stock |
| 1201-800 A TTI 1301-X911 01 | TTI HMI Touch Screen Glass Repair | Available Now |
| 1201-X151 A TTI 1201-X151 02 | TTI Touch Screen Panel Replacement | In Stock |
| 1201-X231 03 1305-524 C TTI | TTI Touch Membrane Replacement | In Stock |
| 1301-010 02 | TTI HMI Touch Glass Replacement | In Stock |
| 1301-X161 A TTI 1301-161 D TTI | TTI HMI Panel Glass Replacement | Available Now |
| 1301-840 A TTI 1201-X131-01 T010-1201-X131-01 | TTI Touch Digitizer Glass Repair | Available Now |
| 1301-910 BTTI 1301-X911 01 | TTI Touch Screen Monitor Repair | In Stock |
| 1301-X161 1301-161 B TTI | TTI HMI Touch Panel Replacement | Available Now |
| 1301-X991 02-NA | TTI HMI Touchscreen Repair Part | In Stock |
| TTI Touch Panel | Description | Inventory status |
FAQ:
Question: What is the dimension of the 1201-680 B TTI Touch Screen Monitor?
Answer:The 1201-680 B TTI touchscreen panel is 10.1 inch.
Question: What is the 1201-680 B TTI 0516-X123 03-TW HMI Touch Screen Panel Glass price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
1201-80 B TTI 0516-X123 03-TW1201-680 B TI 0516-X123 03-TW
1201-680 B TTI 0561-X123 03-TW
1201-680 B TTI 0516-X123 O3-TW
1201-680 B TTI 0516-Xl23 03-TW
1201-6880 B TTI 0516-X123 03-TW
