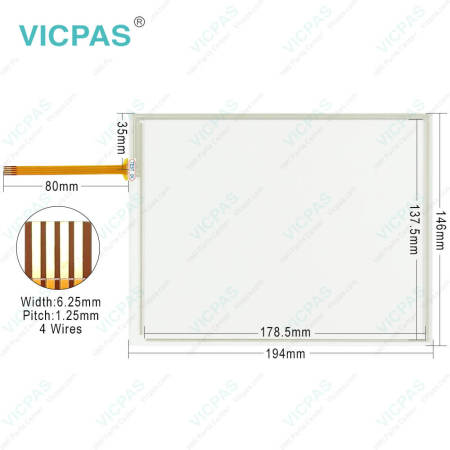

Sigmatek HGT833-W HGT834-W Touch Panel Glass Replacement
SIGMATEK Handheld Control Panel HGT833-W HGT834-W Touch Screen Panel Glass
Order each part separately is available
VICPAS supply SIGMATEK Handheld Control Panel HGT833-W HGT834-W touchscreen panel with protective film overlay, all of them are brand new with 365 days VICPAS warranty.
The HGT 833-W HGT 834-W Control Panel is an intelligent handheld control panel used for programming and visualization of automated processes. Process diagnosis, operating and monitoring functions are thereby simplified. A HGT833-W HGT834-W touch screen serves as the input medium for process data and parameters. The output is shown on an 8.4" SVGA TFT color display. With the LSE mask editor, graphics can be created on the PC, then stored and displayed on the handheld control panel. The available interfaces can be used to exchange process data or configure the handheld control panel. On the Flash card, the operating system, application and application data are stored.
Specifications:
The table below describes the parameters of the Sigmatek Handheld Control Panel HGT 833-W HGT 834-W Front Overlay Touchscreen Panel.
| Part Number : | HGT833-W HGT834-W |
| Product Line: | Sigmatek Handheld |
| Screen diagonal | 8.4 in |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Touchscreen |
| Serial interface Type: | RS232 |
| Storage | -20 to 70°C |
Related Sigmatek Panel Part No. :
| Handheld Control Panel | Description | Inventory status |
| HBG 0811 | Sigmatek Handheld Control Panel Touch Screen Repair | In Stock |
| HBG 1011 | Sigmatek Handheld Control Panel Touchscreen Repair | In Stock |
| HGT833-W | Handheld Control Panel Sigmatek Touch Panel Replacement | Available Now |
| HGT834-W | Handheld Control Panel Sigmatek HMI Touch Screen Glass | Available Now |
| HGT 835 | Sigmatek Handheld Control Panel Touch Membrane Repair | In Stock |
| HGT 1035 | Sigmatek Handheld Control Panel Touch Screen Panel Repair | In Stock |
| SIGMATEK HMI | Description | Inventory status |
SIGMATEK Handheld Control Panel Manuals PDF Download:
FAQ:
Question:How to exchange the Sigmatek HGT833-W HGT834-W Battery?
Answer:
1. Disconnect the power to the HGT833-W HGT834-W.
2. Open the locking screws on the back f the terminal with a PH-1 screwdriver:
3. Lift rear panel of the terminal:
For HW version 1.x:
4. Using the strap, remove the battery the holder (see arrow).
5. Insert the new battery with the correct polarity and close the terminal.
(+ Pole toward the backside)
From HW version 2.x:
4. Using the strap, remove the battery from the holder (see arrow).
5. Place the new battery in the holder with the correct polarity (+ Pole toward the frontside) and replace the cover.
Question:What is the price of SIGMATEK HGT 833-W HGT 834-W Front Overlay Touch Screen Monitor?
Answer: Submit a quote request, send us an email for our best price.
Common misspellings: ：
HGT83-W
HGT833-
HTG833-W
HGT83-4W
HGTB34-W
HGT8334-W
