C7-635 0005-4050-400 GEA Membrane Keyboard Front Cover
C7-635 0005-4050-400 GEA Membrane Keyboard Front Cover

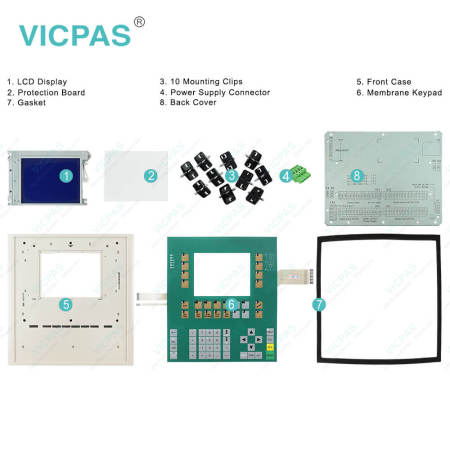

0005-4050-400 Siemens SIMATIC GEA C7-635 Membrane Keyboard Keypad, Optical Glass, Plastic Cover, LCD Display, Gasket, Mounting Clips and Power Supply Connector Repair
Order each part separately is available
Special Features of the C7-635 0005-4050-400 Terminal Keypad Optical Glass Housing
Deviations from the CPU314C-2 DP
• Operating mode selection
• Arrangement of additional S7-300 modules
• Status display of the digital onboard I/O
• User memory expanded from 48 Kbytes to 64 Kbytes
• All integrated I/O inputs have a common reference ground
Deviations from TP170 /OP170 B
• RS 485 interface (MPI) can not be switched to RS 422 interface
• No second RS 232 interface
• No DP interface to TP/OP
VICPAS supply 0005-4050-400 Siemens GEA C7 635 membrane switch, optical glass, LCD Display Screen, Mounting Clips, Gasket and Power Supply Connector and plastic front cover with 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 0005-4050-400 Siemens c7-635 HMI Parts.
| Part Number : | 0005-4050-400 |
| Firmware version: | V2.0.12 |
| Programming: | STEP 7 V5.2 + SP1 |
| Warranty: | 6-Months Warranty |
| Product Line: | Siemens c7-635 |
| Rated value (DC): | 24 V |
| Number of digital outputs: | 16 |
| Design as touch screen: | YES |
| Keyboard fonts: | US English |
| Interface type: | Integrated RS 485 interface |
Related Siemens Simatic C7-635 Part No. :
| Siemens C7-635 | Description | Inventory status |
| 6ES7635-2SB00-0AC0 | GEA C7-635 Siemens | Available Now |
| 6ES7635-2SB01-0AC0 | SIMATIC C7-635 GEA | In Stock |
| 6ES7635-2SB02-0AC0 | SIMATIC C7-635 GEA | In Stock |
| 0005-4050-400 | SIPLUS GEA C7-635 | In Stock |
| 0005-4050-408 | SIMATIC GEA C7-635 | In Stock |
| 0005-4050-608 | SIPLUS GEA C7-635 | Available Now |
| 0005-4050-630 | SIPLUS C7-635 GEA | In Stock |
| SIMATIC C7 635 | Description | Inventory status |
Siemens C7 635 series HMI Manuals PDF Download:
FAQ:
Question: What should we know when programing?
Answer:You program the C7-635 Touch with STEP 7 as of V 5.2 + Service Pack 1 +Hardware Update C7-635 Touch V2.0.
You program the C7-635 Key with STEP 7 as of V 5.2 + Service Pack 1 +Hardware Update C7-635 Key V2.0.
Question: How to install 0005-4050-400 Simatic c7-635 ?
Answer:
1.C7-635 Touch:Make a cutout in the control cabinet door(dimensions 231+1.0 x 183+1.0 mm).
C7-635 Key:Make a cutout in the control cabinet door(dimensions 231+1.0 x 257+1.0 mm).
2.Ensure that no Compact Flash Card (CF Card) is inserted into the C7-635.The CF Card protrudes from the C7-635 and could be damaged when thedevice is installed.
3.Place the C7-635 in the prepared cutout in the control cabinet door. Ensurethat the gasket is applied evenly to the metal plate.
4.Guide the fastening hooks of the provided mounting supports (for theC7-635 Touch, 8 mounting supports; for the C7-635 Key, 10 mountingsupports) into the intended recesses in the C7-635 housing. Figure 3-2provides an example of the mechanical fastening of the C7-635 Touch.
5.Using a screwdriver, tighten the C7-635 evenly and crosswise from behindin the control cabinet door until the front panel of the C7-635 rests on thecontrol cabinet door. Situate the device so that there is even spacing onall sides between the housing and the cutout section
Question: What is the 0005-4050-400 Siemens C7-635 mebrane switch and shell HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
ES7635-2SB02-0AC00005-4050-40
0005-405-400
0005-4500-400
00O5-4050-400
0005-40500-400
0005--4050-400
