XBTRT500 Magelis Schneider Membrane Keypad Switch
XBTRT500 Magelis Schneider Membrane Keypad Switch

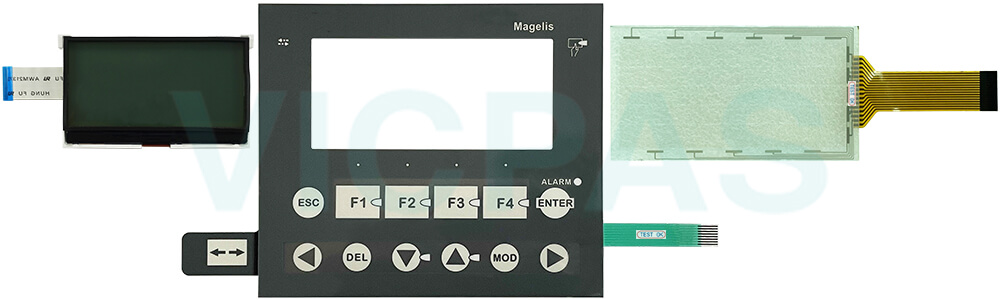

Schneider Magelis HMI XBTRT500 Membrane Keyboard Keypad Repair Part
Order each part separately is available
XBT N and XBT RT500 Keyboard Membrane terminals can be configured for different variants (control and input variant as well as touch variant only for XBT RT500) with the function keys providing different functions in each variant. XBT R terminals, on the other hand, only provide one variant. It is also possible that function keys have different functions in one variant, depending on whether you are only viewing the panels (normal mode) or you are entering values (edition mode).
XBTRT500 Keypad Membrane terminals are delivered with 2 insert label sheets providing the following label types to assign different texts or symbols to the keys:
service key labels
function key labels
touch key labels
blank labels
VICPAS supply XBTRT500 Magelis Schneider Operator Panel Keypad with 365 Days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the XBTRT500 Magelis Schneider Membrane Keyboard Keypad.
| Part Number: | XBTRT500 |
| Display device: | Green backlit LCD |
| Data Entry: | Via keypad |
| Warranty: | 365 Days Warranty |
| Material: | Polyester or Polycarbonate |
| Rated Voltage: | DC 5V 1mA |
| Operating Temp.: | -10℃～+80℃ |
| Storage Temp.: | -20℃～+70℃ |
| Conductive Trace: | Silver or Copper |
| Life Cycle: | 5 Million Cycles(up to) |
Related Magelis Schneider XBT N/R/RT Series Part No. :
| Schneider XBT N/R/RT | Description | Inventory status |
| XBTN200 | Schneider Mgelis XBT N Operator Keyboard Repair | In Stock |
| XBTN400 | Schneider Mgelis XBT N Membrane Keypad Keyboard | In Stock |
| XBTN401 | Magelis HMI XBT N Schneider Keyboard Membrane Replacement | Available Now |
| XBTN410 | Magelis Schneider XBT N Switch Membrane Repair | In Stock |
| XBTNREQ3841G3 | XBT N Schneider Magelis HMI Terminal Keypad | Available Now |
| XBTNU400 | Schneider Magelis XBT N Keyboard Membrane Repair | In Stock |
| XBTPREQ3675G1 | Schneider Terminals Membrane Keypad Keyboard | In Stock |
| XBTR400 | Schneider Magelis XBT R Switch Membrane Repair | In Stock |
| XBTR410 | Schneider XBT R Membrane Keypad Replacement | Available Now |
| XBTR411 | Magelis Schneider XBT R HMI Switch Membrane Repair | Available Now |
| XBTRT500 | Magelis XBT RT Keyboard Membrane Replacement | In Stock |
| XBTRT511 | Schneider Magelis XBT RT HMI Switch Membrane Repair | Available Now |
| Magelis XBT N/R/RT | Description | Inventory status |
Schneider XBT HMI Manuals PDF Download:
FAQ:
Question: How to connect Schneider Magelis XBT RT500 to a PC?
Answer: XBTRT500 terminals can be connected to a PC in 2 different ways:
via the serial port of the PC using the Schneider cable XBT Z945 and the adaptor XBTZRT999
via the USB port of the PC using the Schneider cables XBT Z925 and TSXCUSB485
Connecting XBT RT500 to a serial port of a PC using the Schneider cable XBT Z945 and the adaptor XBT ZRT999
Question: What is the display resolution of XBT RT500 Keyboard Membrane?
Answer: The Schneider Terminal XBT-RT500 Keyboard Membrane Terminal display is 122 x 32 pixels
Common misspellings:
XBTRT50BTRT500
XBTRT5O0
XBTR5T00
XBTTRT500
