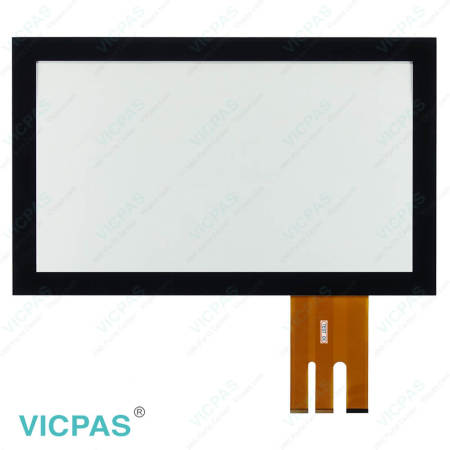

B&R 5AP93D.215C-K01 Touch Digitizer Glass
B&R Automation Panel 900 5AP93D.215C-K01 Touch Panel Repair Replacement
Order each part separately is available
An Automation Panel 900 is connected to the integrated SDL interface (onboard) via an SDL cable. USB devices can only be connected directly to the Automation Panel (i.e. without a hub). Many different peripheral USB devices can be connected to the 2 or 3 USB interfaces on the Automation Panel 900. These can each handle a load of 500 mA. The maximum transfer rate is USB 2.0. Only end devices (not hubs) can be connected to the Automation Panel 900.
Each key or LED can be configured individually and adapted directly to the application. Various B&R tools are available for this purpose:
• B&R Key Editor for Windows operating systems
• Visual Components for Automation Runtime
Keys and LEDs from each device are processed by the matrix controller in a bit sequence of 128 bits each.
The positions of keys and LEDs in the matrix are shown as hardware numbers. These hardware numbers can be read directly from the target system using the B&R Key Editor or the B&R Control Center.
Specifications:
The table below describes the parameters of the 5AP93D.215C-K01 Automation Panel 900 Touchscreen Panel.
| Part Number : | 5AP93D.215C-K01 |
| Product Line: | Automation Panel 900 |
| Screen diagonal | 21.3 in |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Touchscreen |
| Serial interface Type: | RS232 |
| Storage | -20 to 70°C |
Related Automation Panel 900 Series Part No. :
| Automation Panel 900 | Description | Inventory status |
| 5AP920.1906-K27 | B&R Automation Panel 900 Touch Panel Glass Organizer | In Stock |
| 5AP920.1906-K28 | Automation Panel 900 B and R Touch Panel Glass Repair | Available Now |
| 5AP920.1906-K29 | B&R Automation Panel 900 Touch Screen Panel Front Overlay | In Stock |
| 5AP920.1906-K34 | Automation Panel 900 B&R Touch Screen Monitor Replacement | In Stock |
| 5AP92D.1906-00 | B and R Automation Panel 900 Touch Digitizer Replacement | In Stock |
| 5AP92D.1906-01 | Automation Panel 900 B&R HMI Touch Screen Organizer | In Stock |
| 5AP980.1906-K01 | B and R Automation Panel 900 Touch Panel Glass Repair | In Stock |
| 5AP920.2138-01 | Automation Panel 900 B&R HMI Touch Screen Organizer | Available Now |
| 5AP93D.215C-K01 | B and R Automation Panel 900 Touch Screen Hmi Monitor | Available Now |
| 5AP980.215C-K02 | B&R Automation Panel 900 Touch Screen Panel Glass Repair | In Stock |
| B and R AP900 | Description | Inventory status |
B&R Automation Panel 900 Manuals PDF Download:
FAQ:
Question: What causes Automation Panel 900 B&R 5AP93D.215C-K01 screen burn-in?
Answer:
• Static images
• No screensaver
• Sharp transitions in contrast (e.g. black/white)
• High ambient temperatures
• Operation outside of specifications
Question:How can the B&R AP900 5AP93D.215C-K01 service life of the backlight be extended?
Answer:
• By setting the display brightness to the lowest value that is still comfortable for the eyes
• By using dark images
• By reducing the brightness by 50%, which can result in an approximately 50% increase in the half-brightness time
Common misspellings:
5AP9D.215C-K01
5AP93D.25C-K01
5AP93D.215-K01
5AP93D.215C-Ko1
5AP93D.2l5C-K01
