2711P-RDT10C Dispaly Module Touch Screen Protective film

Order each part separately is available

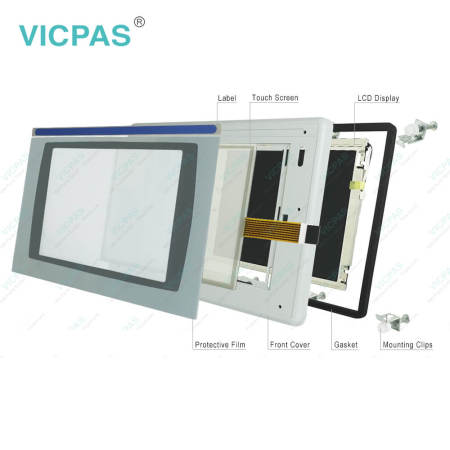

VICPAS supply Panelview Plus 2711P-RDT10C protective film, touchscreen, LCD Display Screen, Housing, Mounting Clips, Label, Gasket for repair replacement, make the HMI running. We provide a 365 days VICPAS warranty of the most product, which include most of touch screen panel, membrane keypad, LCD display and protective case shell housing.

The discontinued Allen Bradley Panelview Plus 2711P-RDT10C is an operator terminal that enables the user to interface with their machine. This Panelview allows the user to connect using FactoryTalk View Machine Edition software and a Ethernet and RS-232 communication port with a 1761-NET-ENI communication cable(s). The user is able to control the HMI using the Touchscreen to input information and data. This unit is powered using 85-264 VAC power. The most common Series are: Series A, B, C, D, E, F, G and the most common firmware is not applicable. EtherNet/IP (Ethernet Industrial Protocol) is an open industrial network that supports real time I/O messaging, as well as message exchange. The Ethernet port connects to a controller on an EtherNet/IP network by using both the network and standard Ethernet connections. This port can work with application transfers and printing as well. The EtherNet/IP screen displays and allows the user to modify some of the EtherNet/IP communication settings for a PanelView terminal. The 2711P-RN20 Ethernet communication module is available for the 700 to 1500 terminals if another Ethernet port is required. The module has its own unique IP address. This port has an RJ45, 10/100Base-T connector for network communication and supports MDI/MDI-X connections. The parameters are downloaded with the application.

AB Panelview Plus Manuals PDF Download:

Common misspellings:

2711PRDT10C

27l1P-RDT10C

271lP-RDT10C

2711P-RDT1OC
