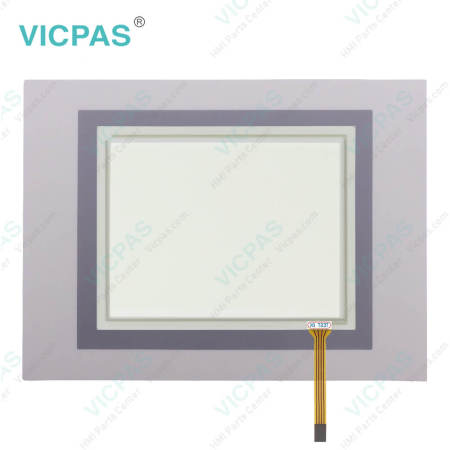

Eaton XVH-330-57MPI-1-10 139868 Eaton Touchscreen Panel

Eaton XVH-330-57MPI-1-10 139868 Eaton Touchscreen Panel

Eaton XVH-330-57MPI-1-10 139868 Eaton Touchscreen Panel
Eaton XVH-330-57MPI-1-10 139868 Eaton Touchscreen PanelEaton XVH-330-57MPI-1-10 139868 Eaton Touchscreen PanelEaton XVH-330-57MPI-1-10 139868 Eaton Touchscreen PanelEaton XVH-330-57MPI-1-10 139868 Eaton Touchscreen PanelEaton XVH-330-57MPI-1-10 139868 Eaton Touchscreen Panel
CategoriesMicro Innovation Panel
BrandVICPAS
ModelXVH-330-57MPI-1-10
BrandEaton
size5.7 inch
Warranty365 Days
Product LineEaton XVH300
SupplyEaton XVH300 Touchscreen and Overlay Repair
ModelXVH-330-57MPI-1-10 139868
PartsTouchscreen Panel Glass Protective Film
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Download
Update TimeNov 22,2024
Detail Information

Micro Innovation AG 139868 XVH-330-57MPI-1-10 Eaton XVH300 Touch Screen Panel, Protective Films Overlay, and LCD Display Repair Replacement

XVH-330-57MPI-1-10 Eaton XVH300 139868 Touch Screen Panel Repair Replacement


The 139868 device is designed for mounting in control cabinets, control panels or control desks. It can be mounted horizontally or vertically. The following requirements must be fulfilled when selecting a suitable mounting position:
1. The device should not be exposed to direct sunlight (Sunlight disturbs the infra-red touch sensor. In addition, when exposed to UV light, plastic parts of the device can embrittle and the lifespan of the device is reduced).
2. If the device is to be used in potentially explosive atmospheres, the device must not be subjected to hazardous knocks.
3. The operating elements on the service side of the device and the cable connections are accessible after the device has been mounted.
4. The ambient conditions stated must be observed. See Chapter 9.9 Ambient conditions,  63.
5. Sufficient ventilation (cooling) must be ensured by means of:
a) Clearance of at least 3 cm to the ventilation slots
b) Clearance of at least 15 cm from heat radiating components such as heavily loaded transformers
c) The expected temperatures should be within the permissible range. See Chapter 9.9 Ambient conditions.
6. Properties of the mounting surfaces:
a) Material thickness at the mounting cutout 2…5 mm
b) Flatness ≤ 0.5 mm
(this requirement must also be fulfilled when the device is mounted!)
c) Surface roughness Rz ≤ 120



  Contact Best Price


Specifications:

The table below describes the parameters of the XVH300 XVH-330-57MPI-1-10 Operator Panel Parts

Part Number : XVH-330-57MPI-1-10
Display Size: 5.7 inches
Warranty: 365 days Warranty
Product Line:Eaton XVH300
Input Type:Touchscreen
Retain Memory: 32kB NVRAM
Operating System: WinCE 5.0 Core(included)
Touch Resistive


Related Eaton XVH300 Terminals Part No. :

Eaton XVH300 HMI Description Inventory status
XVH-330-57BAS-1-10 XVH-330-57BAS-1-10 139866 Eaton Touch Screen Glass Overlay In Stock
XVH-330-57CAN-1-10 Micro Innovation Eaton XVH-330-57CAN-1-10 139867 Protective Film In Stock
XVH-330-57MPI-1-10 HMI Panel Glass XVH-330-57MPI-1-10 139868 Eaton Front Overlay Available Now
Eaton Micro Panel XVH300 Description Inventory status

Eaton Manuals PDF Download:

Touch Panel HMI-PLC XVH-330-57MPI-1-10 Product Guide
  • Eaton XVH300 MICRO PANEL Operating Instructions
  • Eaton HMI Catalog
  • XVH-330-57MPI-1-10 139868 Communications User Manual


  • FAQ:

    Question: What is the size of XVH-330-57MPI-1-10 Toucshcreen Panel Glass?

    Answer:The XVH-330-57MPI-1-10 139868 Touch Screen Panel is 5.7-inch.


    Question: What is the Eaton XVH-330-57MPI-1-10 139868 HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.


    Common misspellings:

    XVH-330-57MPI-1-l0
    XVH-330-57MPI-l-10
    XVH-33o-57MPI-1-10
    XVH-330-57MPI-1-1O
