2711-K9A12 PanelView 900 Membrane Keyboard Keypad Repair

Order each part separately is available

The Panelview 2711-K9A12 Keypad Interface comes with a DH-485 communication port that allows connection to a DH-485 network, a Wallmount Power Supply (Cat. No. 1747-NP1), an SLC controller (point-to-point/ multiple), or a MicroLogix controller. It has the default settings of 31 for the max node address, 2 for the node address, and 19200 for the communication rate. To change the communication settings for this PanelView 2711-K9C1 Terminal, go to the Configuration Mode menu.

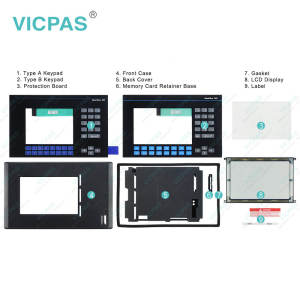

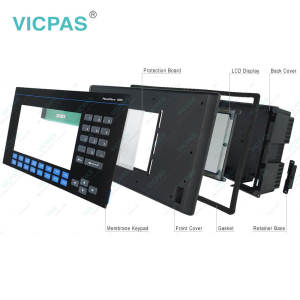

VICPAS supply Allen Bradley Panelview 900 2711-K9A12 membrane keyboard switch, Protection Board, HMI Case, LCD Display Screen, Memory Card Retainer Base, Gasket, Sticker for repair replacement, make the HMI running. We provide a 1-year warranty of the most product, which include most of touch screen panel, membrane keypad, Protection Board, Plastic Case, LCD Display, Gasket, Memory Card Retainer Base, Sticker.

Do not connect the 2711-K9A12 Terminal to an AC power source. For safety, the terminal should have its own branch conduit, and the power and signal units should be wired separately. When power is applied or the terminal is reset, the 2711-K9A12 runs a series of self-tests. Check the signals from the FAULT Status (red) and the COMM Status (green) indicators to make sure there is no problem with the firmware, hardware, or communication.
