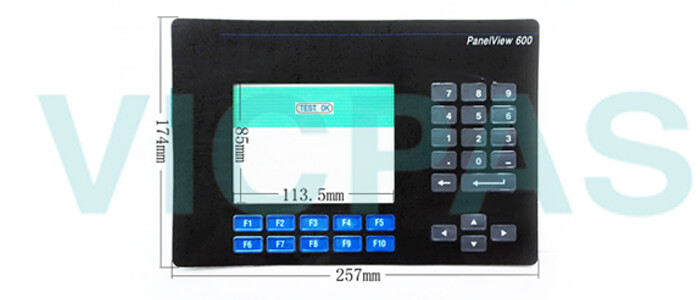

2711-K6C12 PanelView 600 Membrane Keypad Keyboard

Order each part separately is available

VICPAS supply Allen Bradley Panelview 600 2711-K6C12 membrane keypad, Protection Board, Plastic Case, LCD Display, Gasket, Memory Card Retainer Base to replace, make the HMI running. We provide a 1-year warranty of the most product, which include most of touch screen panel, membrane keypad, Protection Board, Plastic Cover Body, Memory Card Retainer Base, LCD Screen, Gasket.

The discontinued Allen Bradley Panelview 600 2711-K6C12 is an operator terminal that enables the user to interface with their machine. This HMI has a 5 in. Color Display. This Panelview allows the user to connect using Panelbuilder 32 software and a Profibus and RS-232 Printer communication port with a 2711-NC14 communication cable(s). The user is able to control the HMI using the Keypad to input information and data. This unit is powered using 85-264 VAC power. This unit has the following internal memory: 240 KB. If applicable this unit has an internal backlight replacement part number of 2711-NL3.

The approximate shipping weight and dimensions are 6 lbs. and 14 x 11 x 8 in. The most common Series are: A, B, C, D, E, F, G, H, I, J, K, and L and the most common firmware include 1.00-4.48. The Profibus Terminal communicates using the Profibus DP standard for high-speed (up to 1.5M baud) data transmission to Siemens® and other controllers that support the Profibus DP protocol. Profibus is a non-Rockwell Automation network that uses the polling principle for communication. It is a remote I/O protocol consisting of a DP Master(s) and DP slave(s). The terminals act as slaves on a Profibus DP network. As a slave on the Panelview Profibus network, it responds to data requests and implements a defined set of functions. Application files can be downloaded or uploaded directly with PanelBuilder32 using the on-board RS-232 printer port or using a PC memory card.
