2711-B5A3 Touch Screen Panel Membrane Keypad Switch

2711-B5A3 Touch Screen Panel Membrane Keypad Switch

2711-B5A3 Touch Screen Panel Membrane Keypad Switch
2711-B5A3 Touch Screen Panel Membrane Keypad Switch2711-B5A3 Touch Screen Panel Membrane Keypad Switch2711-B5A3 Touch Screen Panel Membrane Keypad Switch2711-B5A3 Touch Screen Panel Membrane Keypad Switch2711-B5A3 Touch Screen Panel Membrane Keypad Switch
CategoriesPanelview 550
BrandVICPAS
Model2711-B5A3
BrandAllen Bradley
Warranty365 Days
Product LinePanelView 550
Size5.5 Inch
Shipping2-4 workdays
Parts2711-B5A3 Touch Screen Membrane Keypad
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download
Update TimeNov 22,2024
Detail Information

2711-B5A3 PanelView 550 Touch Screen Panel Membrane Keypad Switch LCD Display Plastic Case Cover Repair Replacement

Order each part separately is available

 2711-B5A3 PanelView 550 Touch Screen Panel, Membrane Keypad Switch, LCD Display Panel, Housing, Gasket, Memory Card Retainer Base, Sticker, Screws, Case Accessories Repair Replacement

The 2711-B5A3 unit by Allen Bradley is an obsolete Operator Terminal Panelview, primarily applied to HMI operations (Human Module Interface), to allow the user to interface smoothly with a machine, and to input commands and data with ease. Its LCD blue monochrome display screen is 5.5 inches diagonally and doubles as a touchscreen for a wide range of user interface purposes. Additionally, the 2711-B5A3 Panelview has a keypad input as well as the touchscreen input, with a numeric keypad and function buttons ranging from F1 to F10 for extended user input. Its backlight lasts for around 100,000 hours on average, and when necessary, may be replaced by a 2711-NL1 backlight replacement part.


The 2711-NL1 has a number of additional features, including a clock which is battery-backed and will timestamp the user’s essential data, along with ATA memory card support, a stainless steel membrane (domed) keypad, and an operative temperature range as high as 131 degrees Fahrenheit and as low as freezing point (32 degrees Fahrenheit.


VICPAS supply 2711-B5A3 teach pendant parts, touchscreen glass, membrane keyboard switch, LCD display, Memory Card Retainer Base, Gasket, Sticker, Screws, Case Accessories and protective case shell housing. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.


With Panelbuilder 32 software as its primary software, the 2711-B5A3 provides a user-friendly setup and operation. It contains two ports; a DH-485 port for communication purposes, and an RS-232 Printer port. Both of these ports will require a 1747-C10 communication cable or cables for connection with a network.


This module operates on 120 to 240 Volts of AC power. It contains up to 170 kilobytes of application runtime memory and has the series options of A, B, C, D, E, F, G, or H. It has a variety of firmware options as well, including firmware revisions 1.00 through 4.48. The 2711-B5A3 measures around 14 x 11 x 8 inches (355.6 x 279.4 x 203.2 millimeters) and weighs no more than 6 pounds (2.7 kilograms) when being shipped. This module is C-UL and UL certified, and CE marked for Class 1 zone 2, Class 2 Division 2, and Class 3 Division 2.





Specifications:

The table below describes the parameters of the 2711-B5A3 PanelView 550 Touchscreen Panel Glass keypad switch.

Part Number : 2711-B5A3
Product Line: PanelView 550
Screen diagonal 5.5 in
Warranty: 365 Days Warranty
Input Power 24 VDC
Software: Panelbuilder 32
Mounting position: vertical
Input Type: Touchscreen with Keypad
Communication: Remote I/O and RS-232 Printer Port
Firmware 4.00-4.48


Related PanelView 550 Series Part No. :

PanelView 550 HMI Description Inventory status
2711-B5A1 PanelView 550 Membrane Keypad Touchscreen In Stock
2711-B5A10 PanelView 550 Membrane Keyboard Touch Panel Available Now
2711-B5A10L1 Allen Bradley PanelView 550 Touch Screen Keypad Switch In Stock
2711-B5A12 PanelView 550 Keypad Membrane Touch Screen Glass Available Now
2711-B5A12L1 Allen Bradley Panel View 550 Touch Screen Membrane Keypad Switch In Stock
2711-B5A14 Allen Bradley Panel View 550 Touch Screen Membrane Keypad Switch In Stock
2711-B5A14L1 PanelView 550 Allen Bradley Touch Screen Membrane Keyboard In Stock
2711-B5A15 PanelView 550 Membrane Keypad Touchscreen In Stock
2711-B5A15L1 PanelView 550 Membrane Keyboard Touch Panel Available Now
2711-B5A16 Allen Bradley PanelView 550 Touch Screen Keypad Switch In Stock
2711-B5A16L1 PanelView 550 Keypad Membrane Touch Screen Glass Available Now
2711-B5A1L1 Allen Bradley Panel View 550 Touch Screen Membrane Keypad Switch In Stock
2711-B5A2 PanelView 550 Allen Bradley Touch Screen Membrane Keyboard In Stock
2711-B5A20 PanelView 550 Membrane Keypad Touchscreen In Stock
2711-B5A20L1 PanelView 550 Membrane Keyboard Touch Panel Available Now
2711-B5A2L1 Allen Bradley PanelView 550 Touch Screen Keypad Switch In Stock
2711-B5A3 PanelView 550 Keypad Membrane Touch Screen Glass Available Now
2711-B5A3L1 Allen Bradley Panel View 550 Touch Screen Membrane Keypad Switch In Stock
2711-B5A5 PanelView 550 Allen Bradley Touch Screen Membrane Keyboard In Stock
2711-B5A5L1 PanelView 550 Membrane Keypad Touchscreen In Stock
2711-B5A8 PanelView 550 Membrane Keyboard Touch Panel Available Now
2711-B5A8L1 Allen Bradley PanelView 550 Touch Screen Keypad Switch In Stock
2711-B5A9 PanelView 550 Keypad Membrane Touch Screen Glass Available Now
2711-B5A9L1 Allen Bradley Panel View 550 Touch Screen Membrane Keypad Switch In Stock
Allen Bradley PanelView 550 Description Inventory status

FAQ:

Question: What is the common firmware for 2711-B5A3 Allen Bradley Panelview 500?

Answer: The most common firmware of 2711-B5A3 is 1.00-4.48.

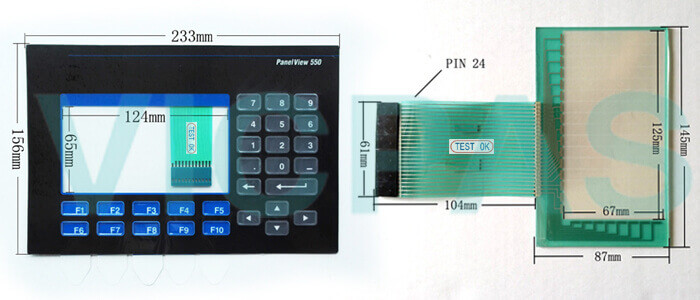

Question: What are the dimensions of the 2711-B5A3 Panelview 550 touch screen panel glass?

Answer: The 2711-B5A3 touchscreen dimensions is 137mm x 86mm.


Question: What type of input does the 2711-B5A3 have?

Answer: The input type of 2711-B5A3 is both keypad and touchscreen.


Question: How long does this unit’s backlight last?

Answer: This unit’s backlight has an average lifespan of 100,000 hours.


Question: Is the internal backlight of the display replaceable?

Answer: Yes, the 2711-B5A3 terminal has a replaceable internal backlight. The replacement part number is 2711-NL1.


Question: What is the 2711-B5A3 PanelView 550 touchscreen panel price?

Answer: Submit a fast quote, send VICPAS an email for best price.
