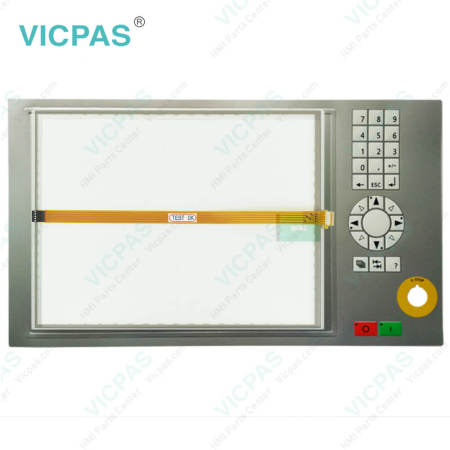

Membrane keyboard for 5AP980.1505-K01 membrane keypad switch
Membrane keyboard for 5AP980.1505-K01 membrane keypad switch
![Membrane keyboard for 5AP980.1505-K01 membrane keypad switch](https://icdn.tradew.com/file/201606/1569362/jpg/7448959.jpg?x-oss-process=image/resize,m_pad,l_450/quality,Q_90)
![Membrane keyboard for 5AP980.1505-K01 membrane keypad switch](https://icdn.tradew.com/file/201606/1569362/jpg/7448959.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![Membrane keyboard for 5AP980.1505-K01 membrane keypad switch](https://icdn.tradew.com/file/201606/1569362/jpg/7448958.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![Membrane keyboard for 5AP980.1505-K01 membrane keypad switch](https://icdn.tradew.com/file/201606/1569362/jpg/7448940.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![Membrane keyboard for 5AP980.1505-K01 membrane keypad switch](https://icdn.tradew.com/file/201606/1569362/jpg/7448939.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![Membrane keyboard for 5AP980.1505-K01 membrane keypad switch](https://icdn.tradew.com/file/201606/1569362/jpg/7448964.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
B&R Automation Panel 900 5AP980.1505-K01 Keyboard Membrane Touch Screen Glass Repair Replacement
Order each part separately is available
![Automation Panel 900 5AP980.1505-K01 Membrane Keypad Keyboard Touch Screen Panel HMI Touch Glass Automation Panel 900 5AP980.1505-K01 Membrane Keypad Keyboard Touch Screen Panel HMI Touch Glass](https://icdn.tradew.com/file/201606/1569362/jpg/7448965.jpg?x-oss-process=image/quality,Q_90)
An Automation Panel 900 with max. SXGA resolution is connected to the integrated DVI interface (onboard). As an alternative, an office TFT with a DVI interface or analog monitor (using adapter 5AC900.1000-00) can also be used. A separate cable is used for both the touch screen and USB data. If USB devices are to be operated on the Automation Panel 900, the maximum distance is 5 meters. USB devices can only be connected directly to the Automation Panel (i.e. without a hub).
The following device families can be connected to the B&R Automation Panel 900 5AP980.1505-K01:
• Automation PC 510
• Automation PC 511
• Automation PC 620
• Automation PC 810
• Automation PC 820
• Automation PC 910
• Panel PC 700
• Panel PC 800
• Power Panel 500
Specifications:
The table below describes the parameters of the 5AP980.1505-K01 Terminal Keypad Automation Panel 900 Keyboard Membrane Touchscreen Panel.
Part Number : | 5AP980.1505-K01 |
Product Line: | Automation Panel 900 |
Screen diagonal | 15 in |
Warranty: | 365 Days Warranty |
Input Power | 24 VDC |
Display Type: | TFT color |
Mounting position: | Vertical |
Input Type: | keypad |
Serial interface Type: | RS232 |
Storage | -20 to 70°C |
Related Automation Panel 900 Series Part No. :
Automation Panel 900 | Description | Inventory status |
5AP980.1505-01 | B&R Automation Panel 900 Touch Screen Panel Glass Repair | In Stock |
5AP980.1505-B10 | B&R Automation Panel 900 Touch Panel Glass Organizer | In Stock |
5AP980.1505-K01 | B&R Automation Panel 900 Touch Screen Panel Terminal Keypad | In Stock |
5AP980.1505-K08 | Automation Panel 900 B&R Touch Screen Monitor Replacement | In Stock |
5AP980.1505-K09 | B and R Automation Panel 900 Touch Digitizer Keyboard Membrane | In Stock |
5AP980.1505-K11 | Automation Panel 900 B&R HMI Touch Screen Organizer | In Stock |
5AP980.1505-K30 | B and R Automation Panel 900 Touch Panel Glass Repair | In Stock |
5AP980.1505-K31 | Automation Panel 900 B&R HMI Touch Screen Organizer | Available Now |
5AP981.1505-01 | Automation Panel 900 B and R Touch Panel Glass Repair | Available Now |
5AP920.1706-01 | B and R Automation Panel 900 Touch Screen Hmi Monitor | Available Now |
B and R AP900 | Description | Inventory status |
B&R Automation Panel 900 Manuals PDF Download:
FAQ:
Question:What are the functions of B&R Automation Device Interface (ADI) - Control Center?
Answer: The functions provided by the Automation Device Interface (ADI) - Control Center vary according to the device series.
To carry out a firmware upgrade, the following steps should be taken:
• Changing display-specific parameters
• Reading device-specific keys
• Updating the key configuration
• Enabling device-specific LEDs on a membrane keypad or keys
•Reading and calibrating control devices (e.g. key switches, handwheels, joysticks, potentiometers)
• Reading temperatures, fan speeds, statistical data and switch settings
• Reading operating hours (power-on hours)
• Reading user and factory settings
• Reading software versions
• Updating and backing up BIOS and firmware
• Creating reports about the current system (support assistance)
• Setting the SDL equalizer value when adjusting SDL cables
• Changing the user serial ID
Question:How can Automation Panel 900 5AP980.1505-K01 screen burn-in be avoided?
Answer:
• By constantly changing between static and dynamic images
• By avoiding excessive brightness differences between foreground and background elements
• By using colors with similar brightness
• By using complementary colors in follow-up images
• By using a screensaver
Common misspellings:
5AP90.1505-K01
5AP980.155-K01
5AP890.1505-K01
5AP980.15o5-K01
5AP980.l505-K01
