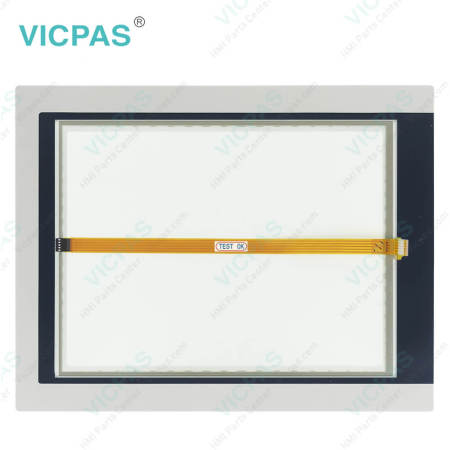

PP400 4PP420.1505-B5 B&R Protective Film Touch Panel
PP400 4PP420.1505-B5 B&R Protective Film Touch Panel
B&R Power Panel 400 4PP420.1505-B5 Front Overlay Touch Screen Panel Repair Replacement
Order each part separately is available
4PP420.1505-B5 BIOS stands for "Basic Input Output System". It is the most basic standardized communication between the user and the system (hardware). A B&R-modified BIOS from Insyde is used in the Power Panel devices. BIOS setup lets you modify basic system configuration settings. These settings are saved in CMOS RAM. The CMOS RAM is a nonvolatile, battery-backed memory that retains information when power is not applied to the Power Panel. BIOS is immediately activated when switching on the power supply of the Power Panel. BIOS reads the system configuration information in CMOS RAM, checks the system, and configures it using the power-on self-test (POST).
VICPAS supply B and R Power Panel 400 4PP420.1505-B5 touchscreen panel and protective film for repair replacement, make the HMI running. We provide a 365 days VICPAS warranty of the most product, which include most of touch screen panel, membrane keypad, protective film, LCD display and protective case shell housing.
The Power Panel 300/400 devices have a USB 2.0 (Universal Serial Bus) host controller with multiple USB ports, two of which are on the outside for easy user access. Power Panel devices are equipped with 2 hex switches that serve as operating mode switches. Switch positions 01 to FD are available for any purpose in an application and can be evaluated by the application program. Due to the complete ATX power supply support, the power button serves a number of functions, which can be configured in BIOS setup.
Specifications:
The table below describes the parameters of the 4PP420.1505-B5 Power Panel 400 Touchscreen Panel Front Overlay.
| Part Number : | 4PP420.1505-B5 |
| Product Line: | Power Panel 400 |
| Screen diagonal | 15 in |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Touchscreen |
| Serial interface Type: | RS232 |
| Storage | -20 to 70°C |
Related Power Panel 400 Series Part No. :
| B&R Power Panel 400 | Description | Inventory status |
| 4PP420-0571-45 | B&R Power Panel 400 Touch Screen Panel Glass Protective Film | In Stock |
| 4PP420-0571-65 | Power Panel 400 Touch Panel Glass Front Overlay Replacement | Available Now |
| 4PP420-0571-75 | B&R Power Panel 400 Touch Screen Panel Front Overlay Repair Kit | In Stock |
| 4PP420-0571-A5 | B and R Power Panel 400 Touch Digitizer Overlay Replacement | In Stock |
| 4PP420-0571-B5 | Power Panel 400 HMI Touch Screen Organizer Protective Film | In Stock |
| 4PP420-0573-75 | Power Panel 400 Touch Panel Protective Film Overlay Repair | In Stock |
| 4PP480-1043-73 | Power Panel 400 B&R HMI Touch Screen Front Overlay | Available Now |
| 4PP420-1505-75 | Power Panel 400 B&R Overlay Touch Screen Monitor | In Stock |
| 4PP420-1505-B5 | B and R Power Panel 400 Front Overlay Touch Screen Hmi | Available Now |
| 4PP480-1505-75 | B&R Power Panel 400 Touch Panel Glass Protective Film | In Stock |
| 4PP480-1505-B5 | B&R Power Panel 400 Protecetive Film Touch Screen | In Stock |
| B and R PP400 | Description | Inventory status |
B&R Power Panel 400 Manuals PDF Download:
FAQ:
Question: What measures can be taken against preventing after-image effect in B&R Power Panel 400 4PP420.1505-B5 LCD/TFT monitors?
Answer: There is no total solution; however, measures can be taken to significantly reduce this effect:
• Avoid static pictures or screen content
• Use screen savers (moving) when the display is not in use
• Frequent picture change
• Shut off the display when not in use
Turning off the background lighting (backlight) does not influence the prevention of the afterimage effect.
Question: What is the procedure of creating a bootable USB flash drive for B&R 4PP420.1505-B5 upgrade files?
Answer:
• Connect the USB flash drive to the PC.
• If the drive list is not refreshed automatically, the list must be updated using the command Drives > Refresh.
• Mark the desired USB flash drive in the drive list.
• Change to the Action tab and select Install a B&R Update to a USB flash drive as type of action.
• Enter the path to the MS-DOS operating system files. If the files are part of a ZIP archive, then click on the button By ZIP file.... If the files are stored in a directory on the hard drive, then click on the button By folder....
• In the B&R Upgrade text box, it's also possible to enter the path to the ZIP file for the B&R Upgrade Disk and select the file.
• Click on the Start action button in the toolbar.
Question: What is the B&R Power Panel 4PP420.1505-B5 touch screen panel price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
4PP420.1505-5
4PP420.1505-85
4PP420.15O5-B5
4PP420.l505-B5
4PP420.15055-B5
