MTP1000 Unified Comfort Panel 6AV2128-3KB40-0AX0 Touchpad
MTP1000 Unified Comfort Panel 6AV2128-3KB40-0AX0 Touchpad

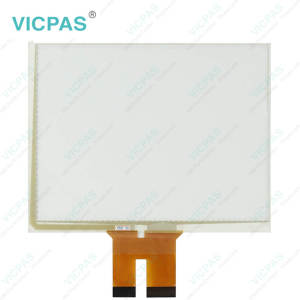

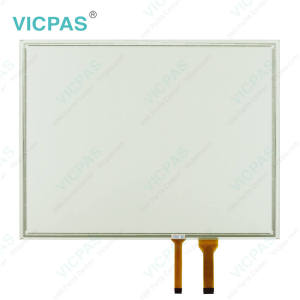

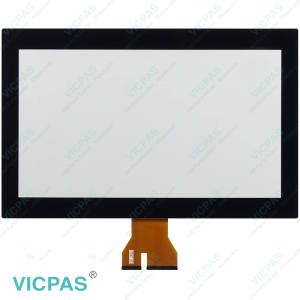

SIMATIC HMI MTP1000 Unified Comfort Panel 6AV2128-3KB40-0AX0 Touch Panel Replacement
Order each part separately is available
Warnings
The device constitutes open equipment on the back side
The device constitutes open equipment on the back side. This means that you must integrate the device in an enclosure or cabinet where the device is operated via its front side with Siemens MTP1000 6AV2128-3KB40-0AX0 Touchscreen. The enclosure or the cabinet must provide protection for Simatic 6AV2 128-3KB40-0AX0 Touch Screen Glass against electric shock and the spread of fire. The enclosure or the cabinet must meet the requirements for mechanical strength and the degree of protection for MTP1000 6AV21283KB400AX0 Touch Digitizer Glass. Access to the enclosure or cabinet in which the device is installed should only be possible by means of a key or tool and only for qualified personnel.
Electrocution risk when control cabinet is open
When you open the control cabinet, there may be a dangerous voltage at certain areas or Siemens 6AV21283KB400AX0 Touch Screen Panel. Touching these areas or components can cause electrocution. Disconnect the cabinet from the mains before opening it. Do not plug in or pull out plant components during operation.
The device must only be used in machines which comply with the Machinery Directive
The Machinery Directive specifies precautions to be taken when commissioning and operating machinery within the European Economic Area. Failure to follow these precautions is a breach of the Machinery Directive. Such failure may also cause personal injury and damage 6AV21283KB400AX0 Touch Membrane. The machine in which the HMI device is to be operated must conform to Directive 2006/42/EC.
Specifications:
The table below describes the parameters of the Siemens 6AV2 128-3KB40-0AX0 Touch Screen Monitor HMI Parts.
| Warranty: | 365 Days |
| Relative Humidity: | 90% |
| Part Number: | 6AV2128-3KB40-0AX0 |
| Product Line: | Unified Comfort Panel |
| Brand: | Siemens |
| Touch Size: | 10.1" |
| Display Type: | TFT Color LCD |
| Resolution: | 1280 x 800 Pixels |
| Front Panel: | IP69 |
| Environment: | Free From Corrosive Gases |
Related SIMATIC HMI MTP Series HMI Part No. :
| SIMATIC MTP HMI | Description | Inventory status |
| 6AV2128-3MB57-0BX0 | SIMATIC HMI MTP1200 PRO HMI Touch Membrane Repair | In Stock |
| 6AV2128-3MB57-1BX0 | SIMATIC HMI MTP1200 PRO Touch Screen Glass Replacement | In Stock |
| 6AV2128-3MB70-0AX0 | SIMATIC HMI MTP1200 Unified Comfort Panel Touch Digitizer Glass Repair | Available Now |
| 6AV2128-3QB06-0AX0 | SIMATIC HMI MTP1500 Unified Comfort Panel HMI Panel Glass Replacement | Available Now |
| 6AV2128-3QB06-0AX1 | SIMATIC HMI MTP700 Unified Comfort Panel Touch Screen Monitor Repair | In Stock |
| 6AV2128-3QB27-0AX0 | SIMATIC HMI MTP1500 PRO MMI Touch Screen Replacement | In Stock |
| 6AV2128-3QB27-0BX0 | SIMATIC HMI MTP1500 PRO HMI Touch Screen Panel Repair | Available Now |
| 6AV2128-3QB27-1BX0 | SIMATIC HMI MTP1500 PRO Touchscreen Panel Glass Repair | In Stock |
| 6AV2128-3QB36-0AX0 | SIMATIC HMI MTP1500 Unified Comfort Panel Touch Screen Glass Replacement | Available Now |
| 6AV2128-3QB36-0AX1 | SIMATIC HMI MTP1500 Unified Comfort Panel Touch Digitizer Repair | In Stock |
| 6AV2128-3QB40-0AX0 | SIMATIC HMI MTP1500 Unified Comfort Panel Touch Screen Replacement | In Stock |
| 6AV2128-3QB57-0AX0 | SIMATIC HMI MTP1500 PRO Touch Screen Panel Repair | In Stock |
| 6AV2128-3QB57-0BX0 | SIMATIC HMI MTP1500 PRO MMI Touch Membrane Replacement | Available Now |
| 6AV2128-3QB57-1BX0 | SIMATIC HMI MTP1500 PRO HMI Touch Glass Repair | In Stock |
| 6AV2128-3QB70-0AX0 | SIMATIC HMI MTP1500 Unified Comfort Panel Series Touch Digitizer Replacement | Available Now |
| SIMATIC MTP HMI | Description | Inventory status |
SIMATIC HMI Unified Comfort Panel HMI Manuals PDF Download:
FAQ:
Question: What are the dimensions of Siemens MTP1000 Series?
Answer:
Question: How to commission the HMI device?
Answer: The following procedure describes how to typically include the HMI device during operation.
1. If you want to use the service concept with automatic backup, then insert a SIMATIC SD memory card ≥ 32 GB into the "X50 SYSTEM" slot.
Activate the automatic backup in the Control Panel under "Service and Commissioning" > "Automatic Backup" via the "Start" button.
2. Configure the HMI device in WinCC. When configuring, consider your security concept in the security settings. Configure a user administration. Define a user with the "Control Panel access" function right who can protect the HMI device against unauthorized access to the Control Panel.
3. Make sure that the network address of the HMI device corresponds to the configured network address.
4. Transfer your project including user administration via WinCC from the configuration PC to the HMI device.
5. If necessary, have the Control Panel protected against unauthorized access by an HMI device administrator under "Security" > "Control panel access".
6. Check the authorizations of the operators in the Control Panel under "Security" > "User management" and adjust the settings if necessary.
7. If necessary, deactivate one or more interfaces for storage media under "Devices And Input" > "Hardware interfaces".
8. Check date and time under "Language, Region and Formats" > "Date and time".
9. Set the required delay time for the start of the project under "Runtime Properties" > "Automatic runtime start".
10. Check in the Control Panel under "Apps" whether all apps required for the operation are available.
If additional apps are required, then install these via "Apps" > "App Management".
Common misspellings:
6AV218-3KB40-AX06AV2128-3KB40-0AAX0
6AV2218-3KB40-0AX0
6AV2128-3KB4-0AX0
6AV2128-33KB40-0AX0
