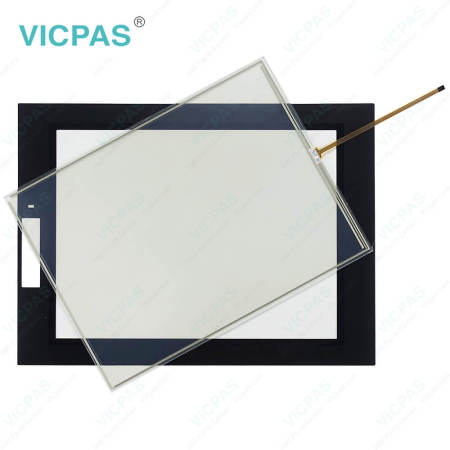

Keyence VT3-X15 Front Overlay Touch Screen Repair

Keyence VT3-X15 Front Overlay Touch Screen Repair

Keyence VT3-X15 Front Overlay Touch Screen Repair
Keyence VT3-X15 Front Overlay Touch Screen RepairKeyence VT3-X15 Front Overlay Touch Screen RepairKeyence VT3-X15 Front Overlay Touch Screen RepairKeyence VT3-X15 Front Overlay Touch Screen RepairKeyence VT3-X15 Front Overlay Touch Screen Repair
CategoriesKeyence
BrandVICPAS
ModelVT3-X15
Warranty365 Days
Shipping2-4 workdays
BrandKeyence
Supply PartsVT3-X15 Protective Film Touchscreen Panel
Display Size10 inches
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, T/T ,Credit Card, Western Union
Update TimeDec 23,2024
Detail Information

Keyence VT3-X15 Protective Film HMI Panel Glass Replacement

Order each part separately is available

Keyence VT3 Series HMI Parts VT3-X15 Touch Screen Monitor Front Overlay for repair replacement

General Precautions
• Do not use VT3-X15 Touchscreen Glass Protective Film VT3 product for the purpose to protect a human body or a part of human body.
• VT3-X15 Front Overlay Touch Digitizer VT3 product is not intended for use as explosion-proof product. Do not use this product in hazardous location and/or potentially explosive atmosphere.
• At startup and during operation, be sure to monitor the functions and performance of the VT3-X15 Touchscreen Front Overlay VT3 Product.
• We recommend that you take substantial safety measures to avoid any damage in the event that a problem occurs.
• Do not modify the VT3 Product or use it in any way other than described in the specifications. The functions and performance of products used or modified in this way cannot be assured.
• When VT3-X15 Touch Panel Protective Film VT3 Product is used in combination with other instruments, functions and performance may be degraded, depending on operating conditions and the surrounding environment.
• The rapid variation of temperature is not allowed in all equipment including external devices. Doing so might cause condensation which may cause the instrument or device to malfunction.
• Please keep the cable away from high-voltage lines or electricity transmission lines as practically as possible. Noise from power lines and high-voltage lines may cause the Product to malfunction.
• Fine dots (black dots or bright dots), color changes from outside view, uneven brightness, blinking or cross talk (appearance of unintended lines or stripes) can occur on the LCD panel. However, these are not defective or trouble products.
• Do not continuously display the same screen for a long time. Doing so might cause a residual image to appear due to the characteristics of the LCD panel.



Specifications:

The table below describes the parameters of the Keyence VT3 VT3-X15 Touch Digitizer Protective Film HMI Parts.

Brand: Keyence
Product Line: Keyence VT3
Resolution: 1024 × 768 pixels
Warranty: 1-Year Warranty
Touchscreen: Resistive
Power consumption: 110 VA or less
Display Type: STN color LCD
Rated voltage: AC100to240 V±10%50/60Hz
Storage Temp.: -10 to +60°C
Transport Temp.: 0 to +50°C


Related Keyence VT3 Series No. :

Keyence VT3 HMI Description Inventory status
VT3-Q5HG Keyence VT3 Series Touch Screen Front Overlay Repair In Stock
VT3-Q5M Keyence VT3 Series Protective Film Touch Panel Replacement Available Now
VT3-Q5MW Keyence VT3 Series Touch Digitizer Front Overlay Repair In Stock
VT3-Q5S Keyence VT3 Series Protective Film HMI Touch Screen Replacement In Stock
VT3-Q5SW Keyence VT3 Series Front Overlay HMI Panel Glass Repair Available Now
VT3-Q5T Keyence VT3 Series Touch Membrane Protective Film Replacement In Stock
VT3-Q5TW Keyence VT3 Series Touchscreen Glass Front Overlay Repair Available Now
VT3-S10 Keyence VT3 Series Protective Film Touch Panel Replacement In Stock
VT3-S10B Keyence VT3 Series Front Overlay HMI Touch Glass Repair Available Now
VT3-S12 Keyence VT3 Series Touch Screen Protective Film Replacement In Stock
VT3-S12D Keyence VT3 Series Front Overlay Touch Digitizer Repair In Stock
VT3-V7 Keyence VT3 Series Protective Film Touch Membrane Replacement In Stock
Keyence VT3 Series Description Inventory status

Keyence VT3 Series HMI Manuals PDF Download:

  • VT3 Series Hardware Manual
  • VT3-V6H_Datasheet
  • VT3-V7 Datasheet
  • VT3-V8_Datasheet

  • FAQ:

    Question: What are the precautions to observe during grounding Keyence VT3 VT3-X15?

    Answer:
    • The ground terminal of VT3-X15/S12/S10/V10 and shielding wire of the VT3-V6H(G)/Q5H(G),VT-T1,VT3-V7R switch unit(VT3-SW4/SW6)should be separately grounded. D-type grounding (third grounding)is used, with a grounding resistance below 100Ω.
    • If an exclusive ground cannot be obtained, share the ground with another device.
    • Use a cable of nominal cross-section 2mm or thicker as the grounding cable.
    • Keep the grounding point as close as possible to the VT3, and keep the ground lead as short as possible.
    • If the ground lead must be extended, use thick insulating cable and pass the ground lead through a duct before grounding.
    • In VT3-V6H(G)/Q5H(G), if FG1 (power panel shielding)and FG2(RS-232/422 shielding)exist on the connecting cable, grounding must be made separately.
    • In VT-T1, shielding wire must be used on the terminal block (button switch/start switch/functional switch connection)and Ethernet port, and must be grounded.
    • The shielding wire of the VT3-V7R Main Unit cable should be grounded at the power FG terminal.


    Question: What determines PL (performance level) and categories of Keyence VT3 product?

    Answer: PL (performance level), category supported by Touch Panel Display VT3 Hand-Held Series are determined by whether emergency stop button switch (OP-87171), start switch, and relay terminal block unit with removable function (VT-T1) etc optional parts are used for safety function.

    Common misspellings:

    T3-X15
    VT3-15
    VT3--X15
    V3T-X15
    VT3-1X5
